BMPH-400-H4-S-F : Dynamic LSHT Motor, 390cc, 155RPM, 3186in-lb, 1450psi Differential, 15.85GPM, SAE A 4-Bolt Mount, 6-Tooth Shaft, Side Ported, Manifold

Save $244.01
Dynamic Fluid ComponentsSKU: BMPH-400-H4-S-F
6-8 Weeks

Price:
Sale price$235.99 Regular price$480.00

Product Details

Data Sheet Download Datasheet
Usually Ships Within 6-8 Weeks
Factory Location West Union, South Carolina
Port Size Manifold
Shaft Size 6-Tooth
Shaft Type Spline
Port Location Side Ported
Flow Rating 15.85
Pressure Rating 1450
Displacement 390
Max Speed 155
Service Parts BMPH Seal Kit
Country of Manufacture China
Height 3.28
Length 7.32
Width 3.28
Weight 17.75

Description

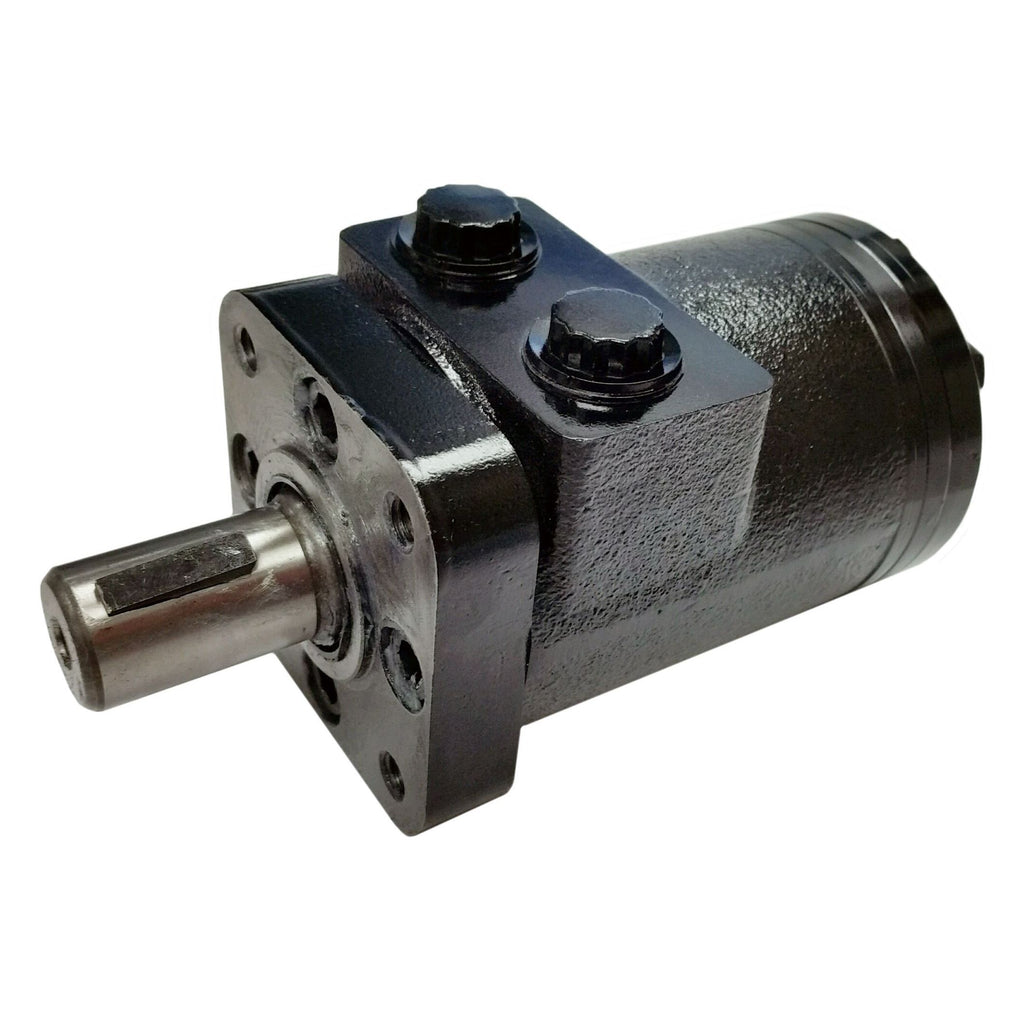

The BMPH Rotortorc gear set, shaft distribution fl ow, hydraulic motor is a compact, highly efficient, low speed-high torque design which can be used in either parallel or series systems. These low weight advanced construction design motors are manufactured in accordance with the requirements of the ISO 9000-2000 quality system.
