Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | A-BBOLT |
| Country of Manufacture | Italy |
| Height | 1.5 |
| Length | 2.72 |
| Width | 1.5 |
| Weight | 0.76 |
| Side 2 Gender | Bolt |
| Side 2 Size | 1-11 (-16) |
| Side 2 Type | BSPP |
Description

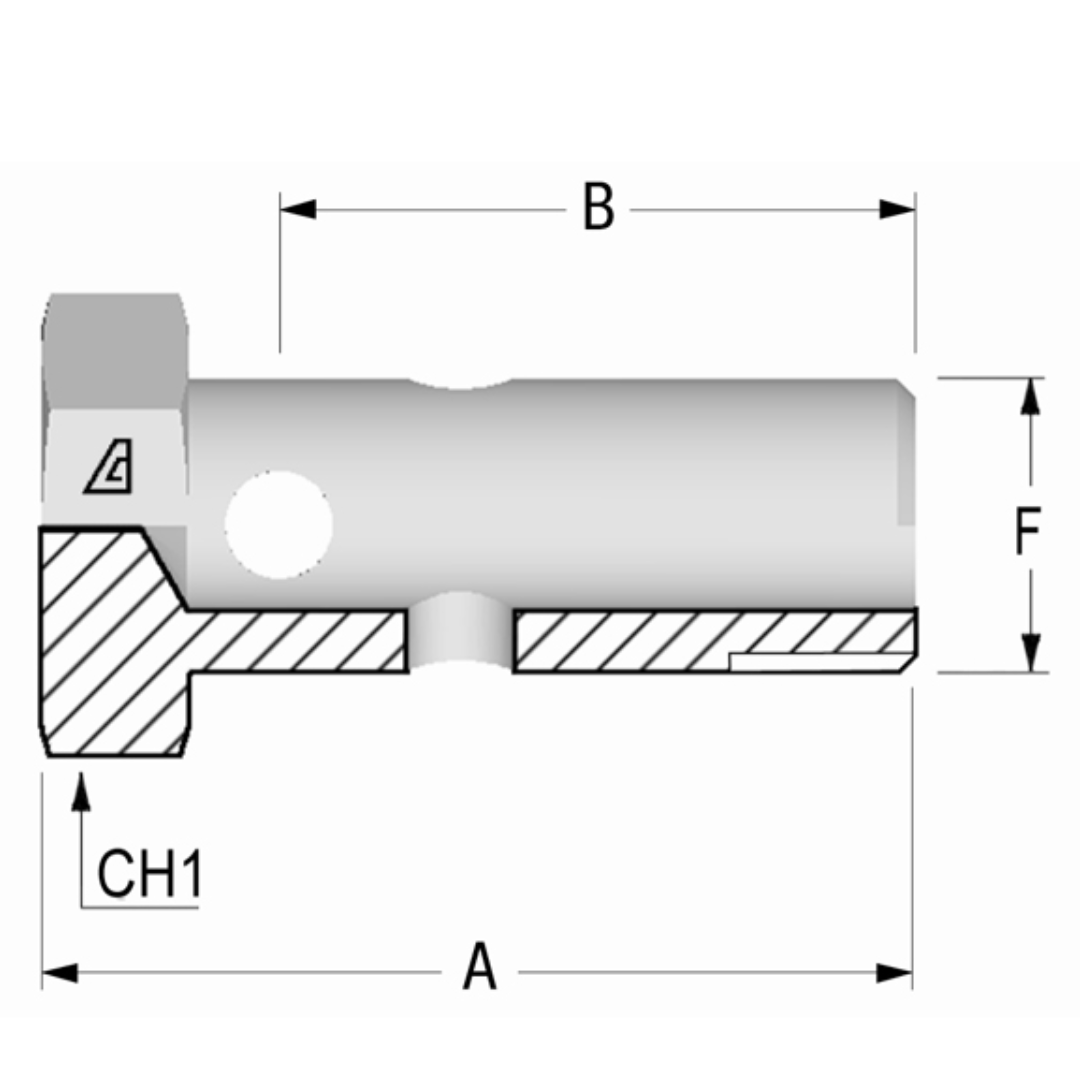

The Alfagomma A-BBOLT Two-Piece Fittings are straight, carbon steel fittings designed to connect hoses to BSPP (British Standard Pipe Parallel) bolt-style connections, often used in high-pressure systems like industrial machinery and hydraulic equipment. These fittings consist of two parts: a hose end and a bolt attachment, and they include a ferrule, which is a metal ring that helps securely clamp the hose onto the fitting to prevent leaks. Ferrules are essential for providing a strong, leak-proof connection, especially in high-pressure systems. The difference between two-piece and one-piece fittings lies in their design: a two-piece fitting allows for more flexibility, as individual components like the hose end and ferrule can be replaced or serviced, while a one-piece fitting is a single, integrated unit. The A-BBOLT fittings are ideal for use with a wide range of hoses, including wire and textile braided hoses, thermoplastic hoses, Flexor 4, PTFE hoses, and smaller ID spiral wire reinforced hoses, offering a reliable, durable connection for fluid systems.
