Product Details
Data Sheet | Download Datasheet |
---|---|
Usually Ships Within | 3-5 Days |
Factory Location | Katy, Texas |
Port Size | #24 SAE (1.5") |
Pressure Rating | 5000 |

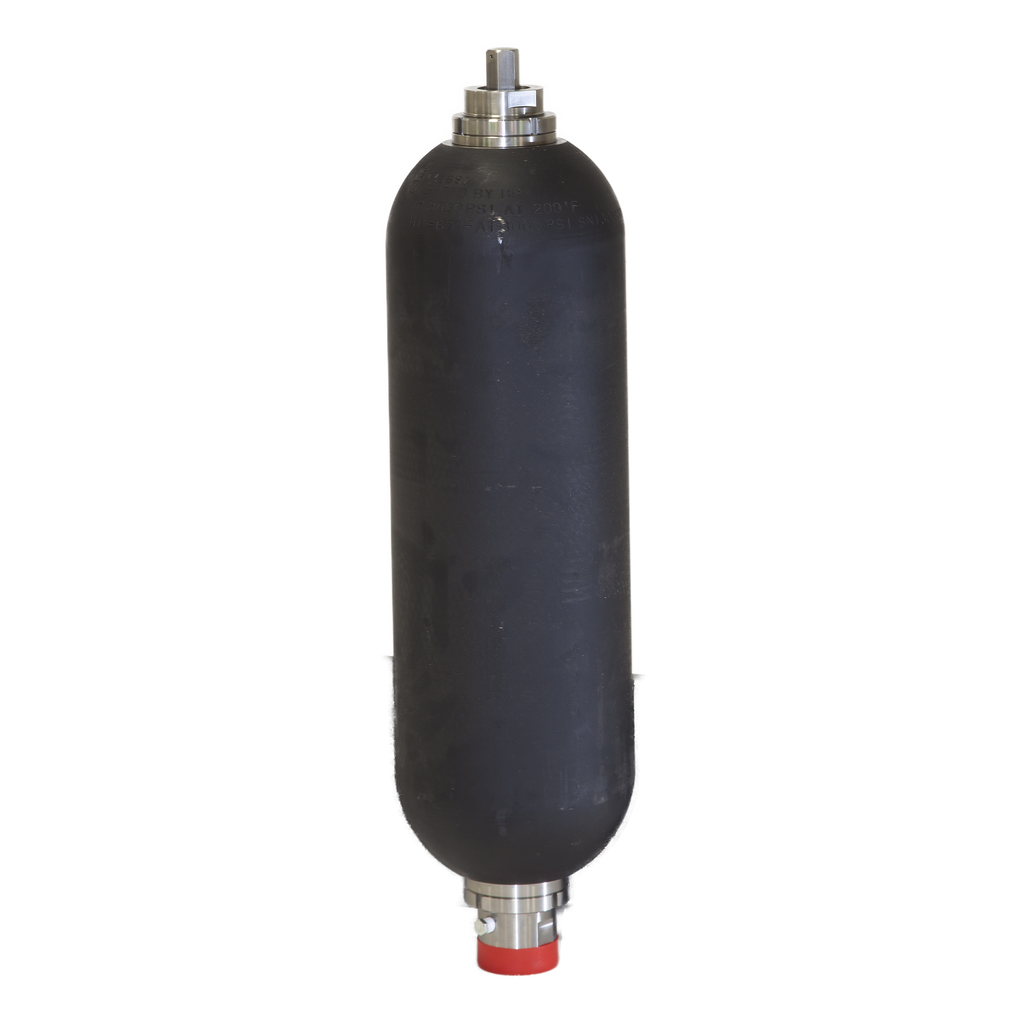

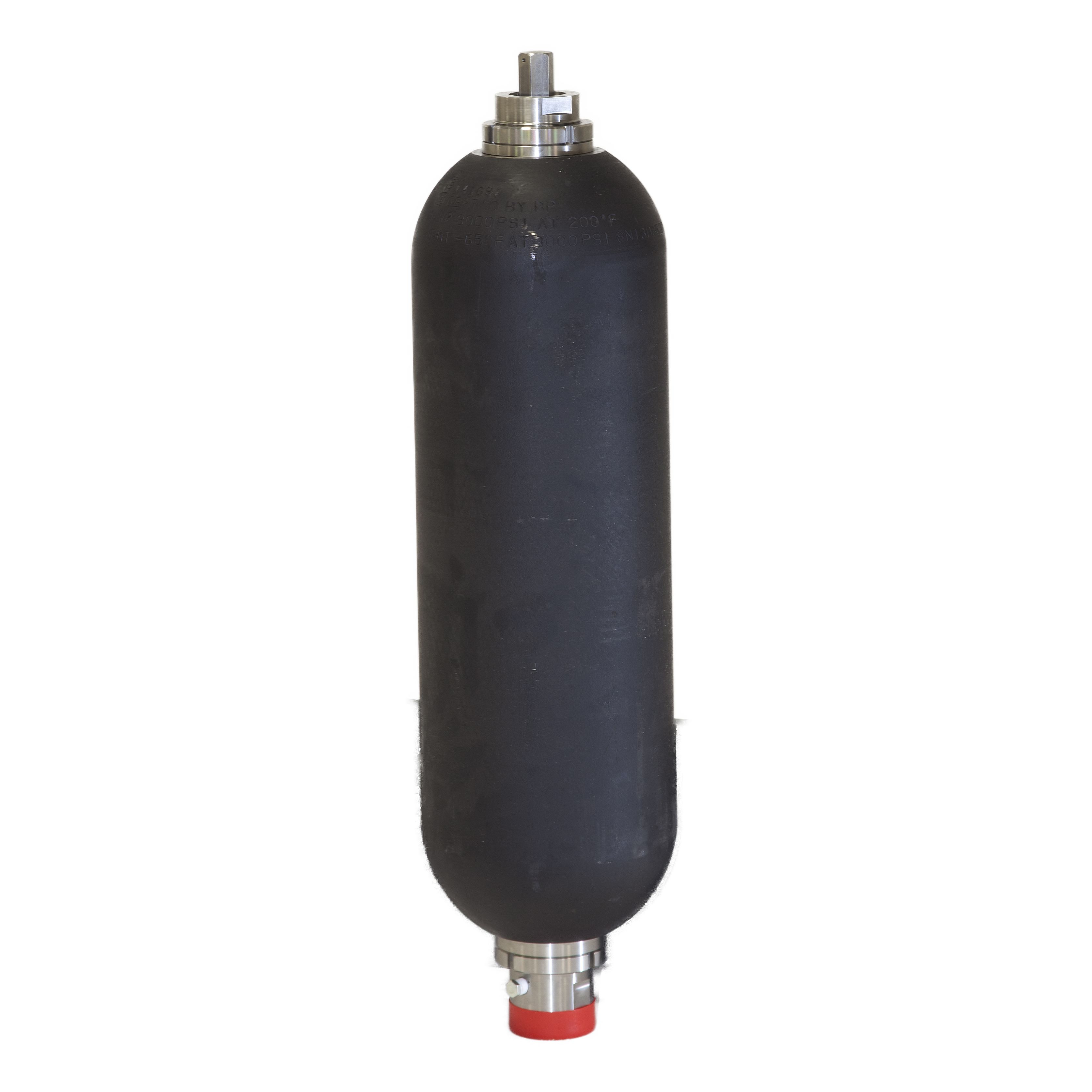

Accumulator Type | Bladder Accumulator, Bottom Repairable |
Nominal Capacity | 2.5 Gallon (10 Liter) |
Bladder Material | Nitrile (Buna) |
Country of Manufacture | United States |
Height | 9.56 |
Length | 23 |
Width | 9.56 |
Weight | 120 |
Description
The hydro-pneumatic accumulator stores energy in the form of pressurized hydraulic fluid and releases to the hydraulic system when demanded either immediately or intermittently. A separator between the compressible dry inert gas such as nitrogen and incompressible hydraulic fluid allows the stored fluid to be discharged per the system requirements. The most common type of accumulators are Bladder type which uses bladder as a separator to store gas. Servi Fluid Power based in Houston, TX offers a wide range of bladder accumulator options available for immediate delivery.
