Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FMOH |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 4.04 |
| Width | 1.2 |
| Weight | 1.06 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M36x2.0 (-S25) |
| Side 2 Type | HEAVY DUTY DIN TUBE |
Description

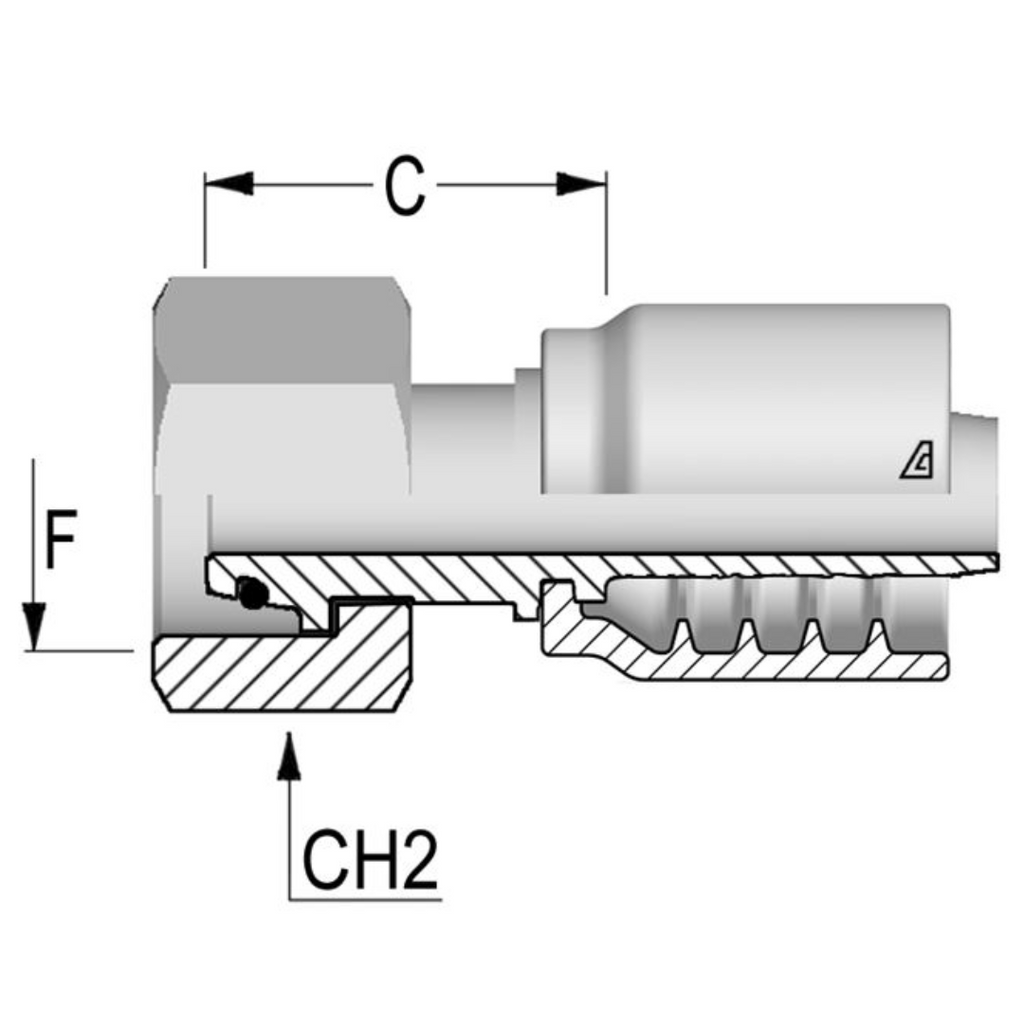

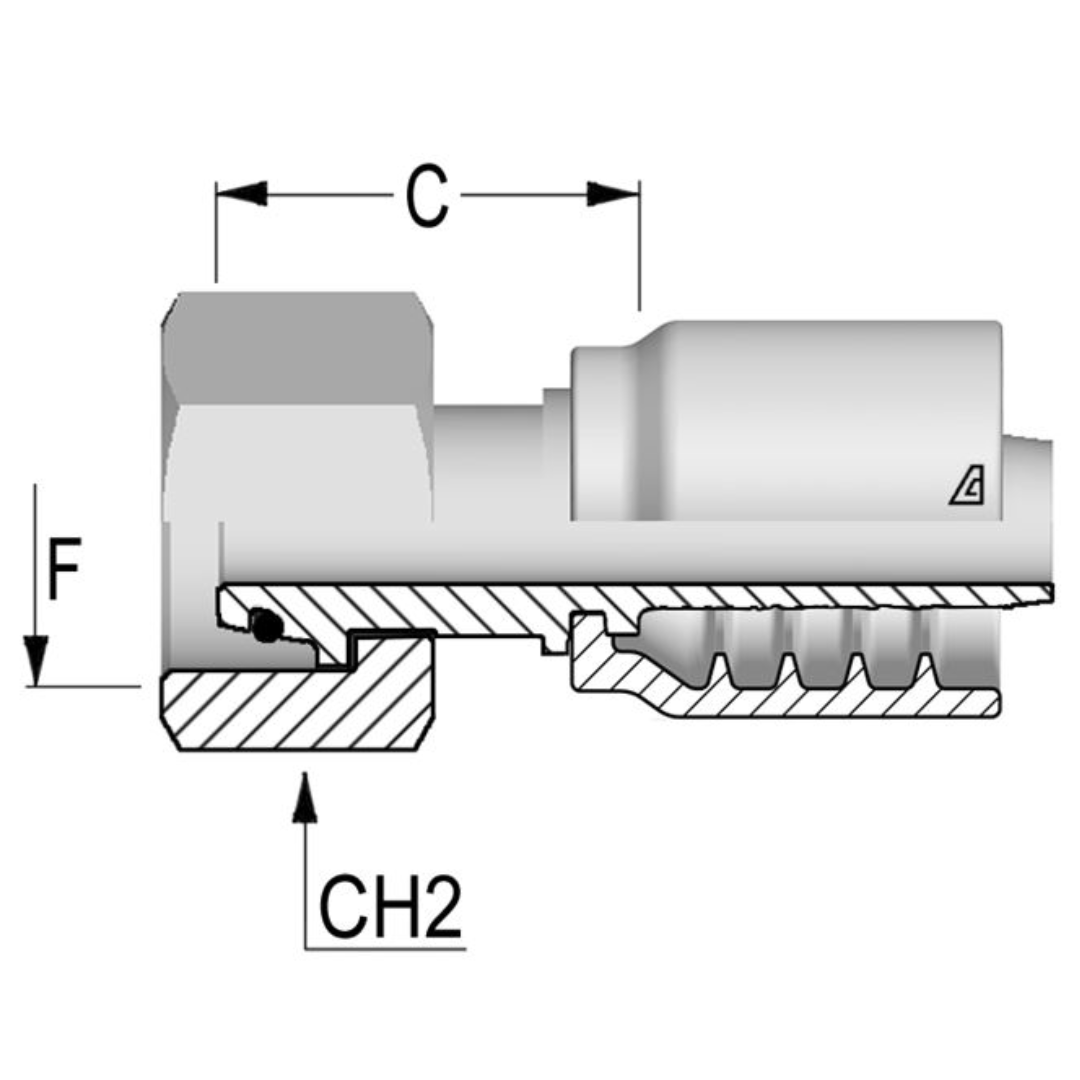

The Alfagomma One-Piece AlfaCrimp B-FMOH Fitting is a straight, carbon steel fitting designed to connect braided hoses to a Metric Female 24° cone with an O-ring, following the Heavy DIN 3865 standard. This fitting uses a non-skive crimp design, which means there’s no need to remove or prepare any part of the hose before installation, making it easier and faster to use. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to high pressures. The Metric Female 24° cone with O-ring ensures a secure and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require durable, long-lasting connections.
