Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 3000 |
| Fitting Style | Rigid |
| Series | B-C619 |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 9.17 |
| Width | 1.2 |
| Weight | 2.07 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1.5" (-24) |
| Side 2 Type | Code 61 |
Description

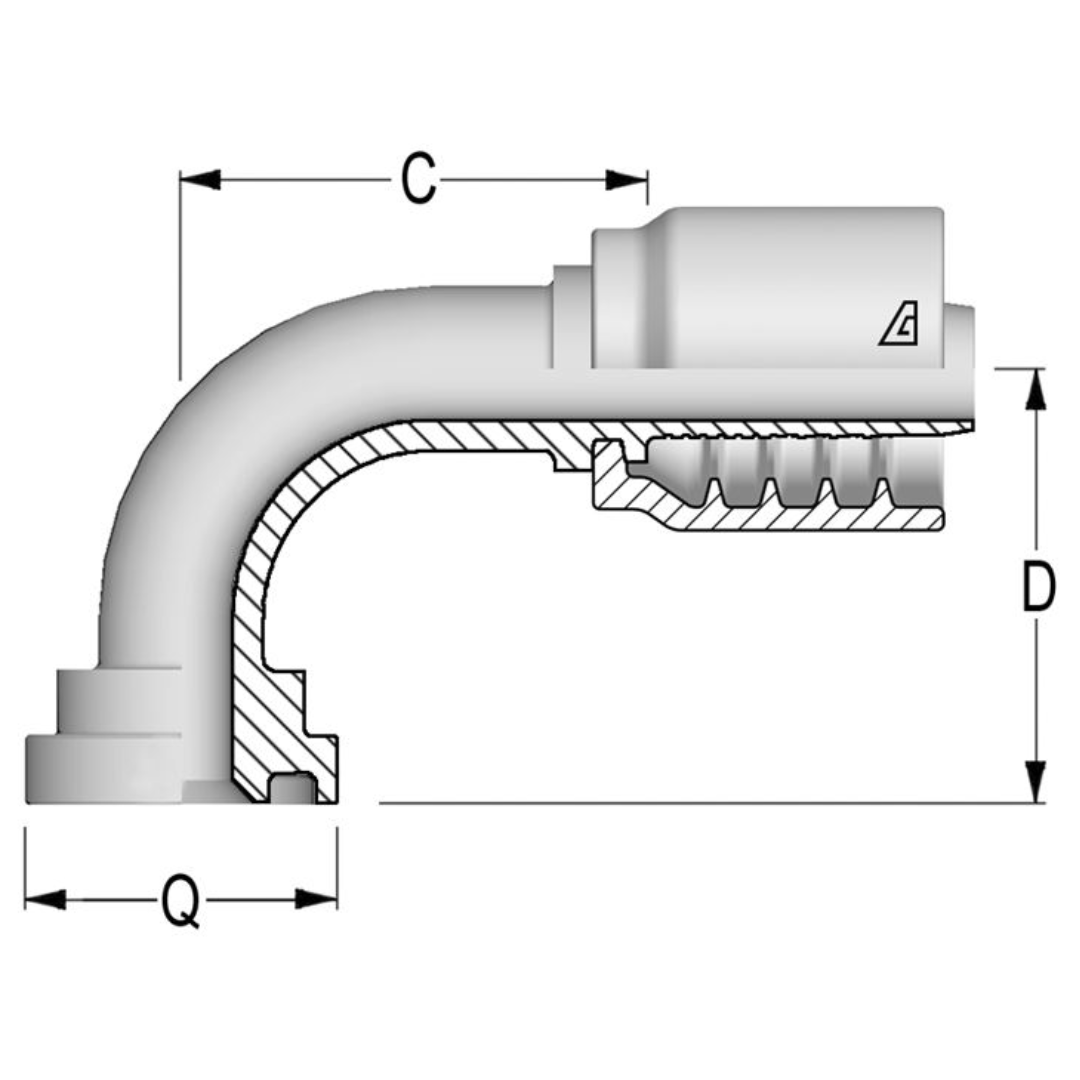

The Alfagomma One-Piece AlfaCrimp B-C619 Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° SAE 3000PSI J518 Code 61 flange. This fitting uses a non-skive crimp design, meaning you don't need to remove or prepare any part of the hose before installation, saving time and effort. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to high pressures. The 90° SAE 3000PSI J518 Code 61 flange ensures a reliable and durable connection, making this fitting ideal for fluid power systems in high-pressure environments that require strong, leak-proof seals.
