Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 6000 |
| Fitting Style | Rigid |
| Series | B-C62S |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 6.25 |
| Width | 1.2 |
| Weight | 1.27 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 1.25" (-20) |
| Side 2 Type | Code 62 |
Description

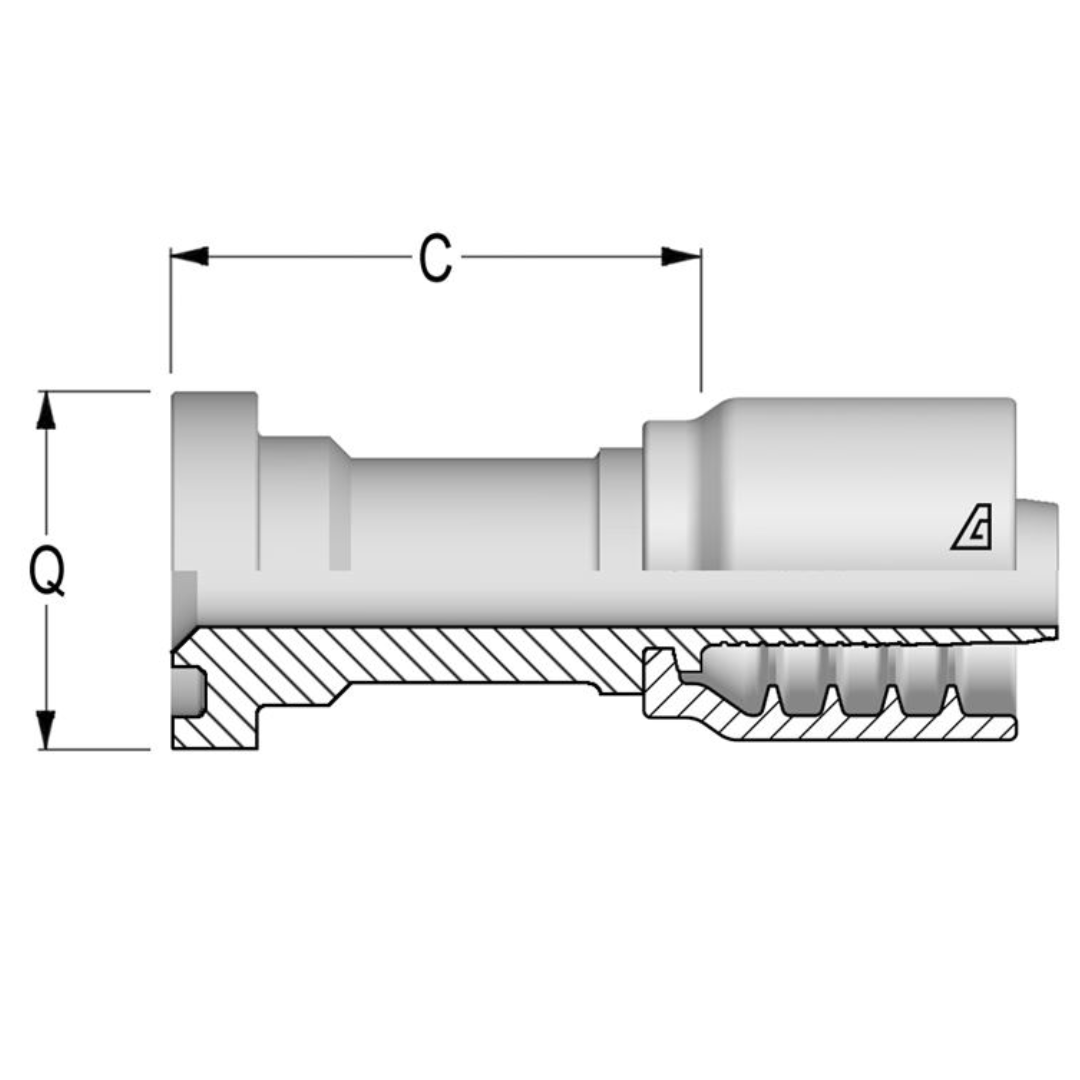

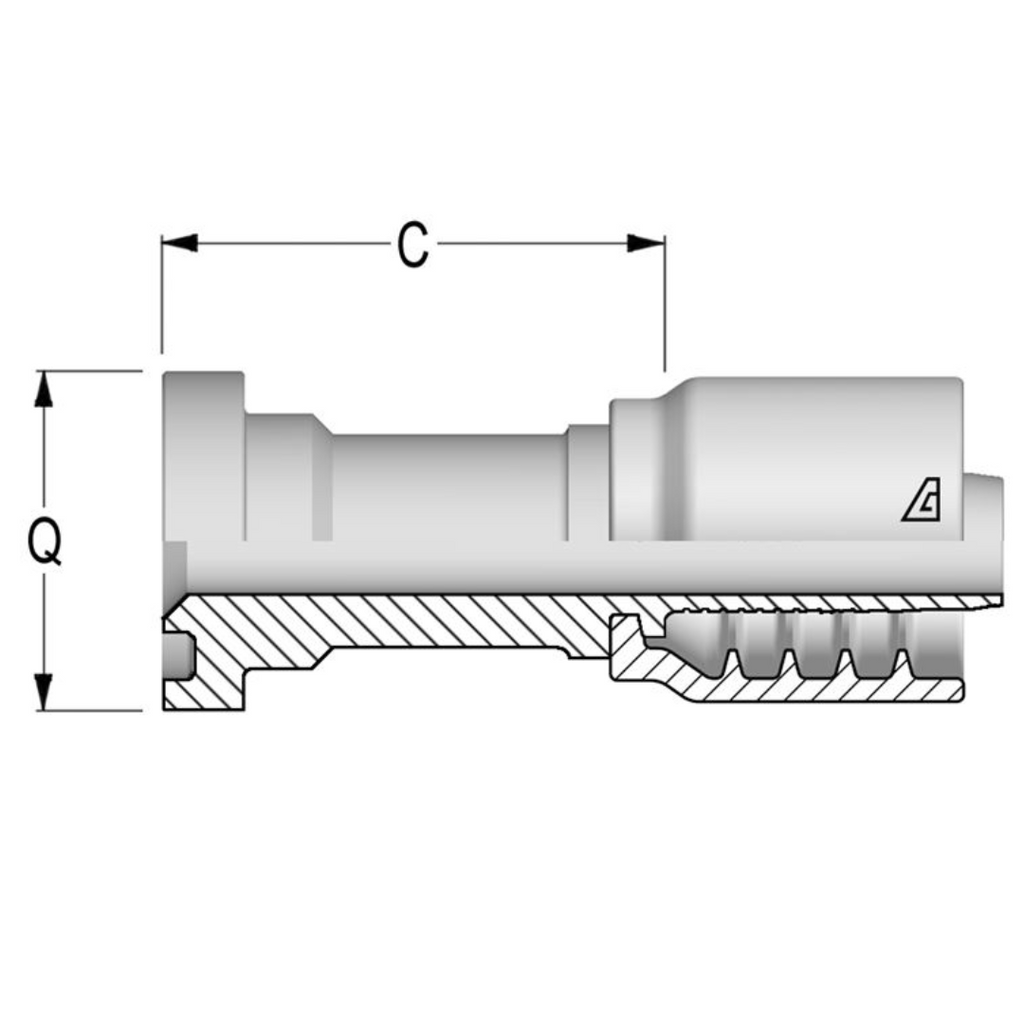

The Alfagomma One-Piece AlfaCrimp B-C62S Fitting is a straight, carbon steel fitting designed to connect braided hoses to a SAE 6000PSI J518 Code 62 flange. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making it quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing strength and resistance to high pressure. The SAE 6000PSI J518 Code 62 flange ensures a durable and secure connection, making this fitting ideal for high-pressure fluid systems where reliability and performance are crucial.
