Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-MOBS |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 5.12 |
| Width | 1.2 |
| Weight | 1 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1 5/16-12 (-16) |
| Side 2 Type | ORB |
Description

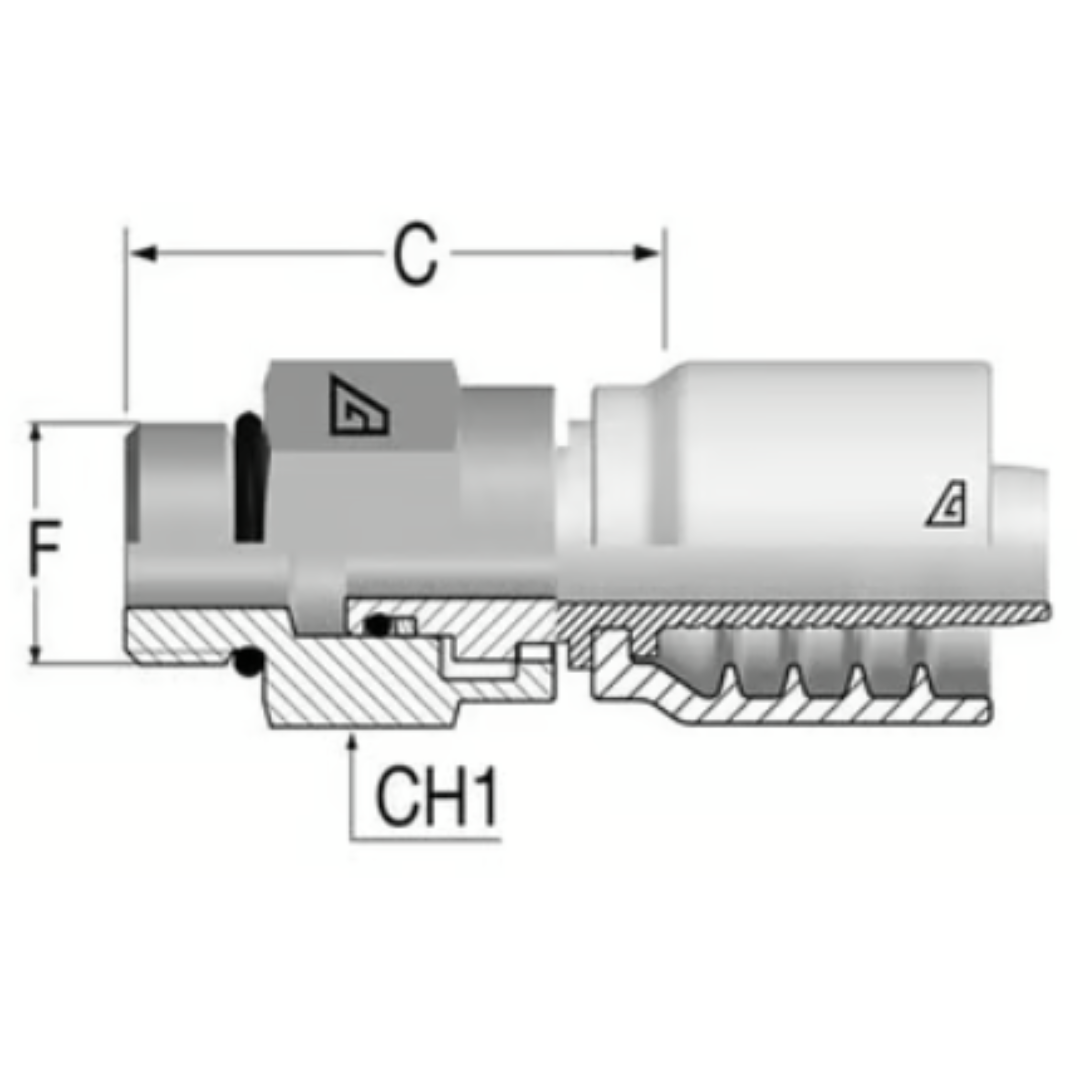

The Alfagomma One-Piece AlfaCrimp B-MOBS Fitting is a straight, carbon steel fitting designed to repair or join braided hoses, featuring a male swivel SAE O-Ring Boss (ORB) connection. This fitting uses a non-skive crimp design, meaning no preparation or removal of the hose is needed before installation, making it quick and convenient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering superior strength and resistance to high pressures. This hose mender fitting ensures a reliable, durable connection for fluid power systems, hose repairs, and custom hose assemblies, providing long-lasting performance.
