Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FBPO |
| Country of Manufacture | Italy |
| Height | 1.2 |
| Length | 2.36 |
| Width | 1.2 |
| Weight | 0.66 |
| Side 1 Size | 1 (-16) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1-11 (-16) |
| Side 2 Type | BSPP |
Description

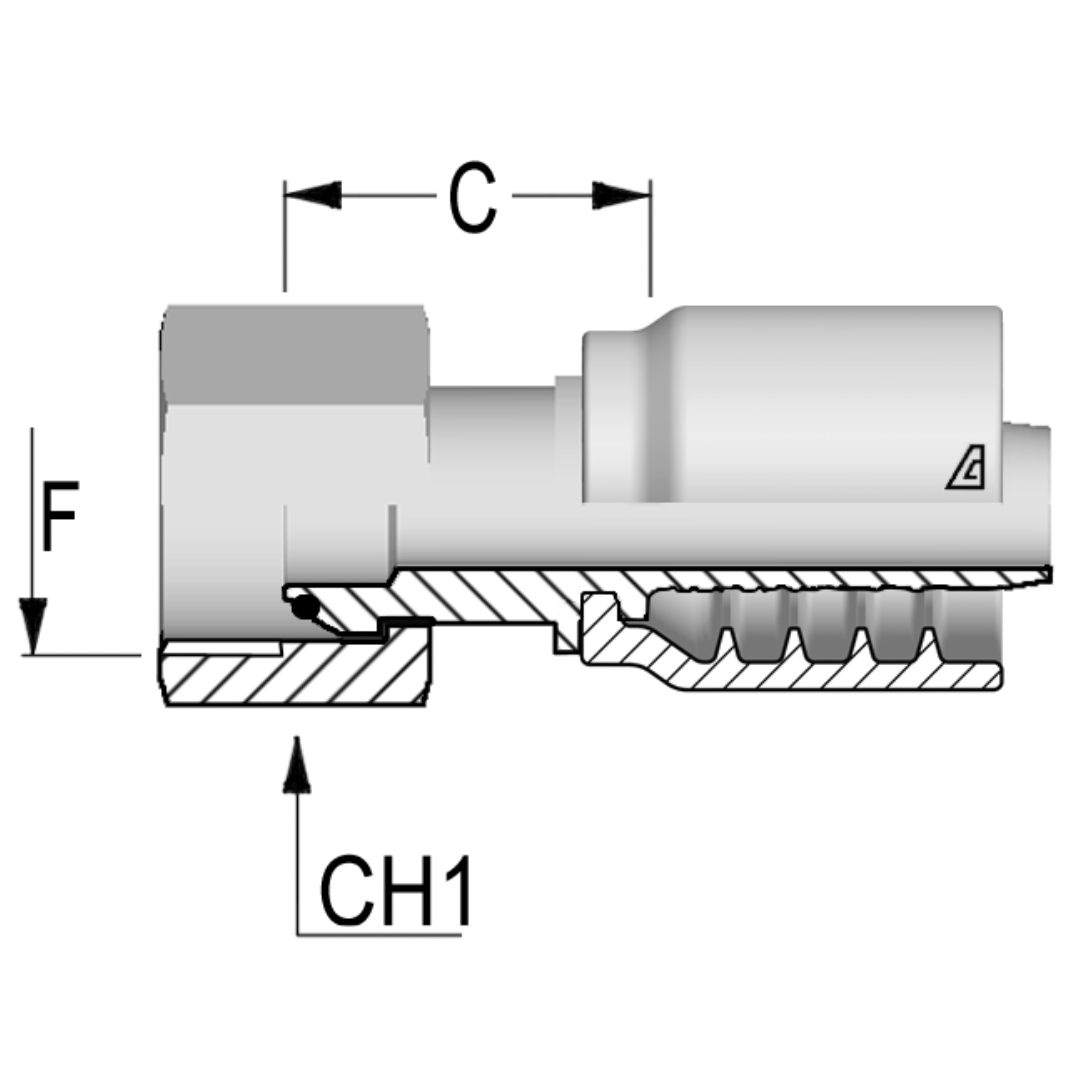

The Alfagomma One-Piece AlfaCrimp B-FBPO Fitting is a straight, carbon steel fitting designed to connect braided hoses to a BSPP (British Standard Parallel Pipe) female connection with a 60° cone and O-ring for a secure seal. This fitting uses a non-skive crimp design, meaning there's no need to remove or prep any part of the hose before installation, which makes it faster and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The BSPP female 60° cone with O-ring ensures a reliable, durable connection, making this fitting ideal for fluid power systems and high-pressure applications that require a tight, dependable seal.
