Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MMSH |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 3.3099999999999996 |
| Width | 1 |
| Weight | 0.6 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M36x2.0 (-S25) |
| Side 2 Type | HEAVY DUTY DIN TUBE |
Description

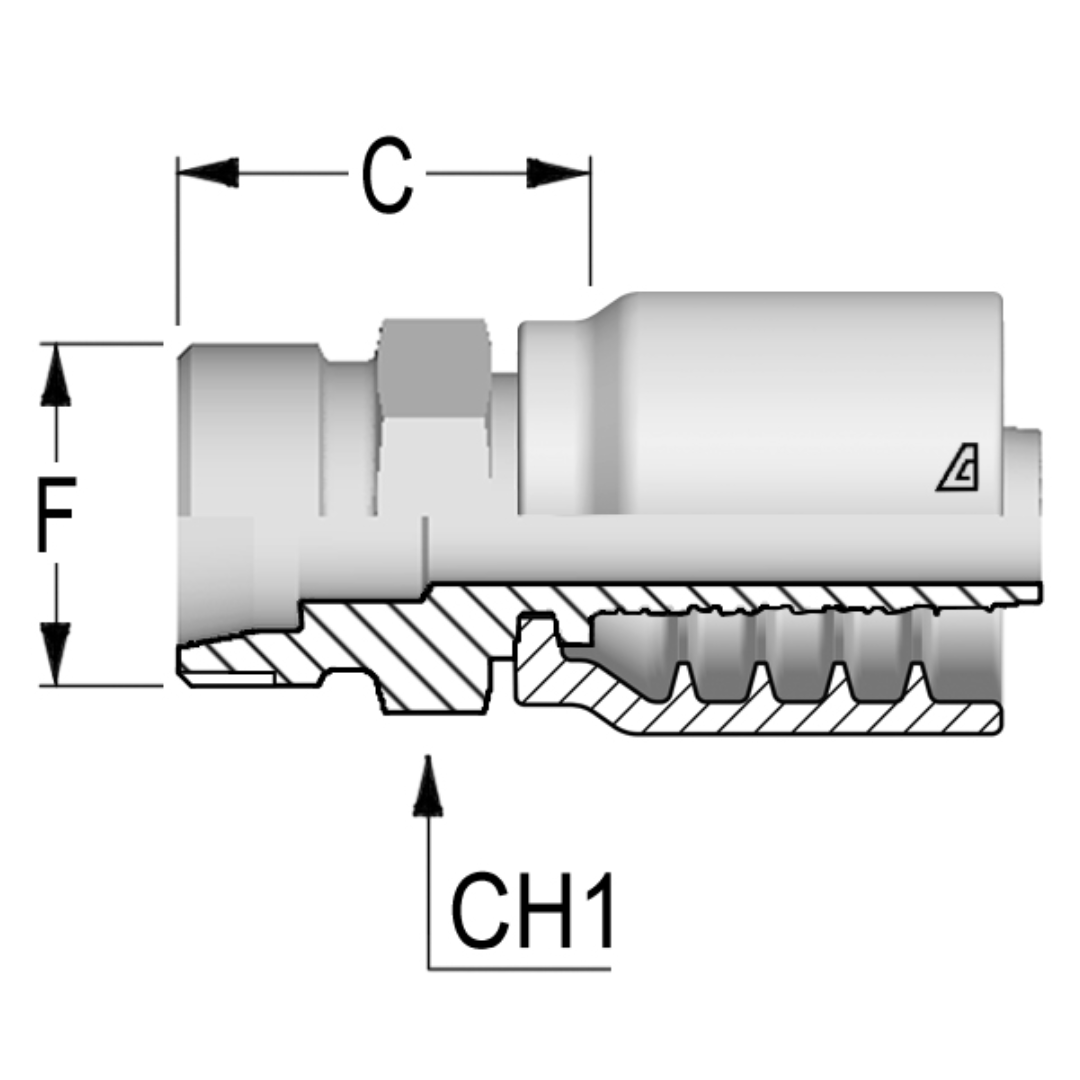

The Alfagomma One-Piece AlfaCrimp B-MMSH Fitting is a straight, carbon steel fitting designed to connect braided hoses to a Metric Male 24° seat following the Heavy DIN 3853 standard. This fitting uses a non-skive crimp design, meaning there's no need to remove or prep any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing extra strength and resistance to high pressure. The Metric Male 24° seat ensures a strong, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications that require durable, long-lasting seals.
