Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MMSL |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 3.1199999999999997 |
| Width | 1 |
| Weight | 0.45 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | M30x2.0 (-L22) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

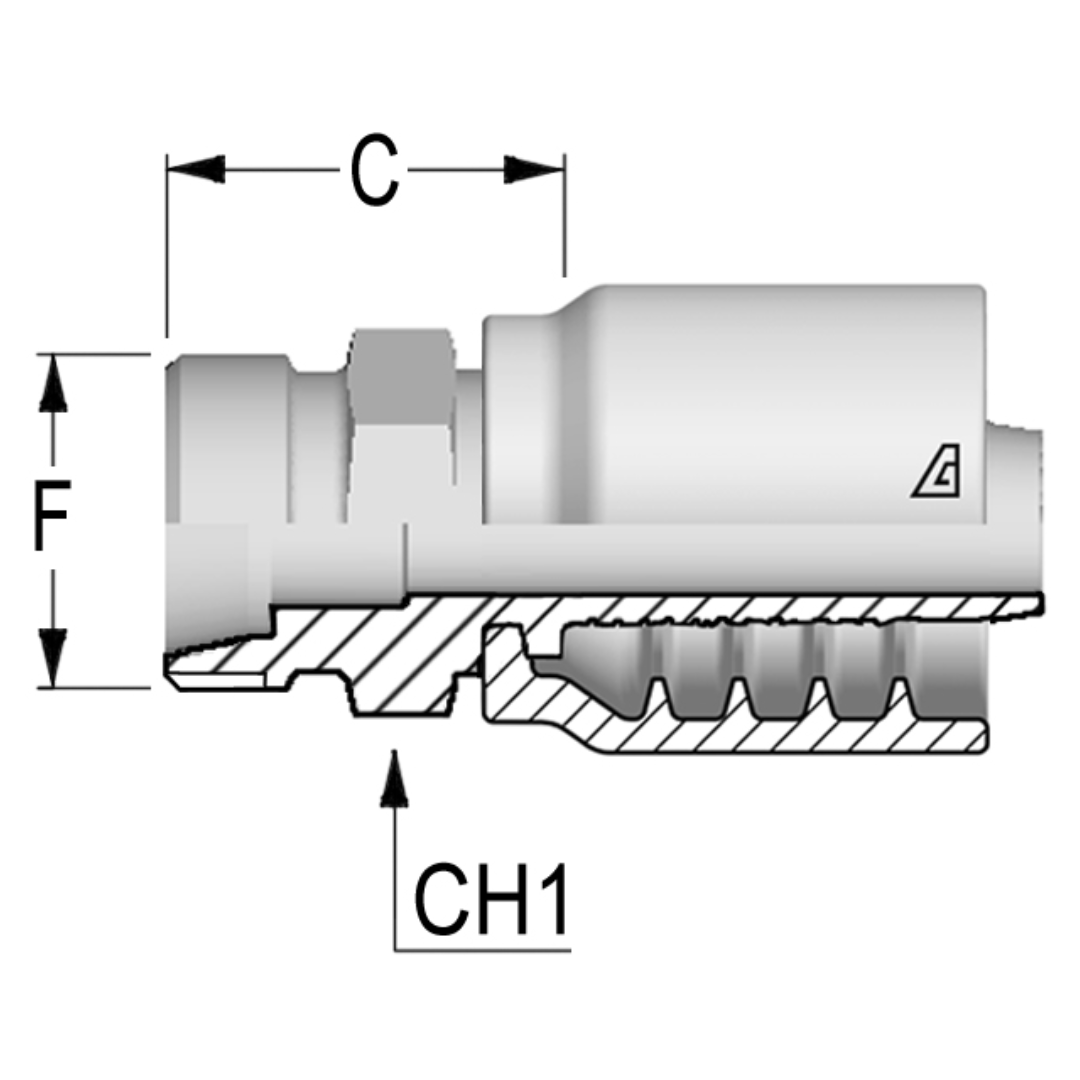

The Alfagomma One-Piece AlfaCrimp B-MMSL Fitting is a straight, carbon steel fitting designed to connect braided hoses to a Metric Male 24° Seat connection (Light DIN 3853). This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, saving time and making the process more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering increased strength and resistance to high-pressure systems. The Metric Male 24° Seat ensures a reliable and durable connection, making this fitting ideal for fluid power systems and high-pressure applications where a strong, long-lasting seal is needed.
