Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | B-FM4L |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 6.84 |
| Width | 1 |
| Weight | 0.69 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M30X2.0 (-L22) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

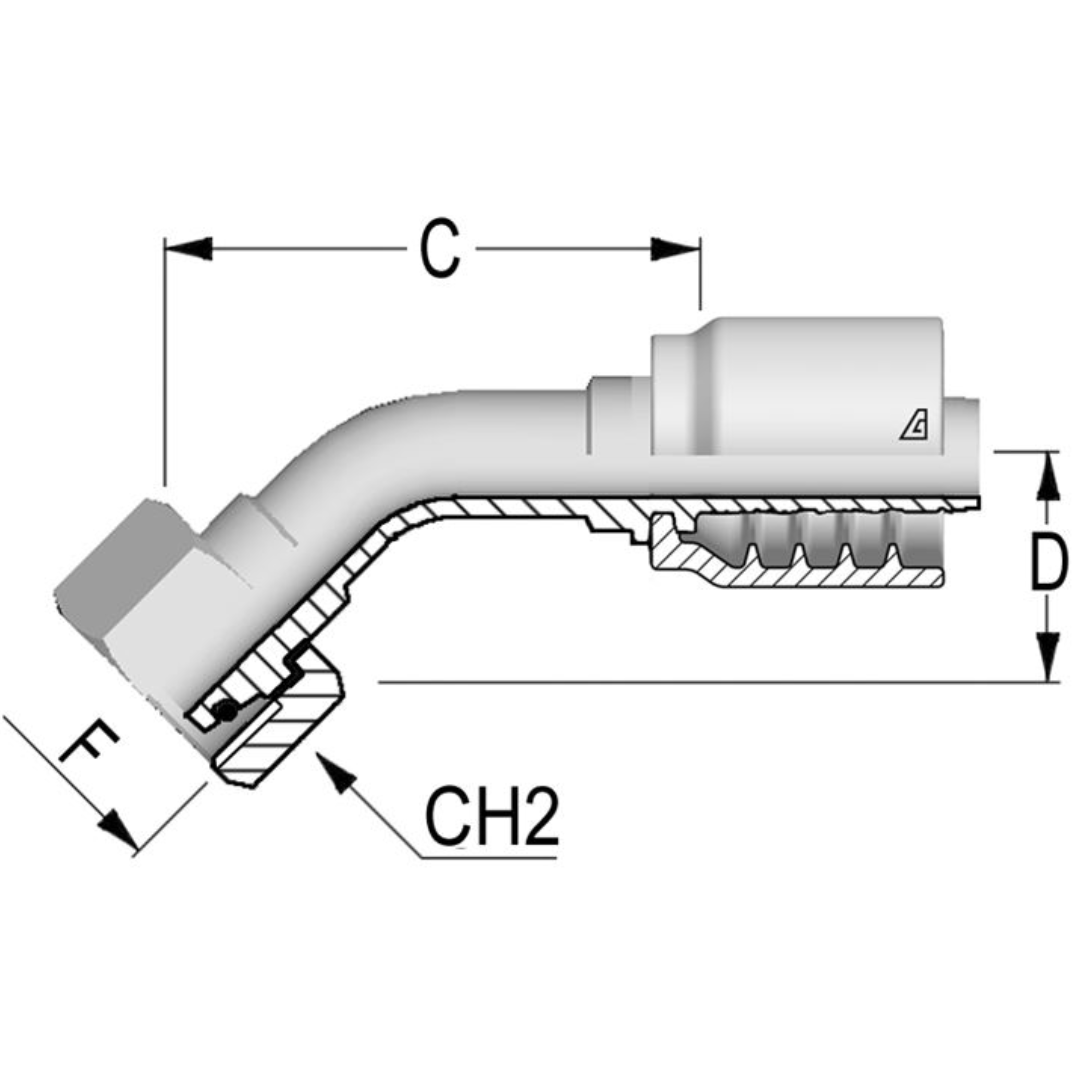

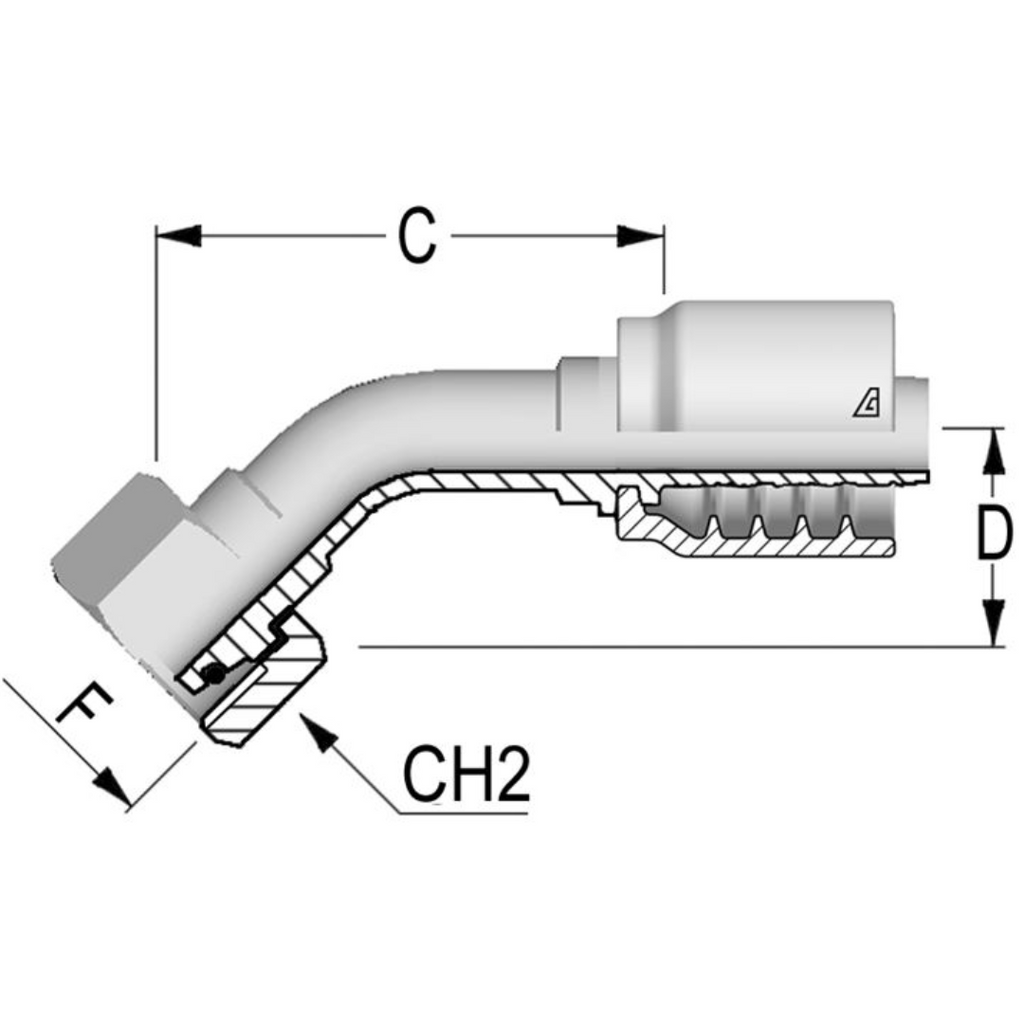

The Alfagomma One-Piece AlfaCrimp B-FM4L Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° Metric Female 24° cone with an O-ring, following the Light DIN 3865 standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to pressure. The 45° Metric Female 24° cone with O-ring ensures a reliable and durable seal, making this fitting ideal for high-pressure fluid systems that require a strong, long-lasting connection.
