Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-FJ9S |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 5.279999999999999 |
| Width | 1 |
| Weight | 0.83 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 5/16-12 (-16) |
| Side 2 Type | JIC |
Description

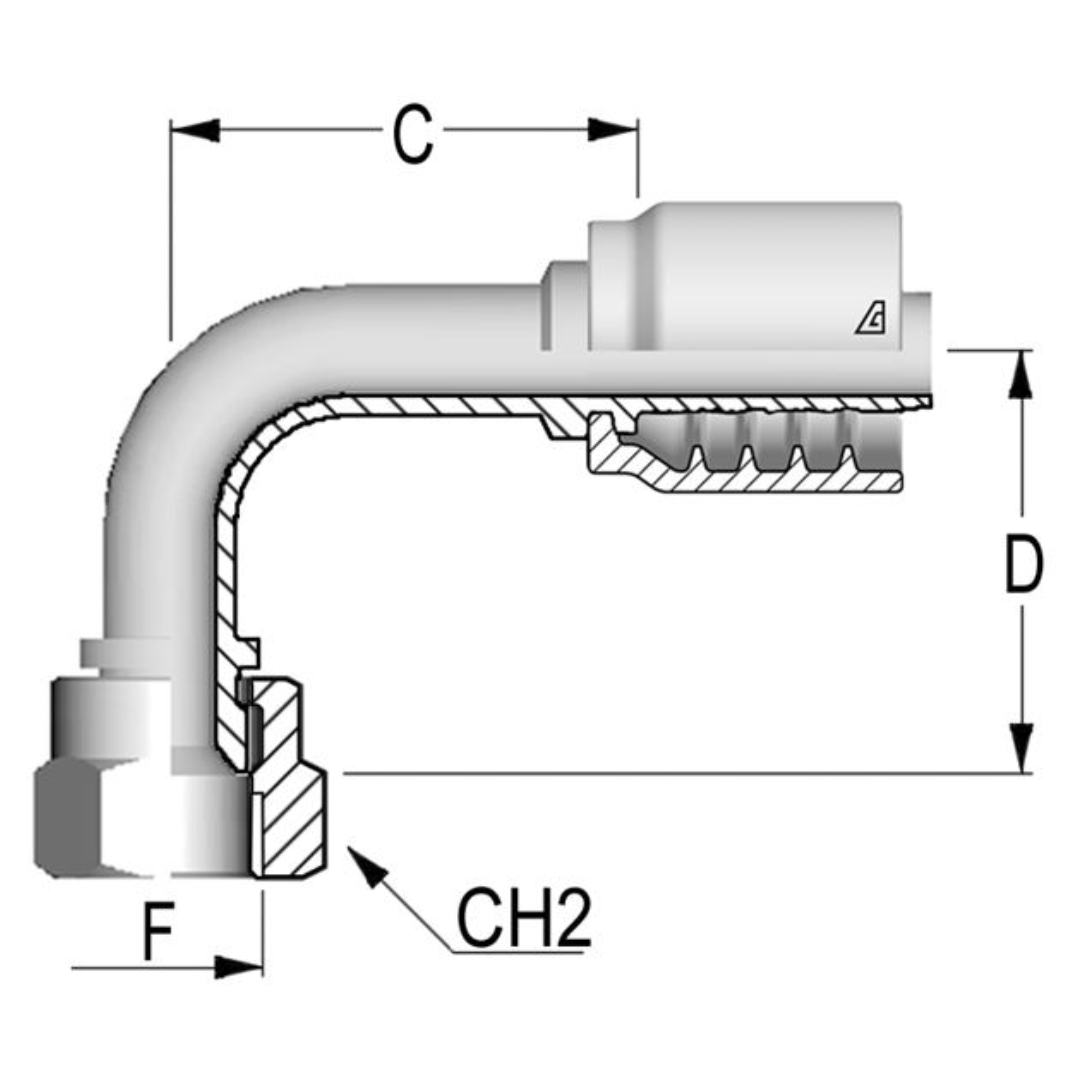

The Alfagomma One-Piece AlfaCrimp B-FJ9S Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° JIC (Joint Industrial Council) female 37° seat with a short drop design. This fitting uses a non-skive crimp, meaning there’s no need to prepare or remove any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a tight, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering high strength and resistance to pressure. The 90° angle and short drop provide a compact and secure connection, making this fitting ideal for fluid power systems, hose repairs, and custom hose assemblies in high-pressure applications
