Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | B-FJ45 |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 7.029999999999999 |
| Width | 1 |
| Weight | 0.82 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 5/16-12 (-16) |
| Side 2 Type | JIC |
Description

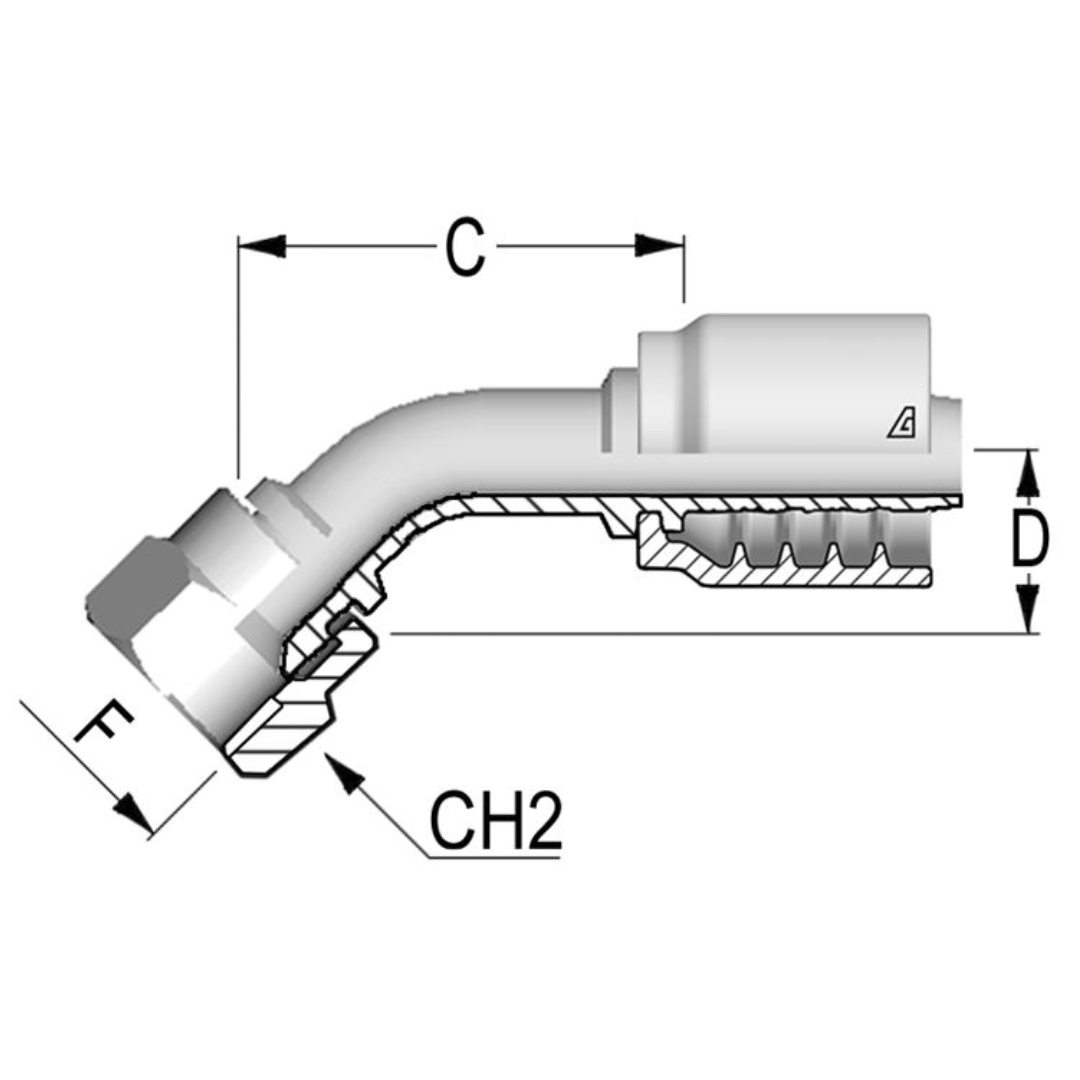

The Alfagomma One-Piece AlfaCrimp B-FJ45 Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° JIC (Joint Industrial Council) female 37° seat. This fitting uses a non-skive crimp design, meaning there’s no need to prepare or remove any part of the hose before installation, making the process faster and more convenient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing extra strength and resistance to pressure. The 45° angle and JIC female 37° seat ensure a secure, reliable connection, making this fitting ideal for fluid power systems, hose repairs, and custom hose assemblies in high-pressure applications.
