Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-MBS9 |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 2.6599999999999997 |
| Width | 1 |
| Weight | 0.6 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1 1/16-12 (-12) |
| Side 2 Type | ORB |
Description

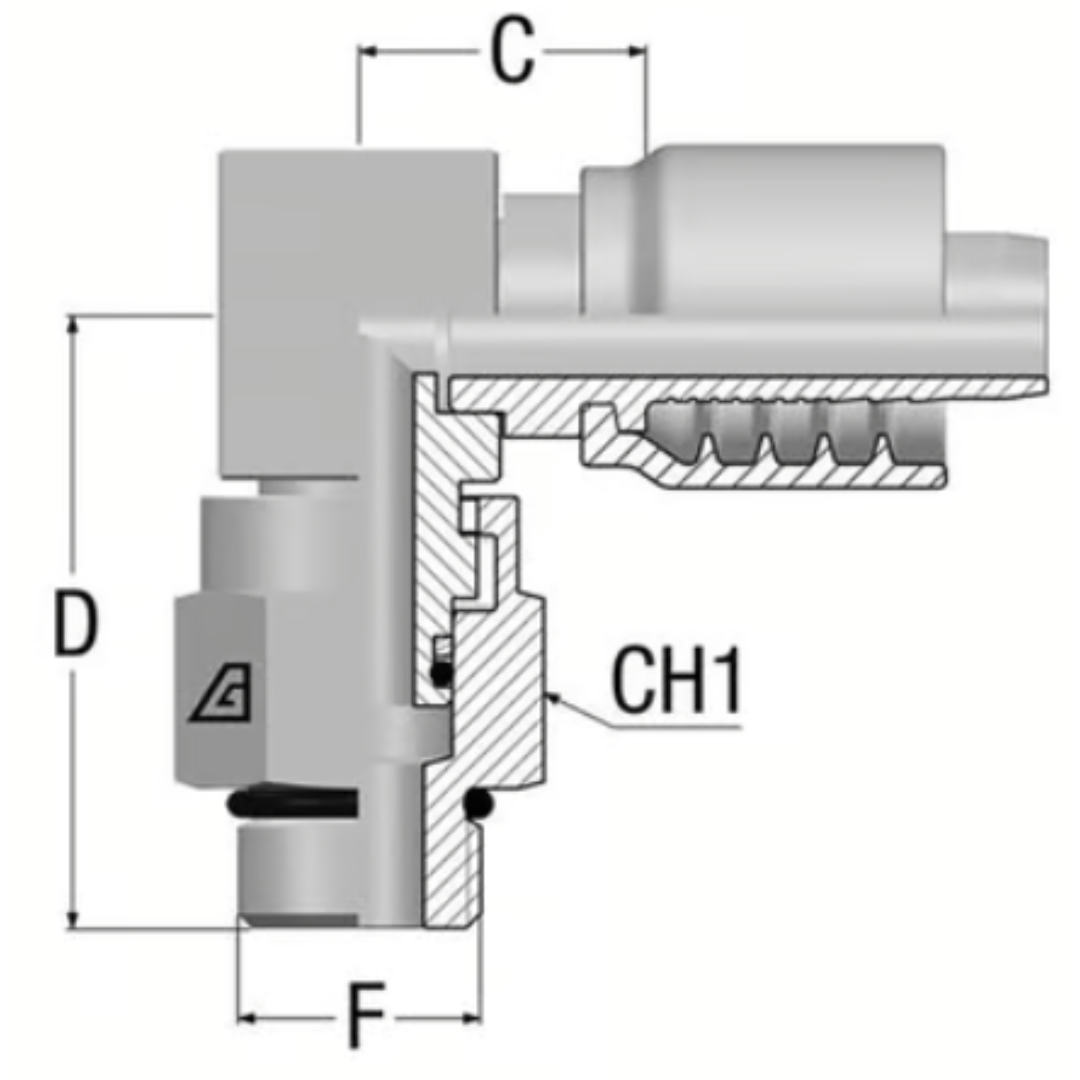

The Alfagomma One-Piece AlfaCrimp B-MBS9 Fitting is a 90-degree, carbon steel fitting designed to repair or join braided hoses, featuring a male 90° compact swivel SAE O-Ring Boss (ORB) connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making it quick and easy to use. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing enhanced strength and resistance to pressure. This hose mender fitting is perfect for fluid power systems, hose repairs, and custom hose assemblies, ensuring a reliable, durable connection that performs well under high-pressure conditions.
