Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | Same Day |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FOFS |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 4.2 |
| Width | 1 |
| Weight | 0.68 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 3/16-12 (-12) |
| Side 2 Type | ORFS |
Description

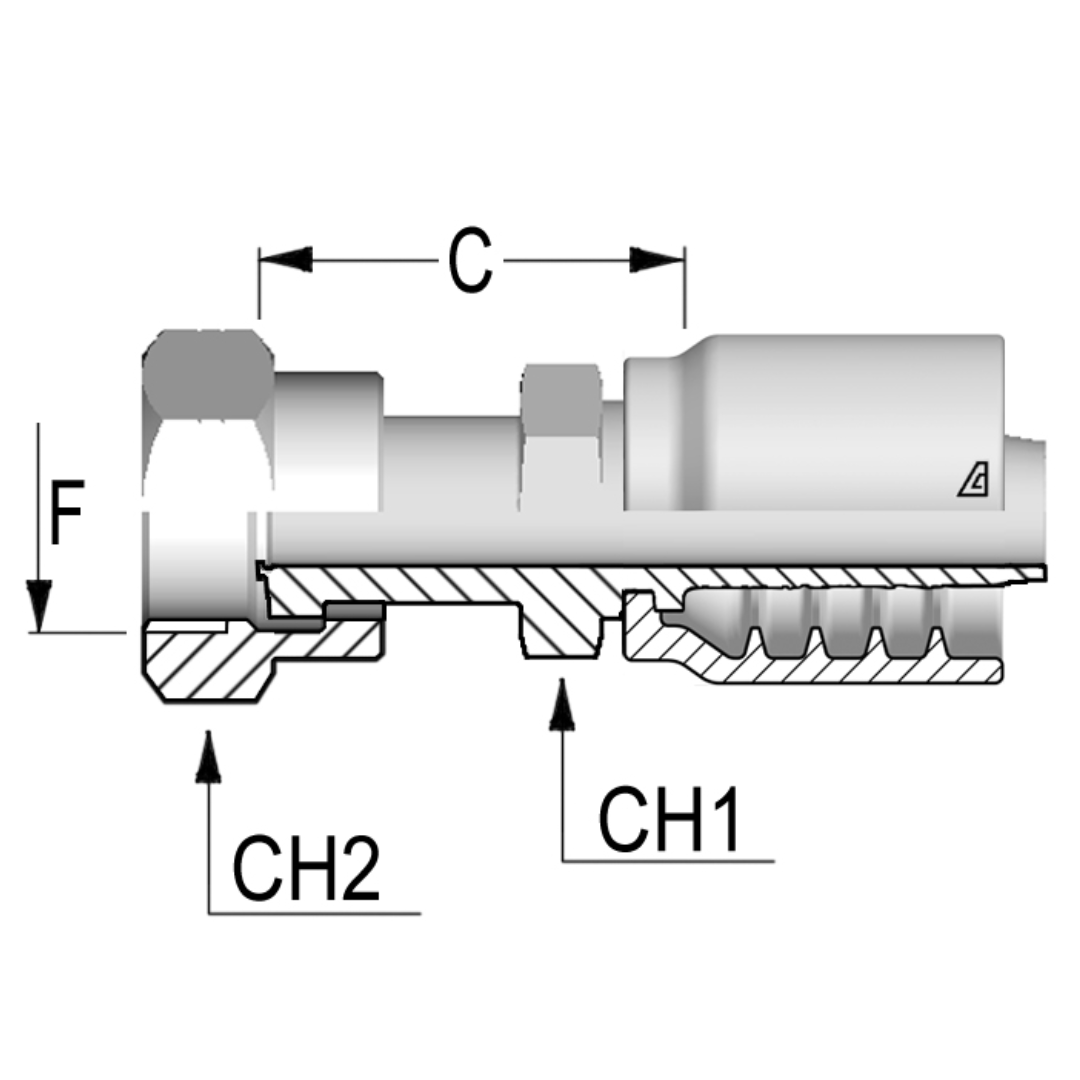

The Alfagomma One-Piece AlfaCrimp B-FOFS Fitting is a straight, carbon steel fitting designed to connect braided hoses to an ORFS (O-Ring Face Seal) female connection. This fitting features a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making it faster and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The ORFS female connection creates a strong, reliable seal, making this fitting ideal for fluid power systems in high-pressure applications where leak-proof performance is crucial.
