Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-FBFS |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 1.79 |
| Width | 1 |
| Weight | 0.42 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/4-14 (-12) |
| Side 2 Type | BSPP |
Description

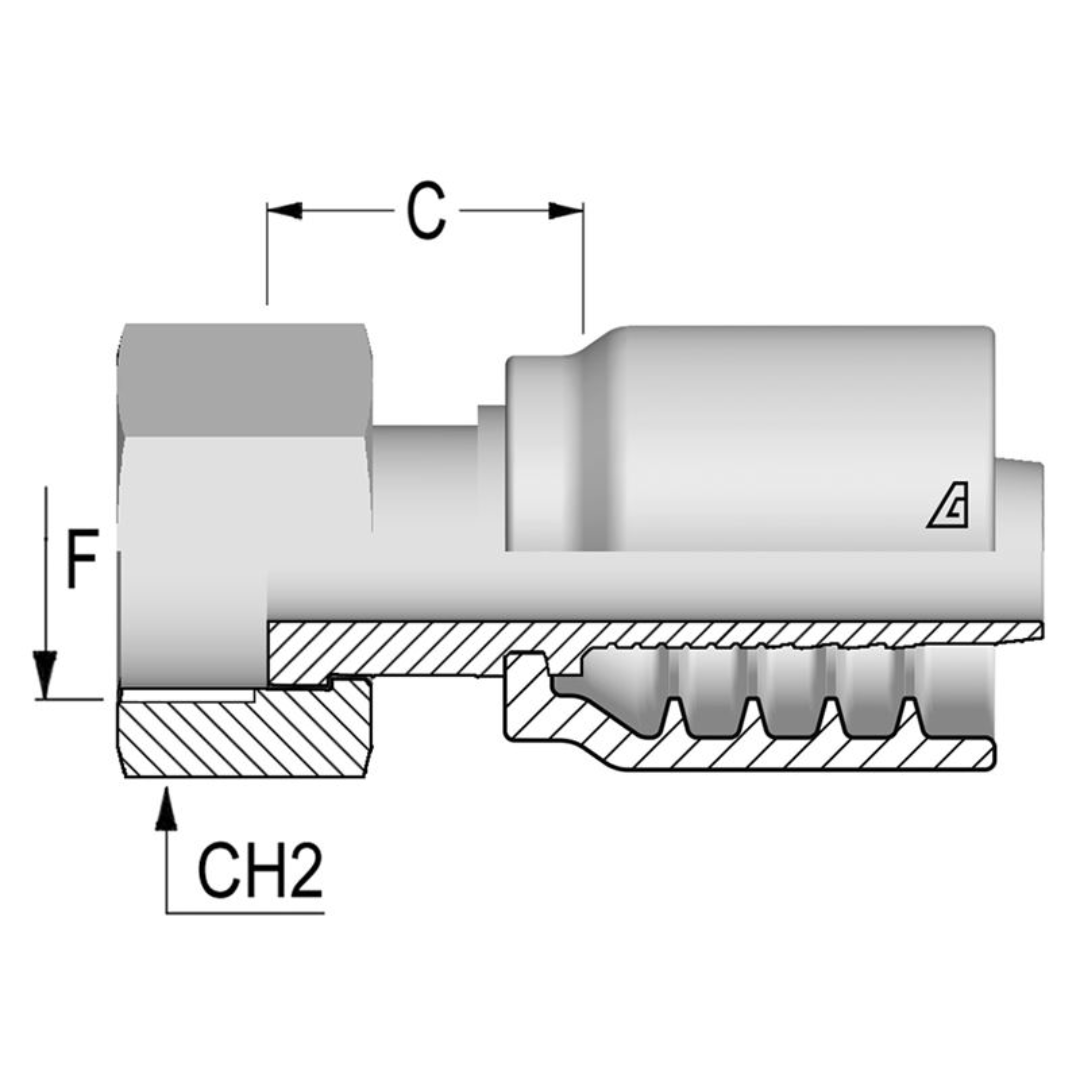

The Alfagomma One-Piece AlfaCrimp B-FBFS Fitting is a straight, carbon steel fitting designed to connect braided hoses to a BSPP (British Standard Parallel Pipe) female flat seat connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process quicker and easier. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to pressure. The BSPP female flat seat ensures a reliable, durable connection, making this fitting ideal for fluid power systems and high-pressure applications where a secure, leak-proof connection is required.
