Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Pressure Rating | 6000 |
| Fitting Style | Rigid |
| Series | B-C629 |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 4.069999999999999 |
| Width | 1 |
| Weight | 0.92 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | Code 62 |
Description

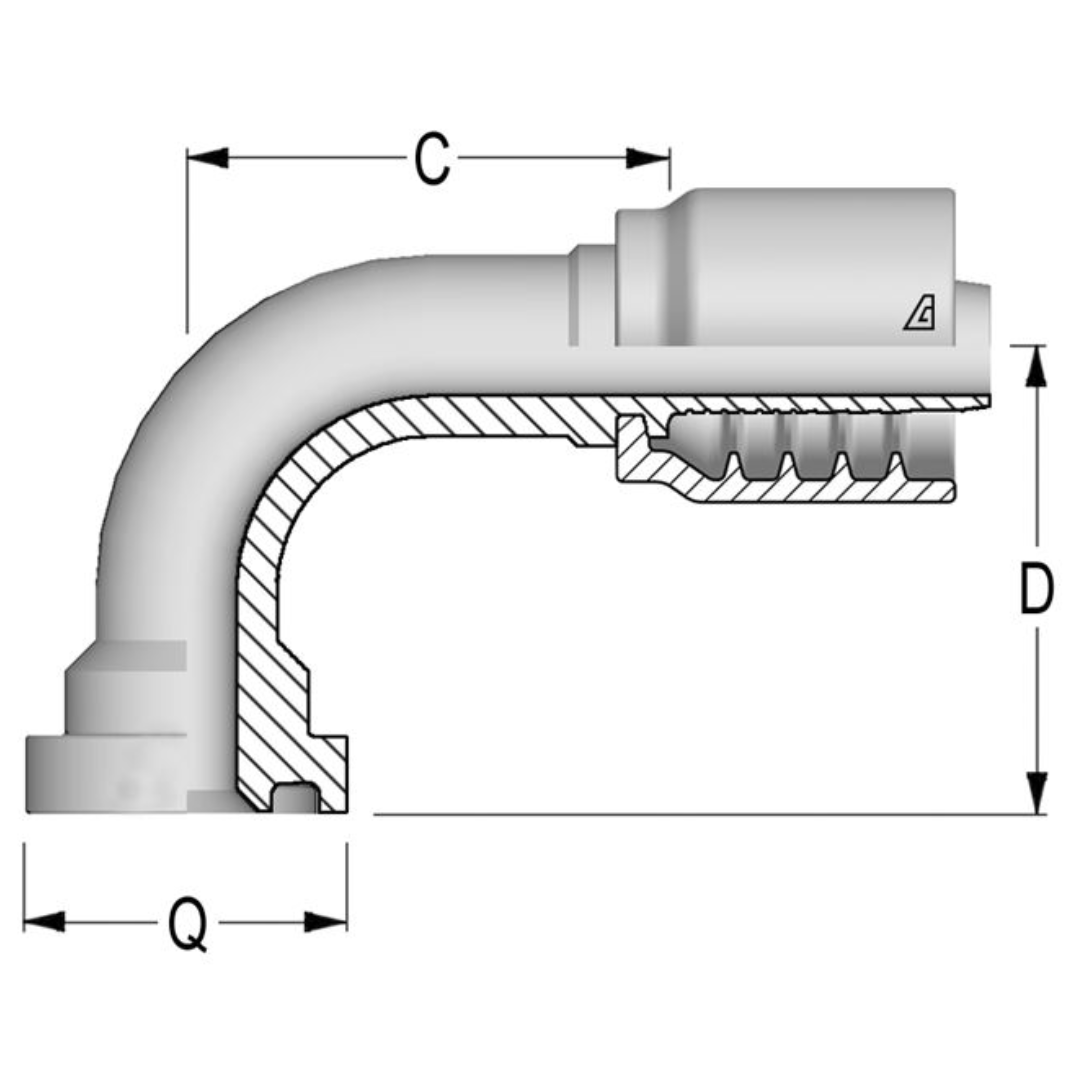

The Alfagomma One-Piece AlfaCrimp B-C629 Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° SAE 6000PSI J518 Code 62 flange. It uses a non-skive crimp design, which means you don’t need to remove or prepare any part of the hose before installation, making it quicker and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing excellent strength and resistance to high pressures. The 90° SAE 6000PSI J518 Code 62 flange ensures a durable and reliable connection, making this fitting ideal for high-pressure fluid power systems that require secure, long-lasting seals.
