Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Pressure Rating | 6000 |
| Fitting Style | Rigid |
| Series | B-C624 |
| Country of Manufacture | Italy |
| Height | 1 |
| Length | 4.069999999999999 |
| Width | 1 |
| Weight | 0.85 |
| Side 1 Size | 3/4 (-12) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | Code 62 |
Description

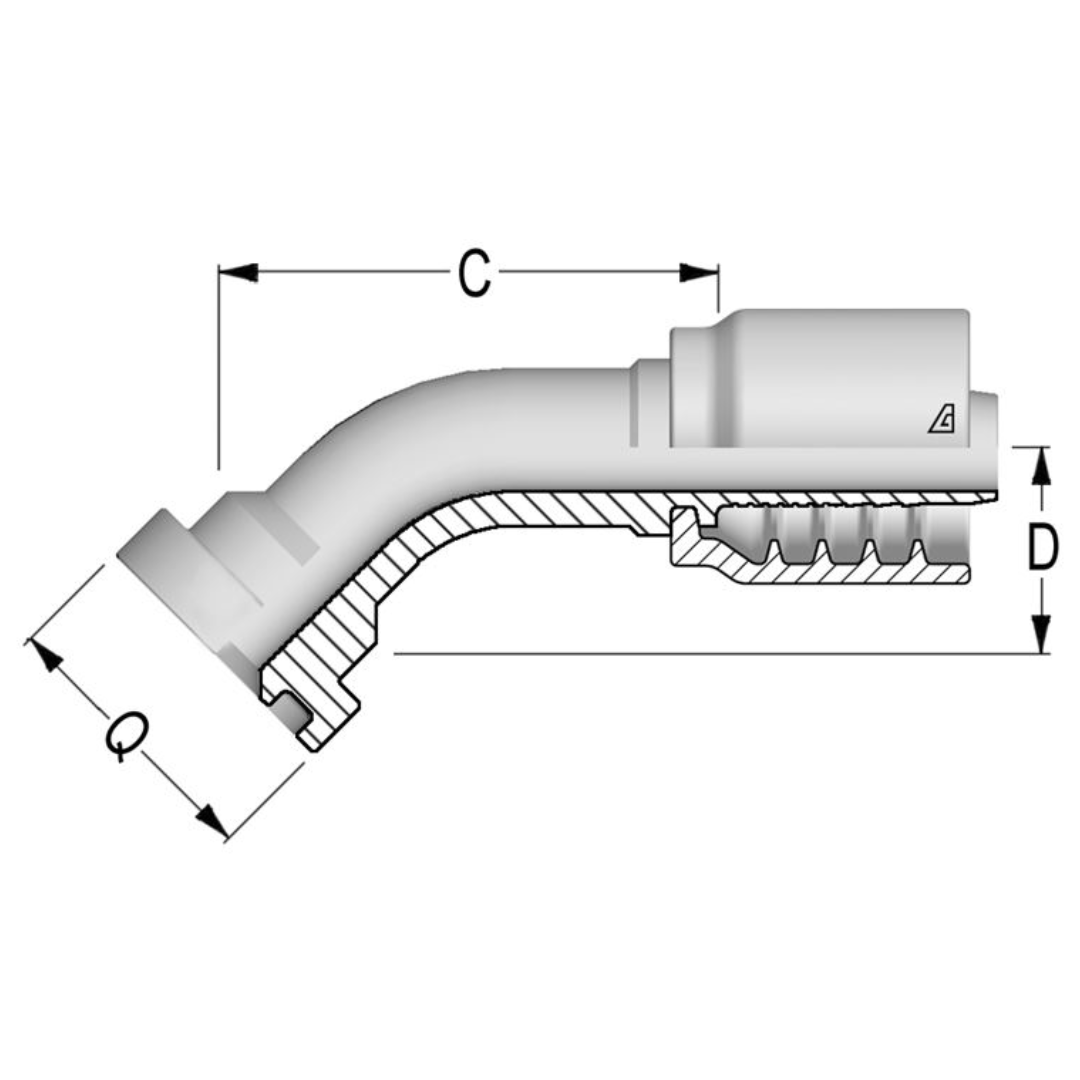

The Alfagomma One-Piece AlfaCrimp B-C624 Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° SAE 6000PSI J518 Code 62 flange. This fitting uses a non-skive crimp design, which means there’s no need to remove or prep any part of the hose before installation, making it faster and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 45° SAE 6000PSI J518 Code 62 flange ensures a durable, reliable connection, making this fitting ideal for high-pressure fluid power systems where secure, long-lasting seals are essential.
