Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | B-FM9H |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 4.72 |
| Width | 0.75 |
| Weight | 0.68 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M30x2.0 (-S20) |
| Side 2 Type | HEAVY DUTY DIN TUBE |
Description

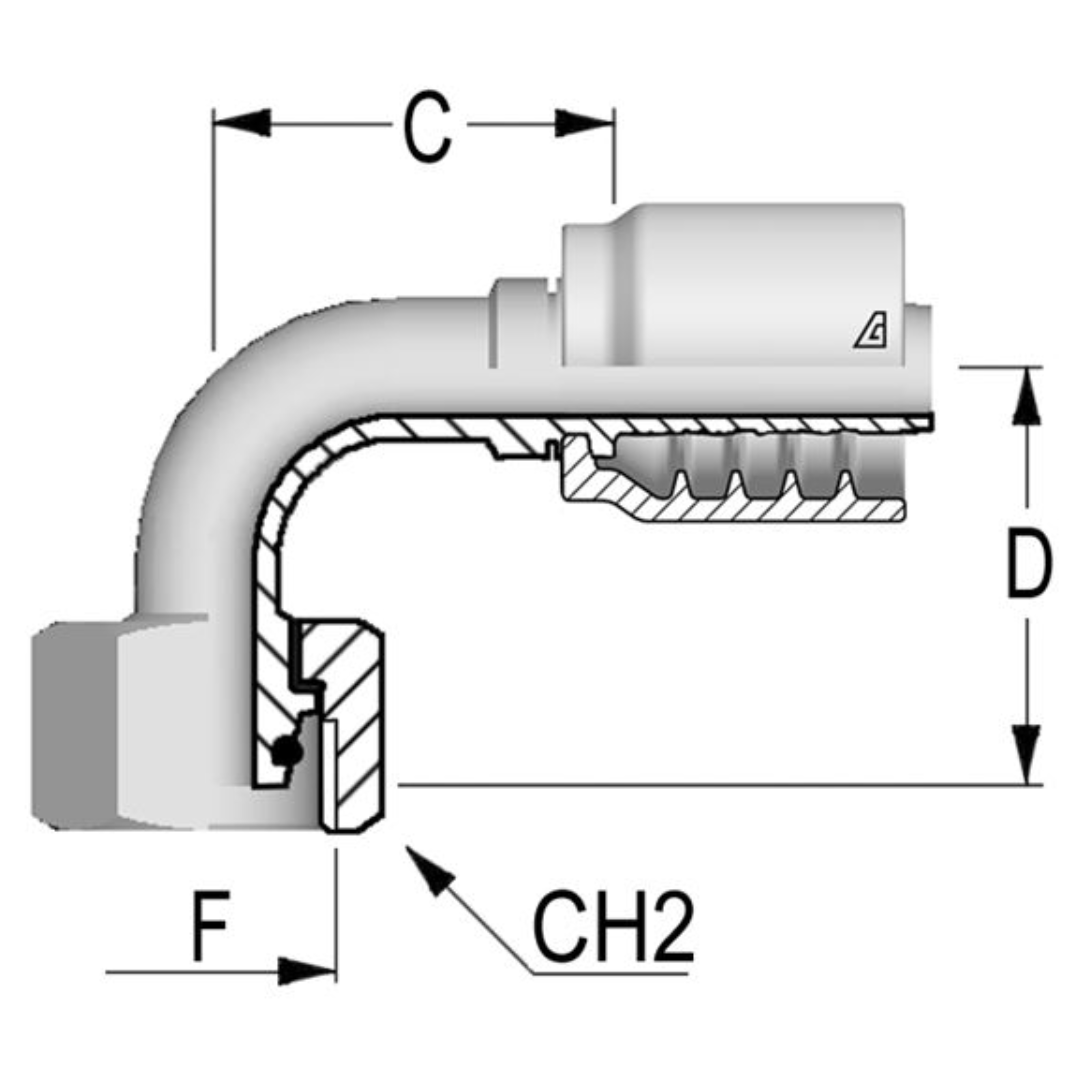

The Alfagomma One-Piece AlfaCrimp B-FM9H Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° Metric Female 24° cone with an O-ring, following the Heavy DIN 3865 standard. This fitting uses a non-skive crimp design, meaning you don’t need to remove or prep any part of the hose before installation, saving time and making the process more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a tight, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering increased strength and resistance to high pressure. The 90° Metric Female 24° cone with O-ring ensures a durable and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require long-lasting, secure connections.
