Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | B-FM9L |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 5.06 |
| Width | 0.75 |
| Weight | 0.53 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M26x1.5 (-L18) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

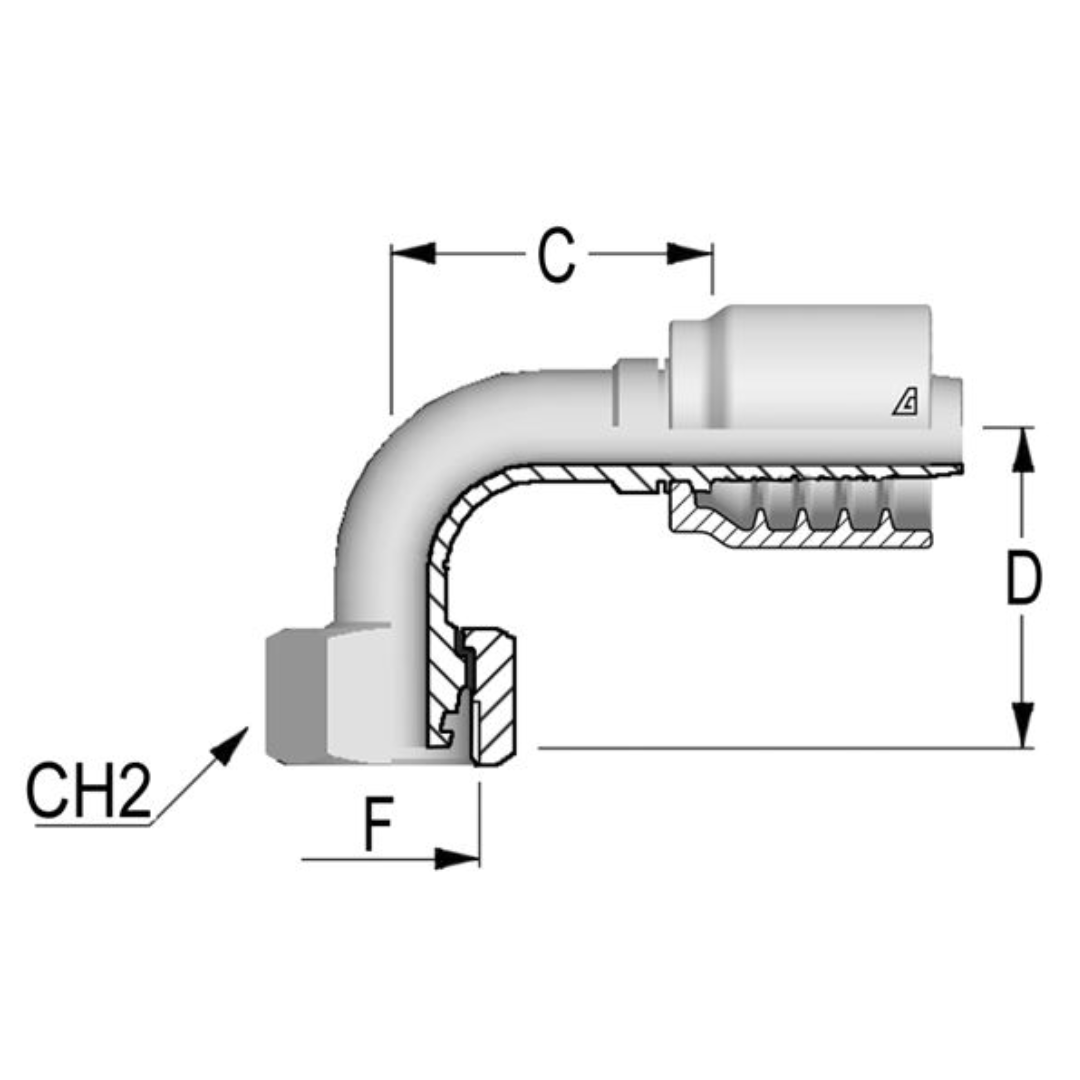

The Alfagomma One-Piece AlfaCrimp B-FM9L Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° Metric Female 24° cone with an O-ring, following the Light DIN 3865 standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making it quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, which provide extra strength and resistance to pressure. The 90° Metric Female 24° cone with O-ring ensures a reliable, durable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
