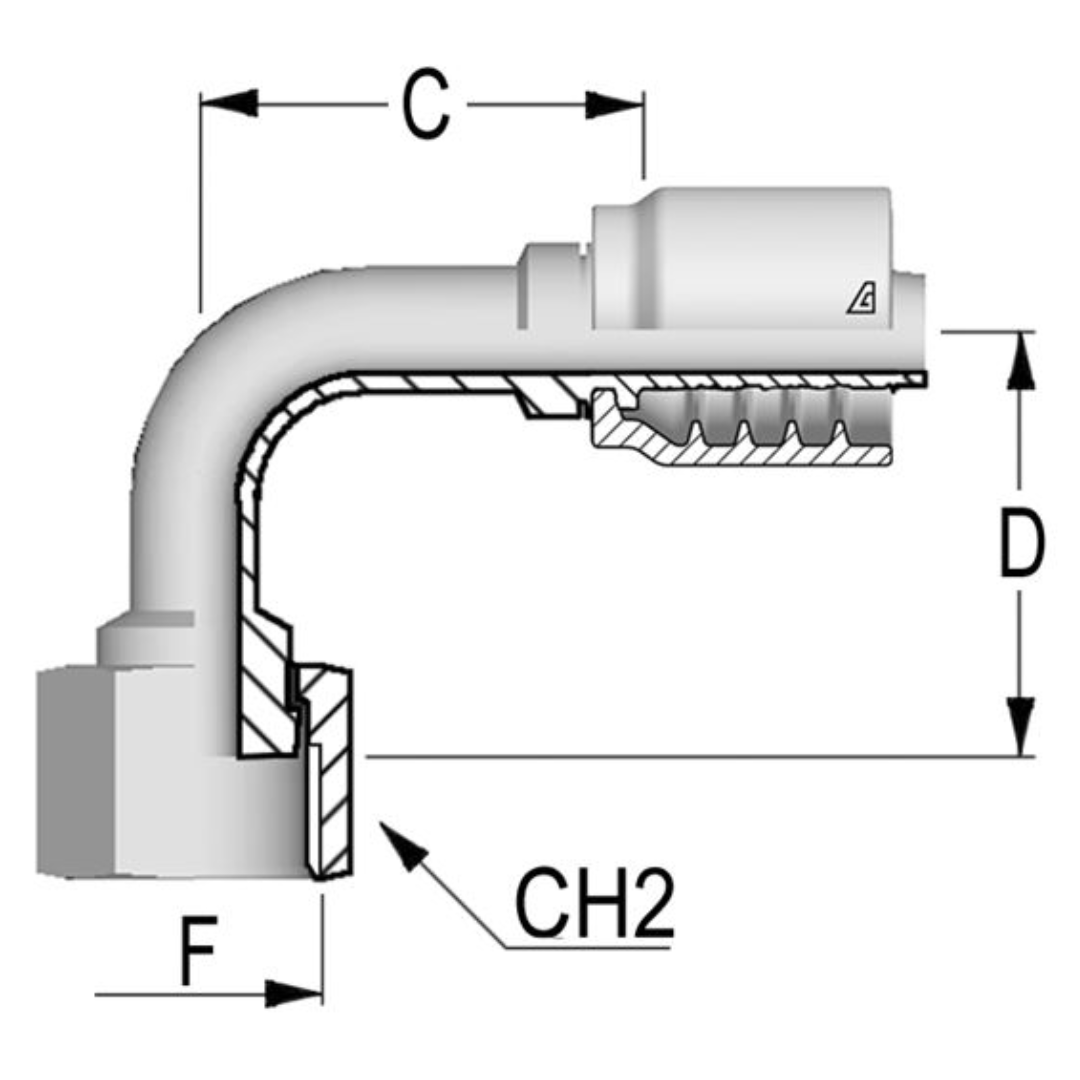

B-1012-FO9S : Alfagomma 90-Degree Steel Fitting, 5/8 (-10) Hose x 1 3/16-12 (-12) Female ORFS Short Drop
Roll over image to zoom in Click on image to zoom
B-1012-FO9S : Alfagomma 90-Degree Steel Fitting, 5/8 (-10) Hose x 1 3/16-12 (-12) Female ORFS Short Drop

B-1012-FO9S : Alfagomma 90-Degree Steel Fitting, 5/8 (-10) Hose x 1 3/16-12 (-12) Female ORFS Short Drop

Save $50.27
AlfagommaSKU: B-1012-FO9S
3-5 Days
Price:
$31.77 $82.04

Product Details

Data Sheet Click here to download
Usually Ships Within 3-5 Days
Factory Location Batavia, Illinois
Material Steel
Shape 90-Degree
Fitting Style Swivel
Series B-FO9S
Country of Manufacture Italy
Height 0.75
Length 5.46
Width 0.75
Weight 0.71
Side 1 Size 5/8 (-10)
Side 1 Type Hose
Side 2 Gender Female
Side 2 Size 1 3/16-12 (-12)
Side 2 Type ORFS

Description

The Alfagomma One-Piece AlfaCrimp B-OF9S Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° ORFS (O-Ring Face Seal) female connection with a short drop design. This fitting uses a non-skive crimp, which means there’s no need to remove or prepare any part of the hose before installation, making it quicker and more convenient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing strength and resistance to pressure. The 90° ORFS female connection with a short drop offers a compact, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications where space and secure, leak-proof connections are important.
