Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | B-FO45 |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 6.22 |
| Width | 0.75 |
| Weight | 0.64 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 3/16-12 (-12) |
| Side 2 Type | ORFS |
Description

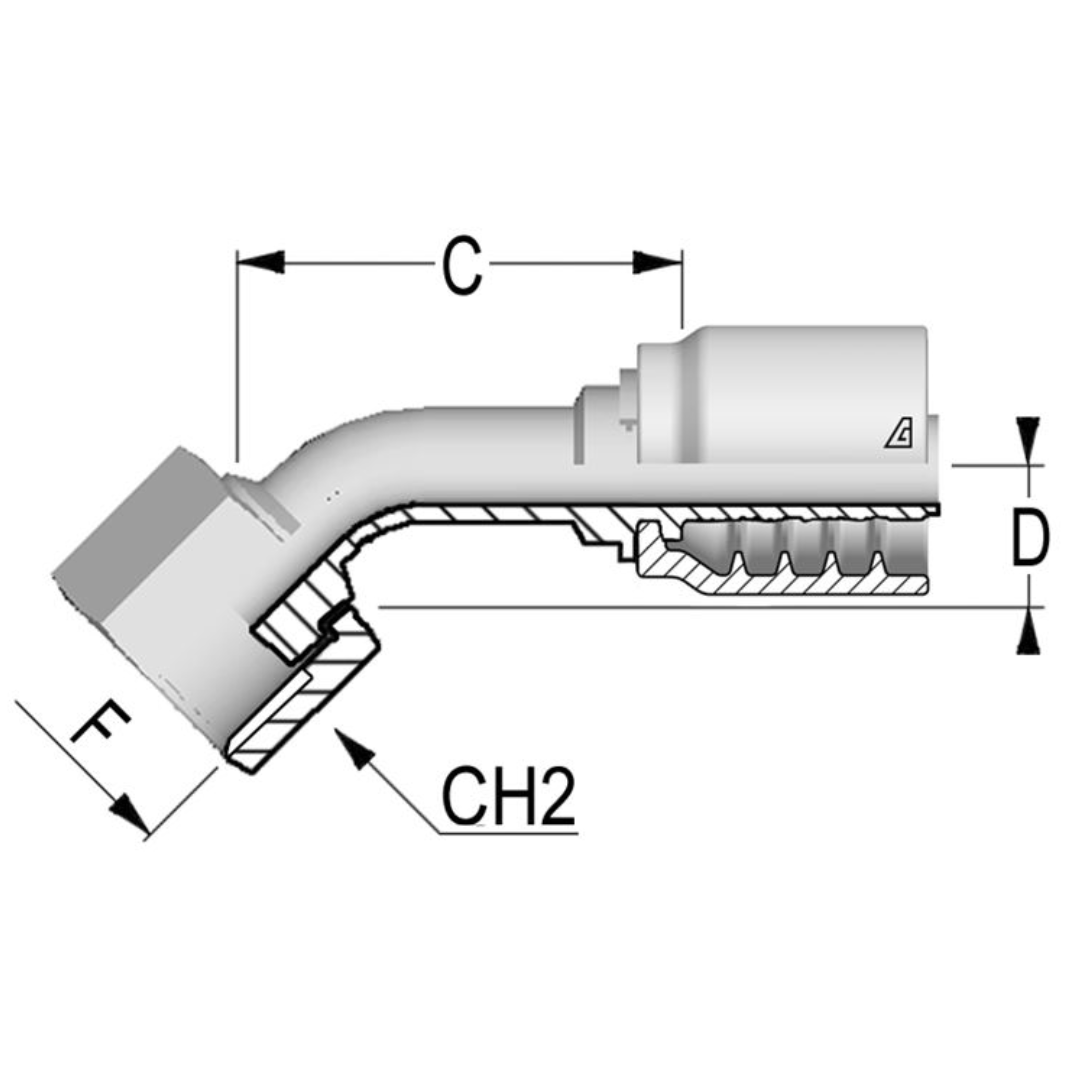

The Alfagomma One-Piece AlfaCrimp B-OF45 Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° ORFS (O-Ring Face Seal) female connection. It features a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which makes it easier and faster to use. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, which provide extra strength and resistance to high pressure. The 45° ORFS female connection ensures a secure and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require a durable, leak-proof connection.
