Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-FJ9L |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 4.92 |
| Width | 0.75 |
| Weight | 0.68 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

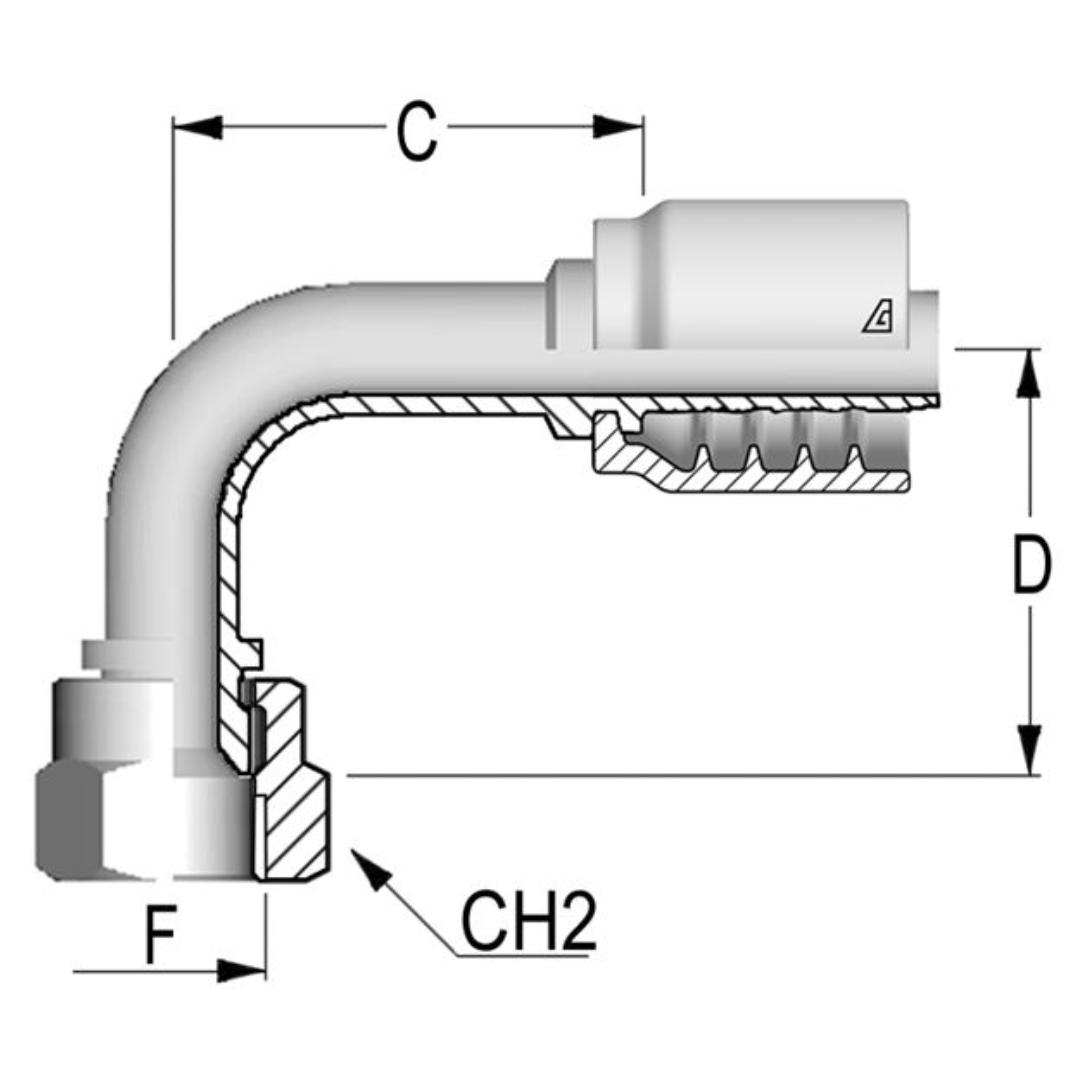

The Alfagomma One-Piece AlfaCrimp B-FJ9L Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° JIC (Joint Industrial Council) female 37° seat with a long drop design. This fitting uses a non-skive crimp, which means there’s no need to remove or prep any part of the hose before installation, making it easier and faster to use. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° angle and long drop design make this fitting ideal for applications where additional space is needed, ensuring reliable and durable connections in fluid power systems and high-pressure environments.
