Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | B-FBO9 |
| Country of Manufacture | Italy |
| Height | 0.75 |
| Length | 4.72 |
| Width | 0.75 |
| Weight | 0.47 |
| Side 1 Size | 5/8 (-10) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 5/8-14 (-10) |
| Side 2 Type | BSPP |
Description

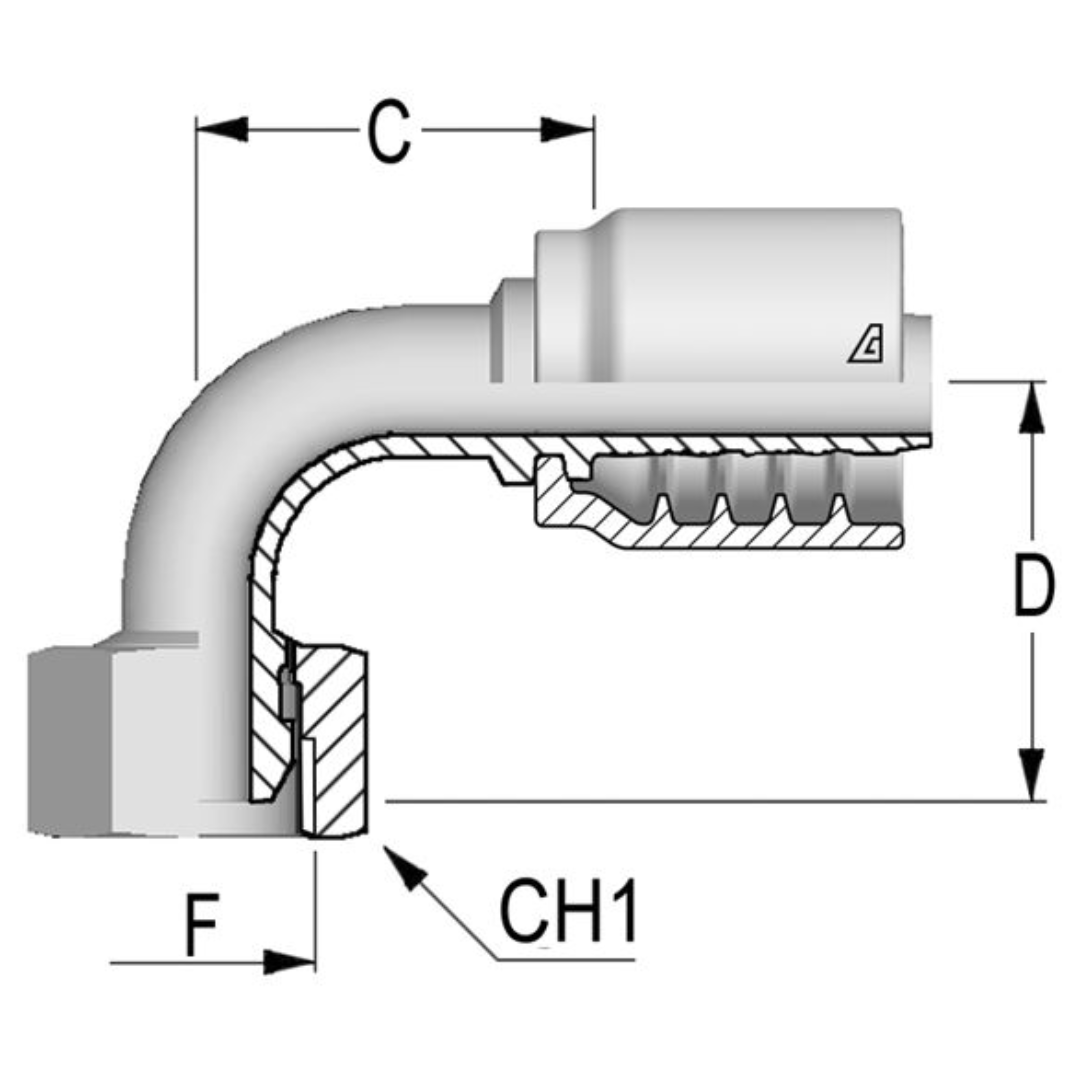

The Alfagomma One-Piece AlfaCrimp B-FBO9 Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° BSPP (British Standard Parallel Pipe) female 60° cone with an O-ring for a secure, leak-proof seal. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making it quicker and more convenient to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong and reliable connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering high strength and resistance to pressure. The BSPP female 60° cone with O-ring ensures a durable connection, making this fitting ideal for fluid power systems in high-pressure applications where a tight, long-lasting seal is essential.
