Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | B-FM4H |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 5.5 |
| Width | 0.7 |
| Weight | 0.41 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M24x1.5 (-S16) |
| Side 2 Type | HEAVY DUTY DIN TUBE |
Description

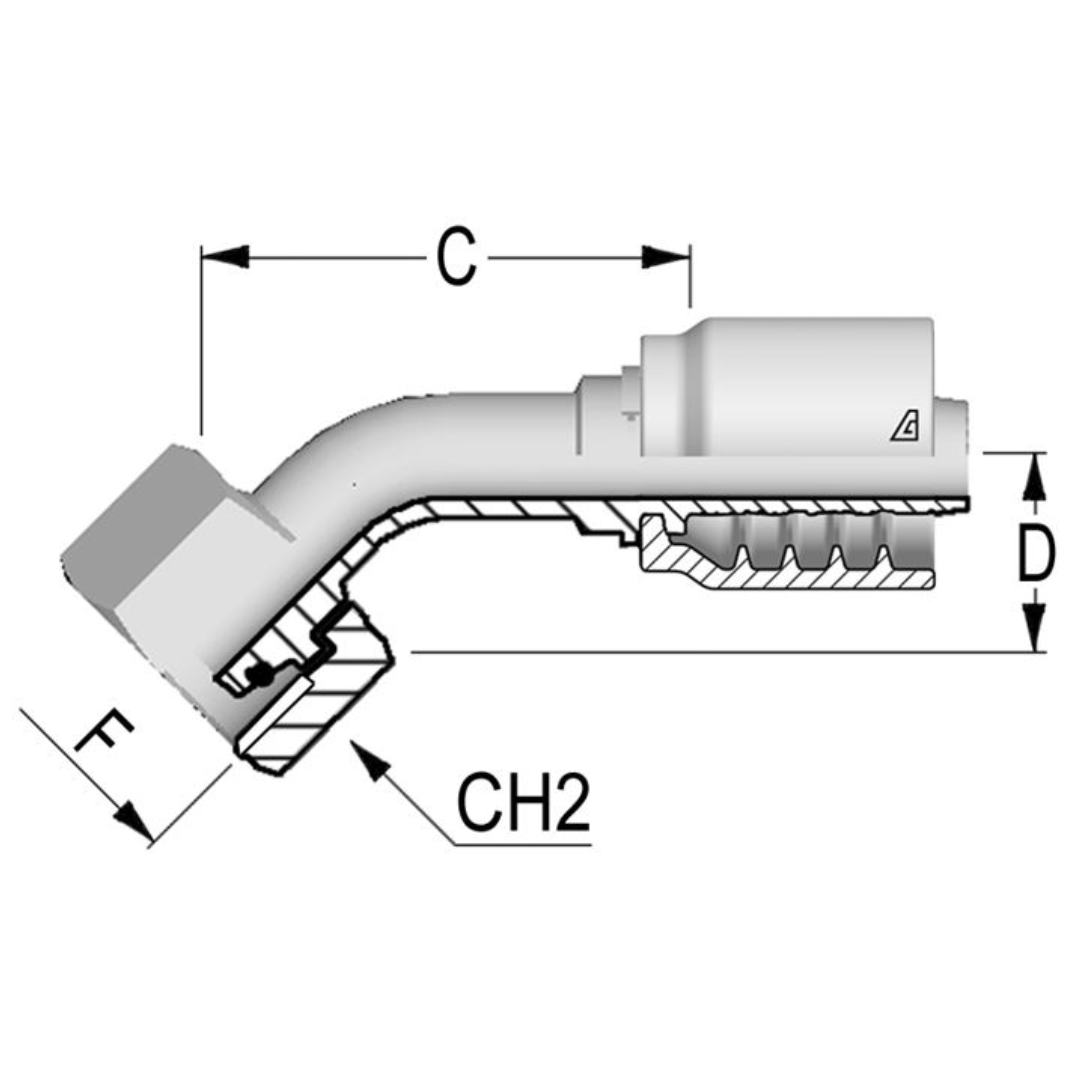

The Alfagomma One-Piece AlfaCrimp B-FM4H Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° Metric Female 24° cone with an O-ring, following the Heavy DIN 3865 standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, which makes the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, which provide extra strength and resistance to high pressure. The 45° Metric Female 24° cone with O-ring ensures a secure, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications where durability and long-lasting performance are crucial.
