Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FMOL |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 2.78 |
| Width | 0.7 |
| Weight | 0.3 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | M22x1.5 (-L15) |
| Side 2 Type | LIGHT DUTY DIN TUBE |
Description

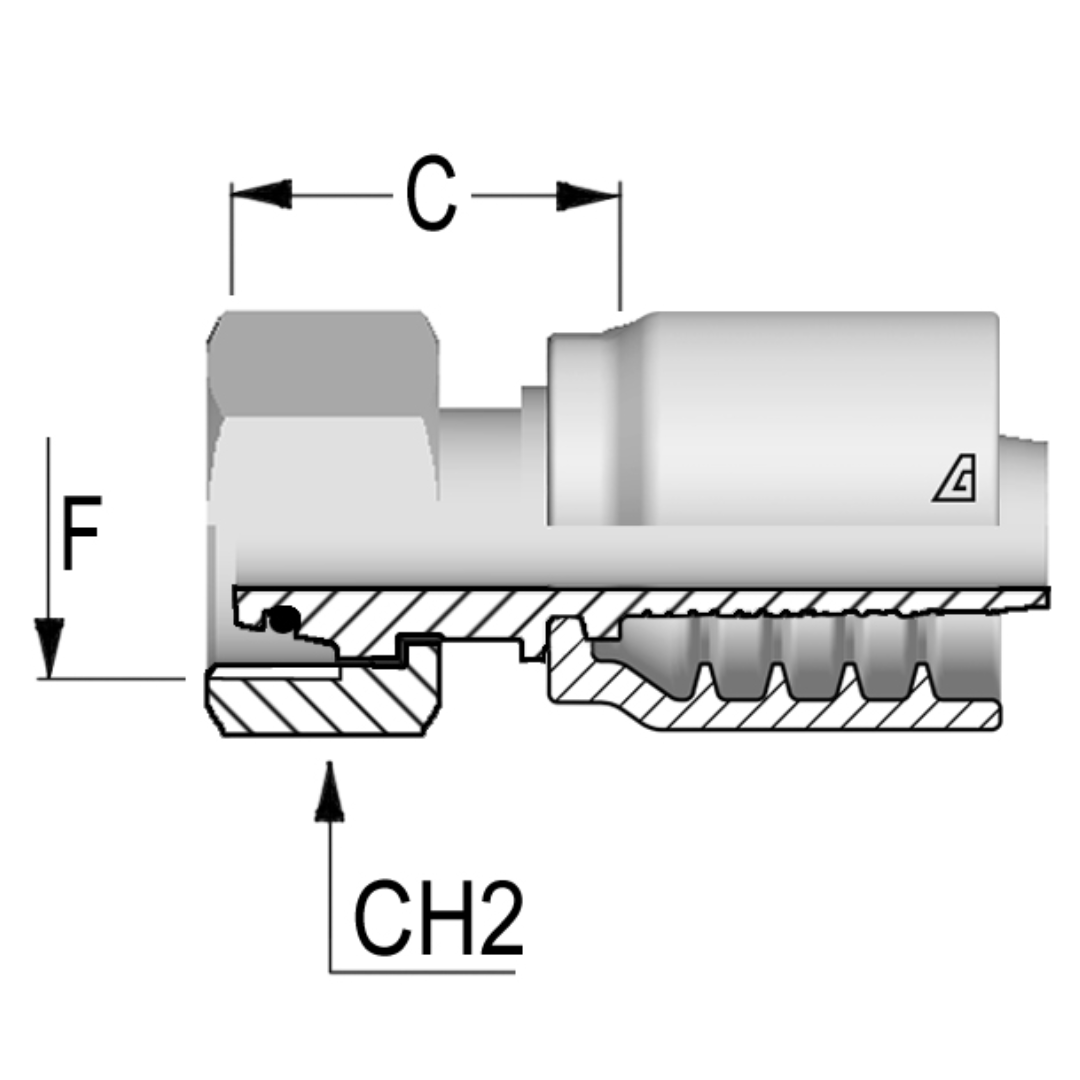

The Alfagomma One-Piece AlfaCrimp B-FMOL Fitting is a straight, carbon steel fitting designed to connect braided hoses to a Metric Female 24° cone with an O-ring for a secure, leak-proof seal, following the Light DIN 3865 standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, reliable connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing extra strength and resistance to pressure. The Metric Female 24° cone with O-ring ensures a durable and secure connection, making this fitting ideal for high-pressure fluid systems where long-lasting, leak-proof performance is essential.
