Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-FO9S |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 4.9399999999999995 |
| Width | 0.7 |
| Weight | 0.69 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1 3/16-12 (-12) |
| Side 2 Type | ORFS |
Description

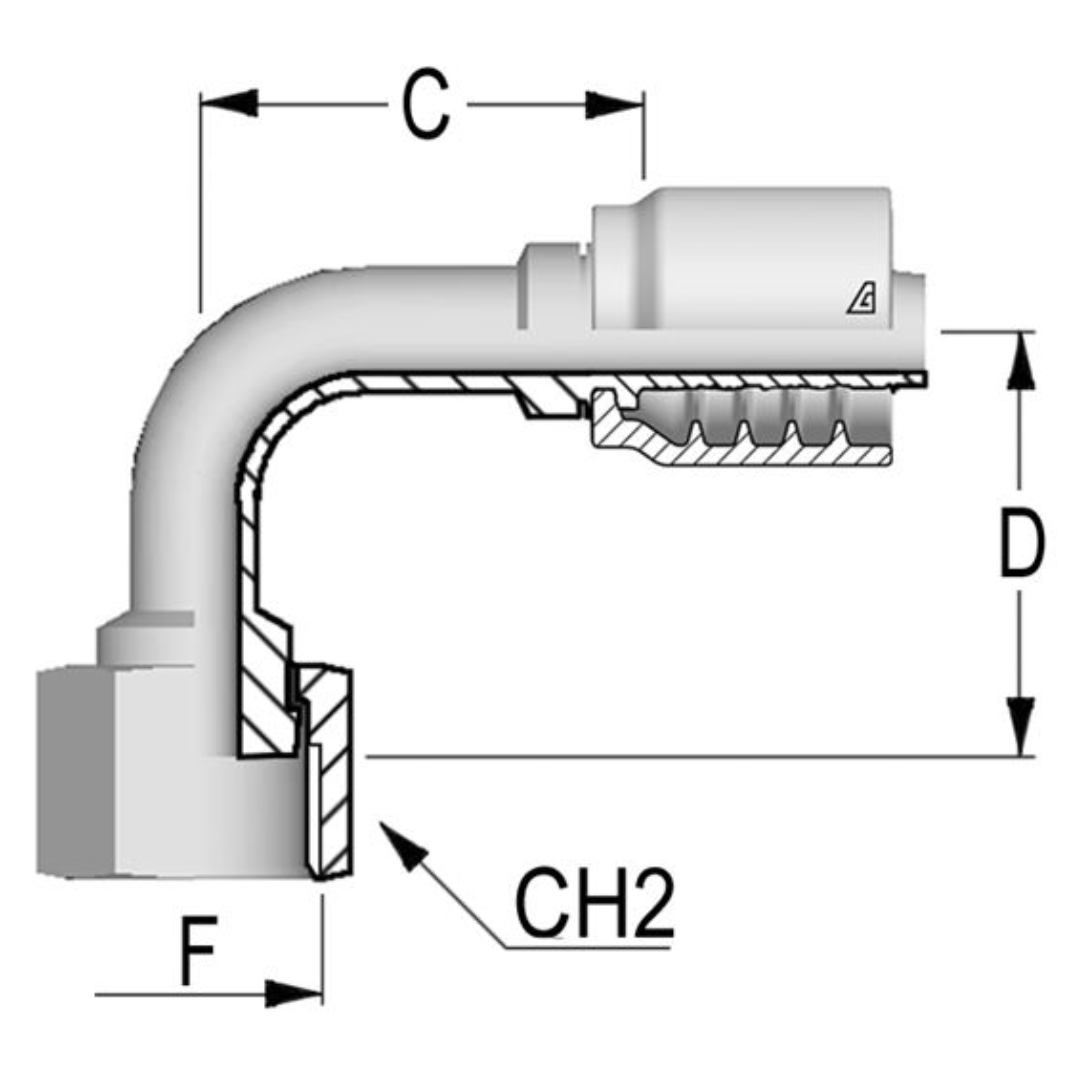

The Alfagomma One-Piece AlfaCrimp B-OF9S Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° ORFS (O-Ring Face Seal) female connection with a short drop design. This fitting uses a non-skive crimp, which means there’s no need to remove or prepare any part of the hose before installation, making it quicker and more convenient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing strength and resistance to pressure. The 90° ORFS female connection with a short drop offers a compact, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications where space and secure, leak-proof connections are important.
