Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Pressure Rating | 3000 |
| Fitting Style | Rigid |
| Series | B-C61S |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 4.14 |
| Width | 0.7 |
| Weight | 0.44 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Flange |
| Side 2 Size | 3/4" (-12) |
| Side 2 Type | Code 61 |
Description

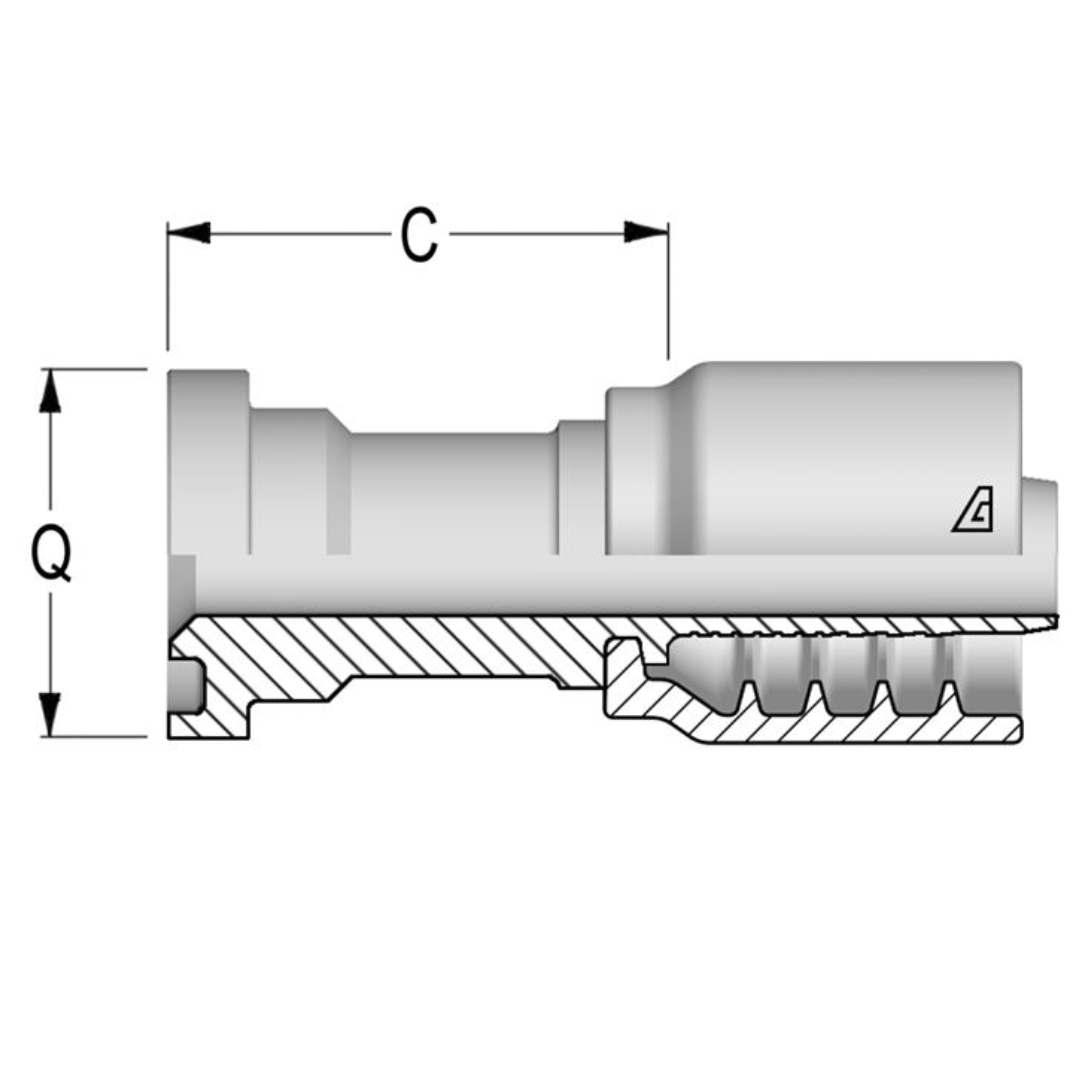

The Alfagomma One-Piece AlfaCrimp B-C61S Fitting is a straight, carbon steel fitting designed to connect braided hoses to a SAE 3000PSI J518 Code 61 flange. This fitting uses a non-skive crimp, meaning you don’t need to remove or prep any part of the hose before installation, making it quicker and more efficient to use. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering strength and resistance to pressure. The SAE 3000PSI J518 Code 61 flange provides a reliable and durable connection, making this fitting ideal for high-pressure fluid systems where secure and efficient connections are crucial.
