Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MJIC |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.4099999999999997 |
| Width | 0.7 |
| Weight | 0.28 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 7/8-14 (-10) |
| Side 2 Type | JIC |
Description

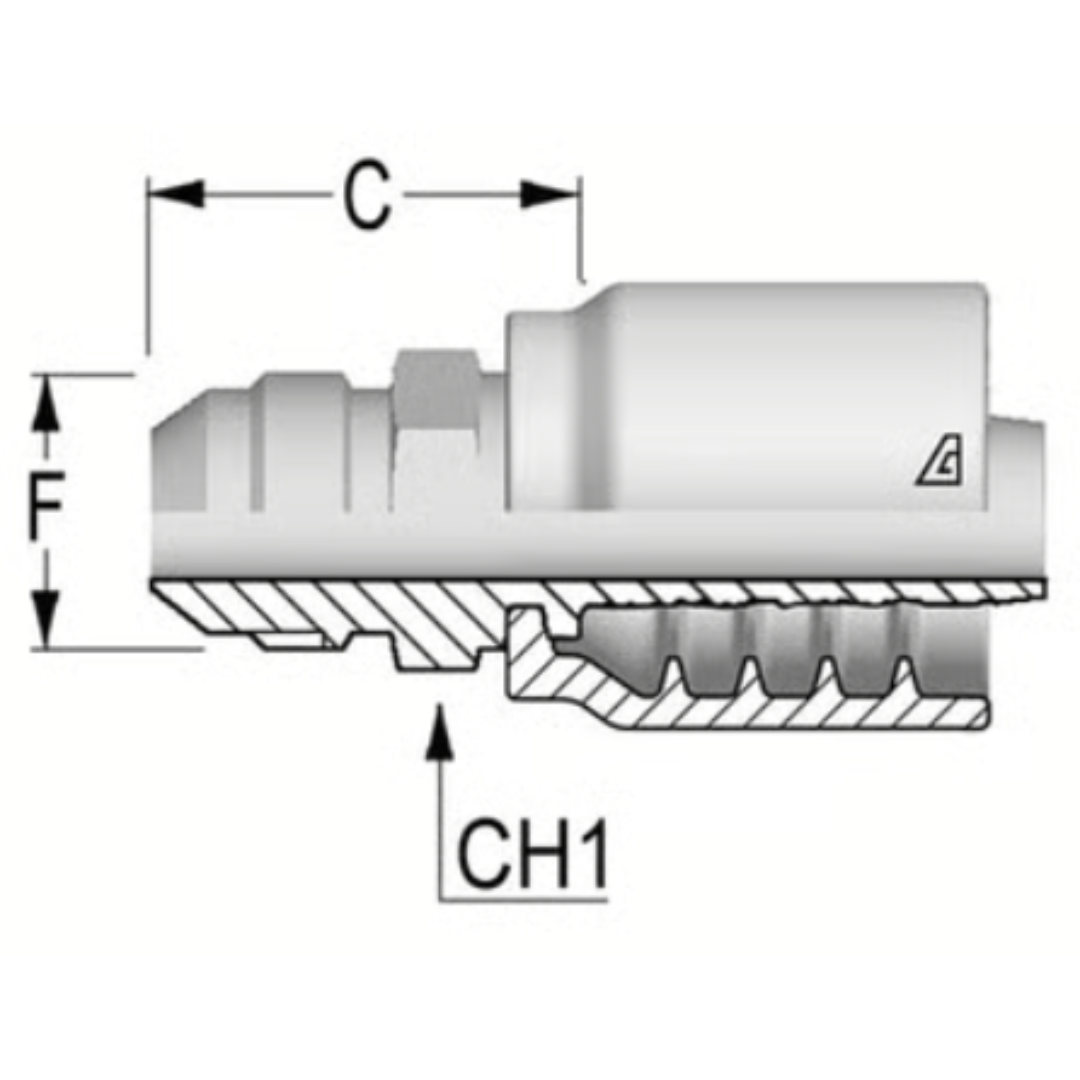

The Alfagomma One-Piece AlfaCrimp B-MJIC Fitting is a straight, carbon steel fitting designed to connect braided hoses with a male JIC (Joint Industrial Council) 37° cone connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process quicker and easier. A crimp fitting works by securely compressing the hose onto the fitting, creating a tight, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing enhanced strength and resistance to pressure. The JIC male 37° cone ensures a secure and reliable connection in fluid power systems, making this fitting ideal for high-pressure applications and hose repairs.
