Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-FO9L |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 4.56 |
| Width | 0.7 |
| Weight | 0.5 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1-14 (-10) |
| Side 2 Type | ORFS |
Description

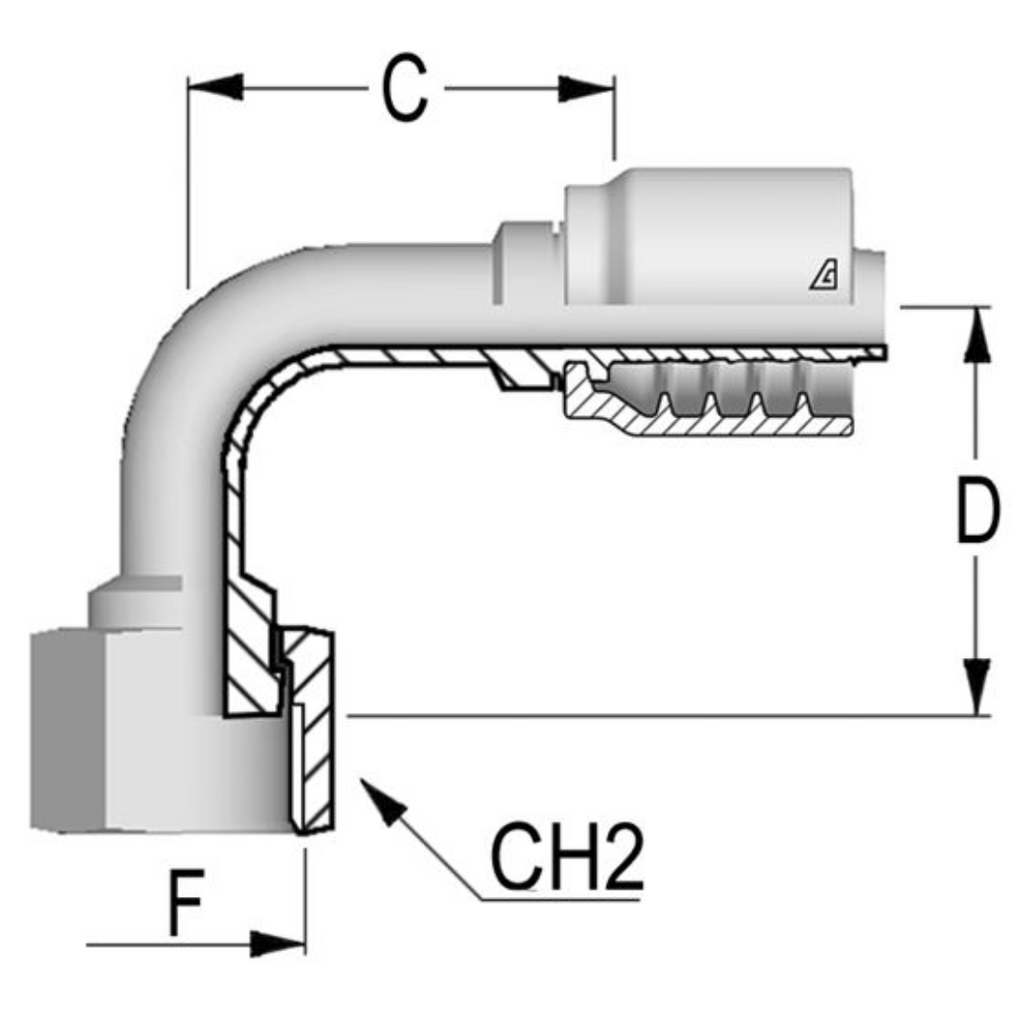

The Alfagomma One-Piece AlfaCrimp B-OF9L Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° ORFS (O-Ring Face Seal) female connection with a long drop design. This fitting uses a non-skive crimp, meaning there’s no need to remove or prep any part of the hose before installation, saving you time and effort. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The 90° ORFS female connection with a long drop design ensures a reliable, secure seal, making this fitting ideal for fluid power systems and high-pressure applications that require a sturdy, dependable connection in situations where extra hose length is needed.
