Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-MPS9 |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 2.17 |
| Width | 0.7 |
| Weight | 0.81 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPTF |
Description

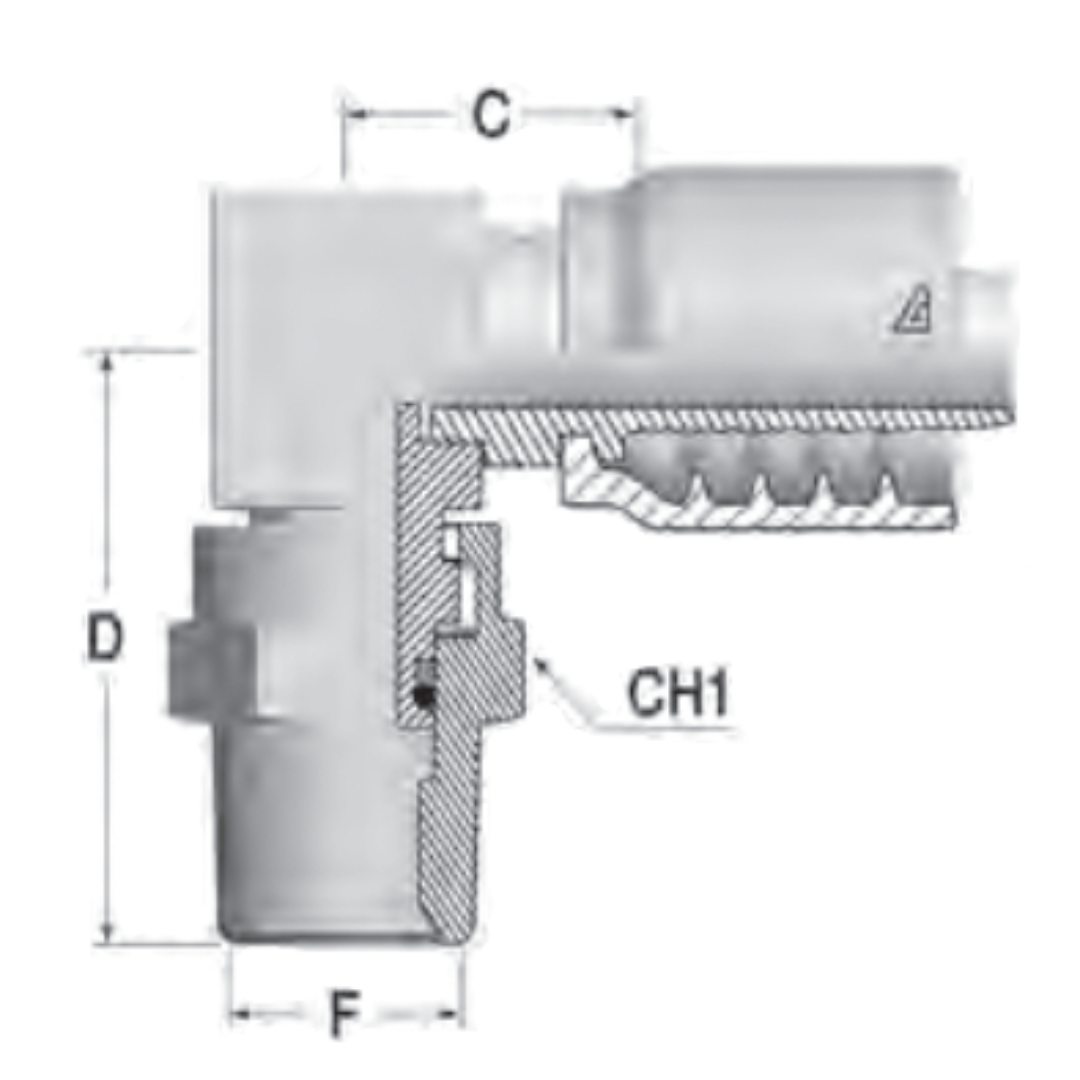

The Alfagomma One-Piece AlfaCrimp B-MPS9 Fitting is a 90-degree, carbon steel fitting designed to repair or join braided hoses, featuring a 90° compact male NPTF swivel connection with a 60° seat. The non-skive crimp design means that no preparation or removal of the hose is required before installation, making it easier and quicker to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, secure, and leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. This fitting is ideal for creating reliable, durable connections in fluid power systems, hose repairs, and custom hose assemblies, ensuring long-lasting performance.
