Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FNPR |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.51 |
| Width | 0.7 |
| Weight | 0.29 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1/2-14 (-08) |
| Side 2 Type | NPTF |
Description

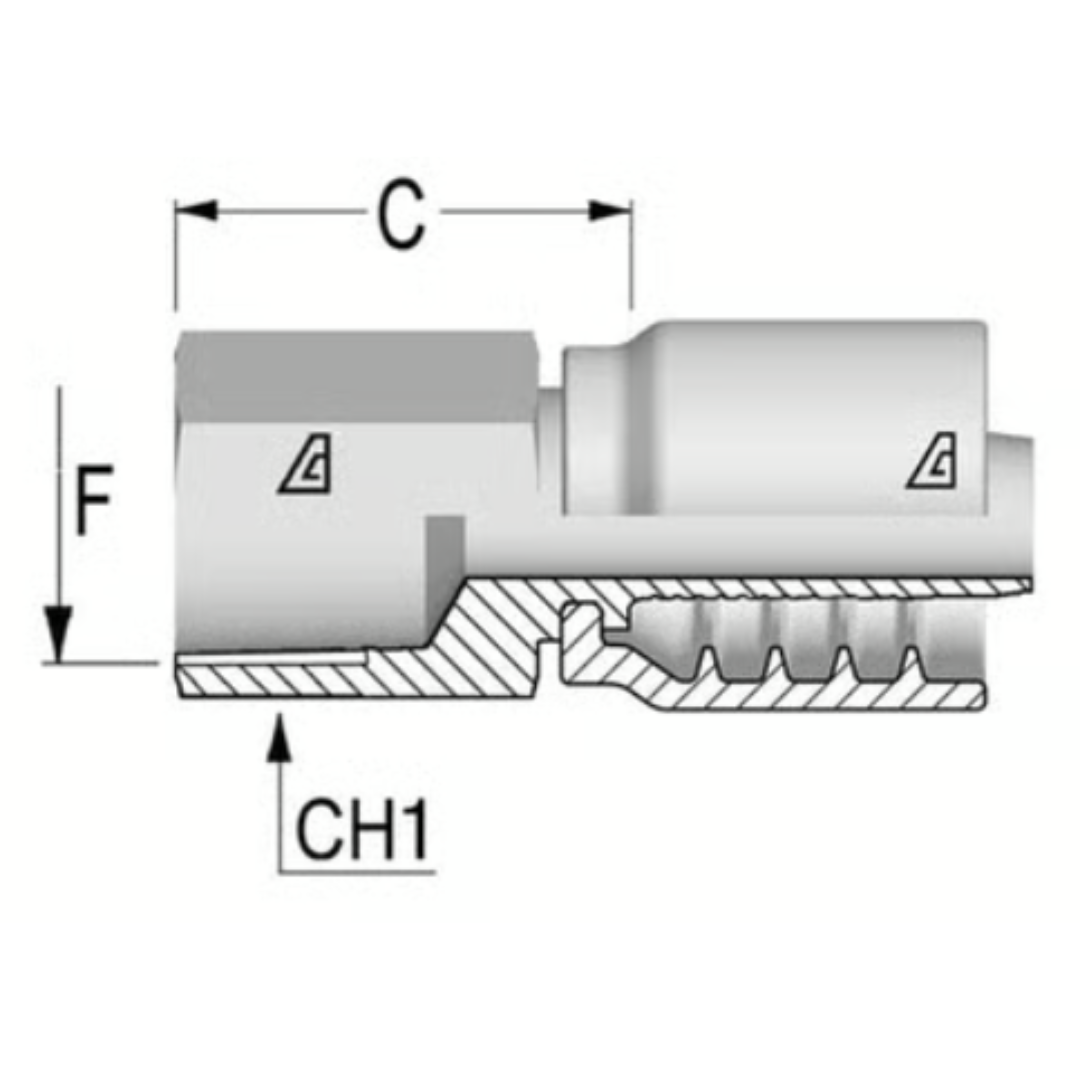

The Alfagomma One-Piece AlfaCrimp B-FNPR Fitting is a straight, carbon steel fitting designed to repair or join braided hoses, featuring a female NPTF (National Pipe Thread Fuel) connection. This fitting uses a non-skive crimp design, meaning there's no need to prepare or remove any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering increased strength and resistance to high-pressure systems. This hose mender fitting provides a reliable, durable solution for fluid power systems, hose repairs, and custom hose assemblies.
