Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-MNPS |
| Country of Manufacture | Italy |
| Height | 0.7 |
| Length | 3.7699999999999996 |
| Width | 0.7 |
| Weight | 0.33 |
| Side 1 Size | 1/2 (-08) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPTF |
Description

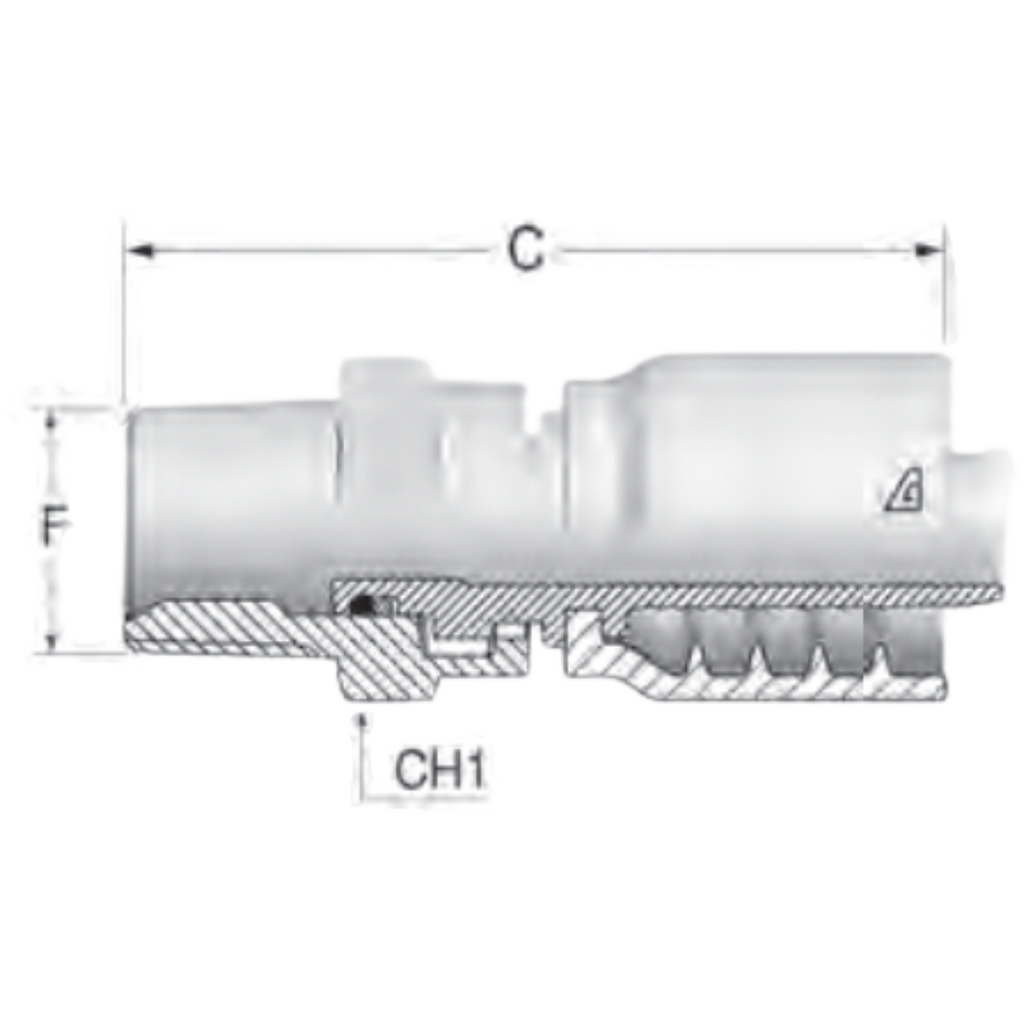

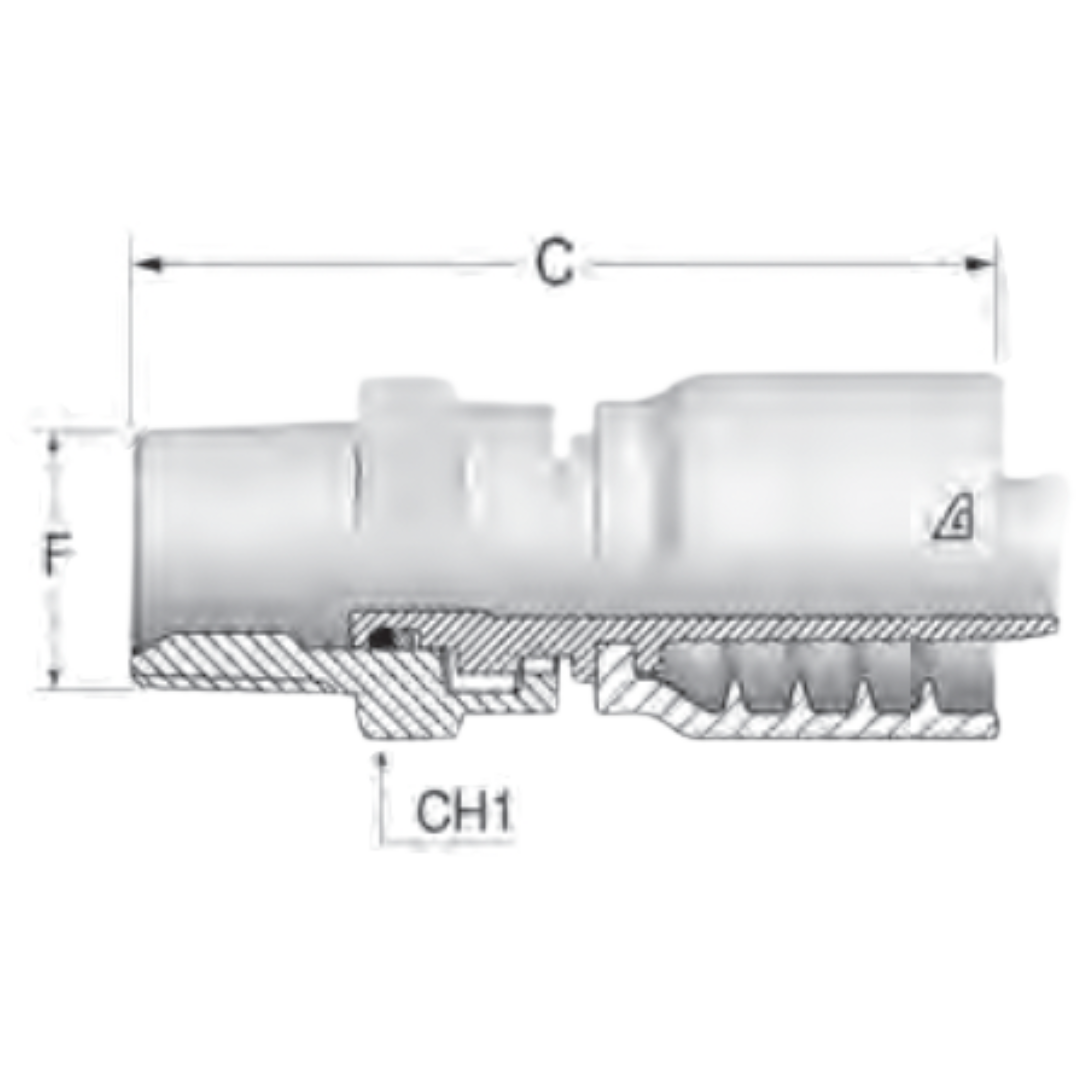

The Alfagomma One-Piece AlfaCrimp B-MNPS Fitting is a durable, straight, carbon steel fitting designed to repair or join braided hoses with a male NPTF (National Pipe Thread Fuel) swivel connection featuring a 60° seat. This fitting uses a non-skive crimp design, which means there’s no need to remove any part of the hose before installation, making the process quicker and easier. A crimp fitting works by securely squeezing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to high pressure. The AlfaCrimp B-MNPS fitting ensures a reliable and secure connection, making it ideal for fluid power applications, hose repairs, or custom hose assemblies.
