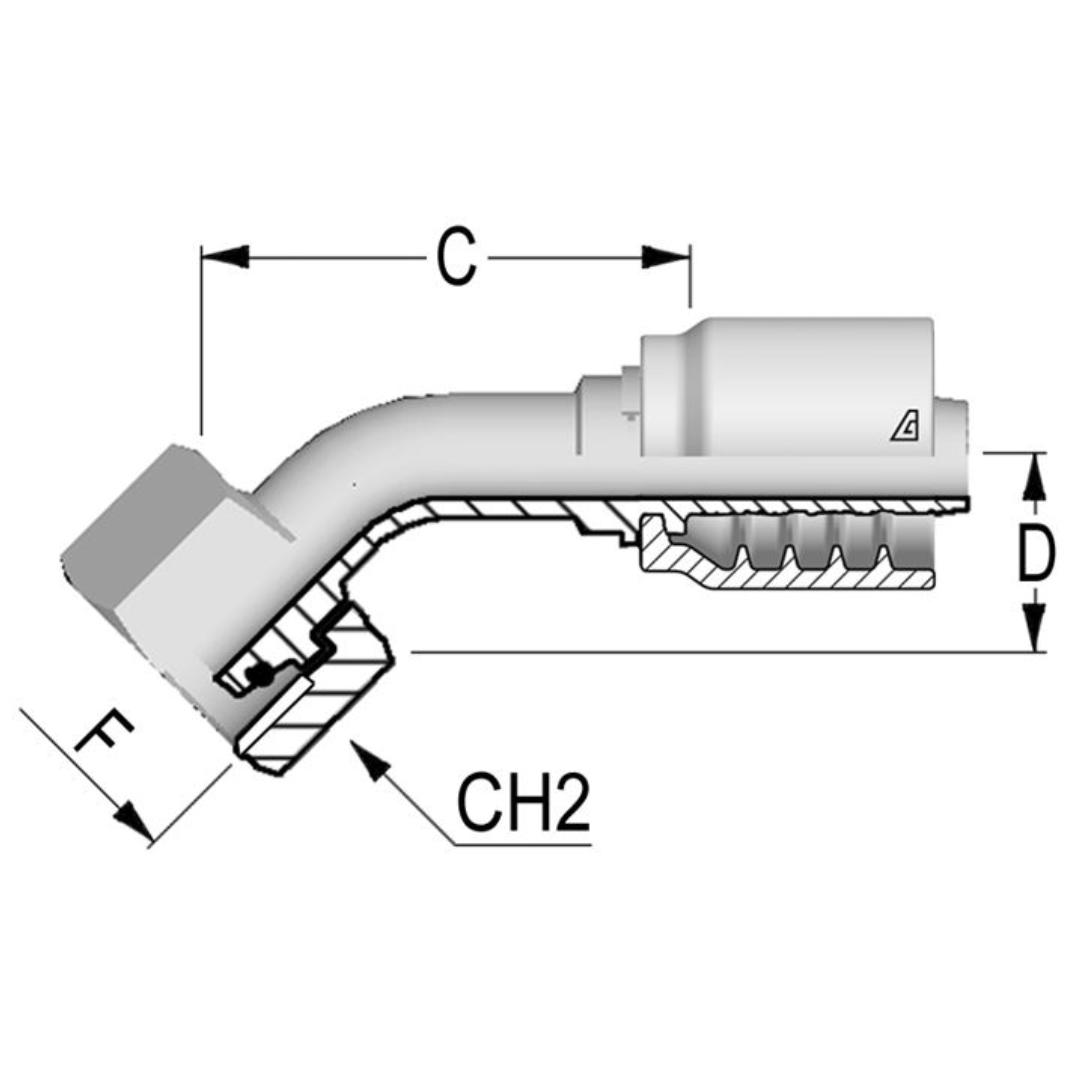

B-0620-FM4H : Alfagomma 45-Degree Steel Fitting, 3/8 (-06) Hose x M20x1.5 (-S12) Female Heavy Duty DIN Tube with O-Ring

The Alfagomma One-Piece AlfaCrimp B-FM4H Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° Metric Female 24° cone with an O-ring, following the Heavy DIN 3865 standard. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, which makes the process quicker and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, which provide extra strength and resistance to high pressure. The 45° Metric Female 24° cone with O-ring ensures a secure, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications where durability and long-lasting performance are crucial.
