Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MSPS |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.9899999999999998 |
| Width | 0.5 |
| Weight | 0.13 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Standpipe |
| Side 2 Size | 10mm (-10) |
| Side 2 Type | DIN |
Description

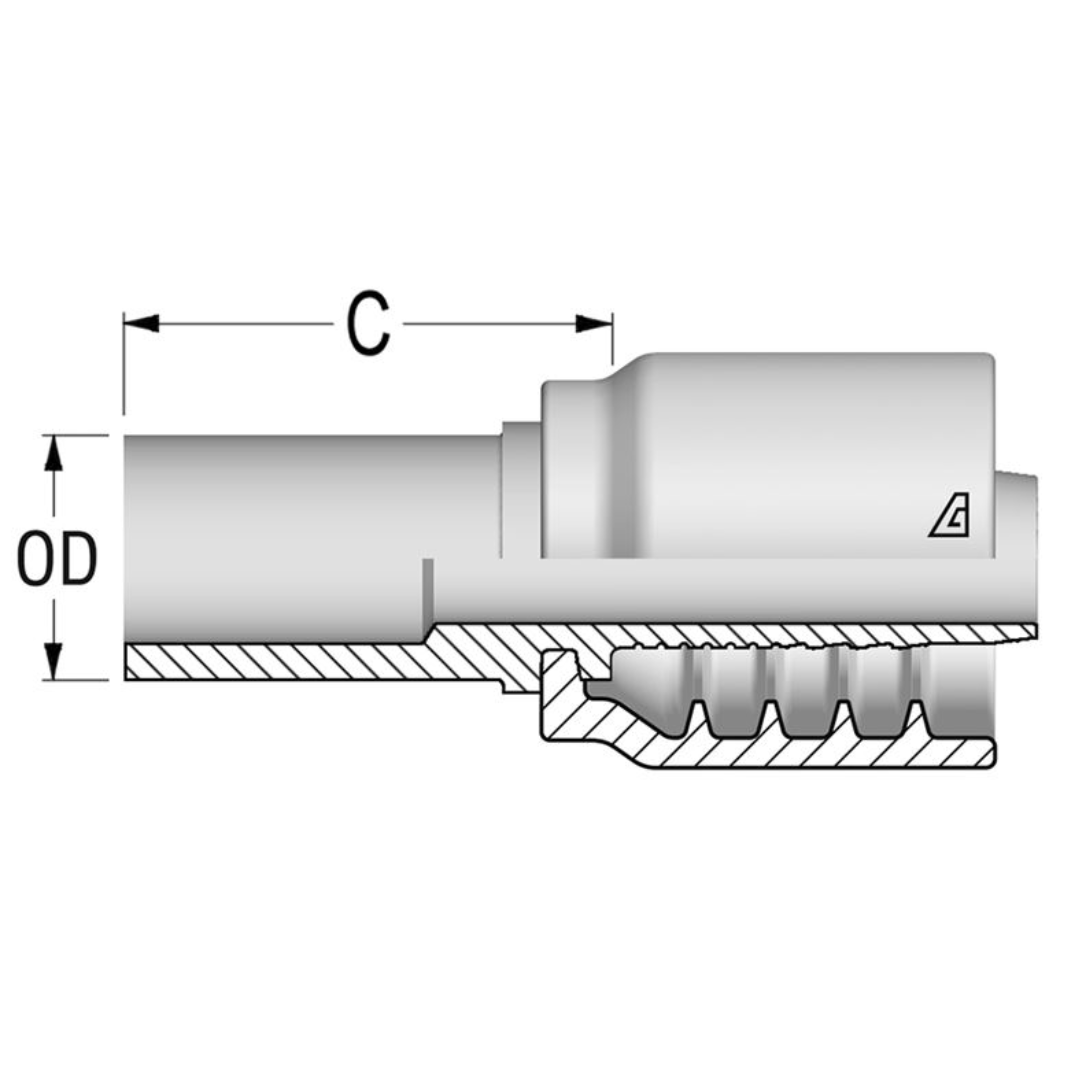

The Alfagomma One-Piece AlfaCrimp B-MSPS Fitting is a straight, carbon steel fitting designed to connect braided hoses to a Metric Straight Standpipe DIN 2353 connection. This fitting features a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making it quicker and easier to use. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, providing added strength and resistance to high pressure. The Metric Straight Standpipe DIN 2353 connection ensures a reliable, durable seal, making this fitting ideal for fluid power systems and high-pressure applications where a secure, long-lasting connection is essential.
