Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MOFS |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.59 |
| Width | 0.5 |
| Weight | 0.21 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 13/16-16 (-08) |
| Side 2 Type | ORFS |

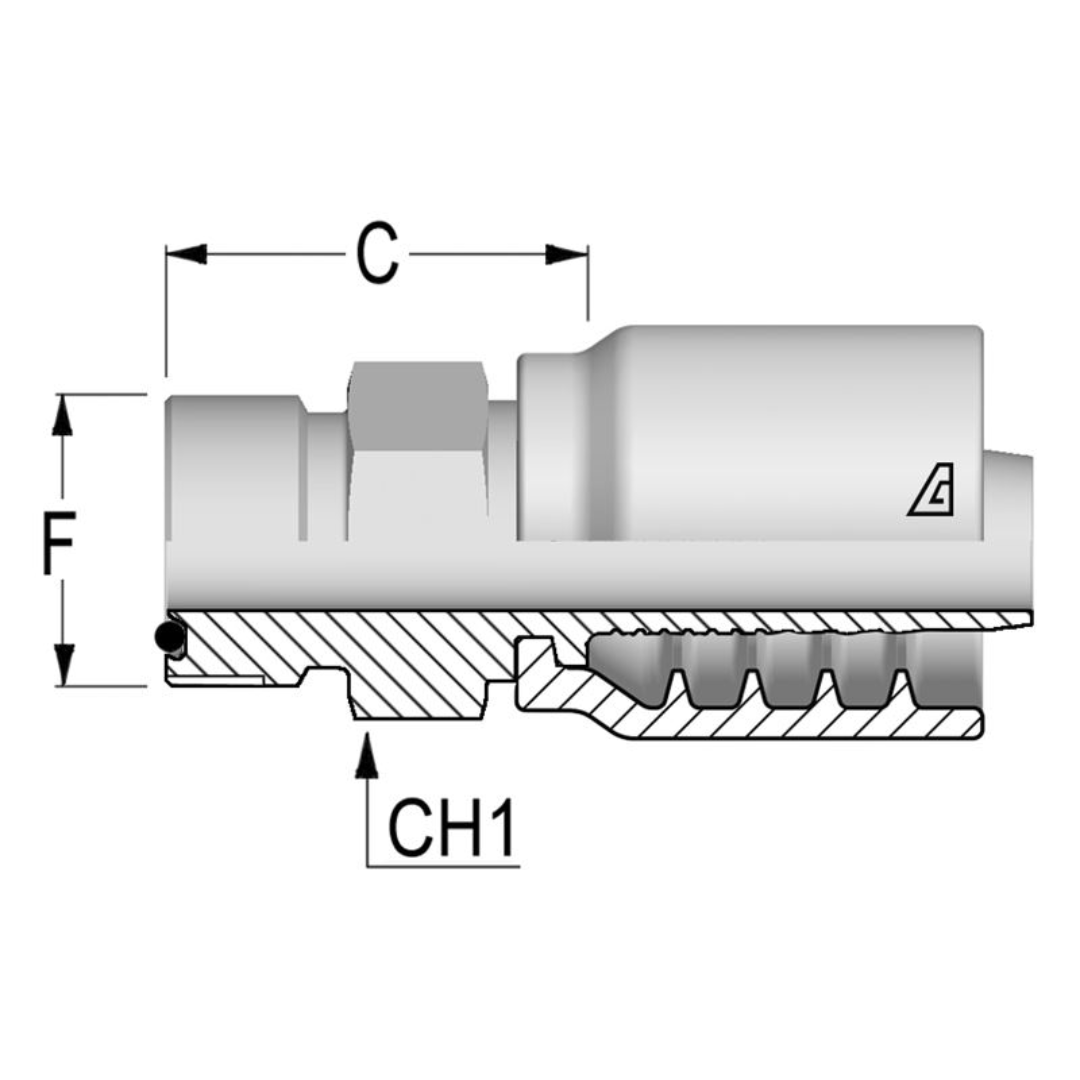

Description
The Alfagomma One-Piece AlfaCrimp B-MOFS Fitting is a straight, carbon steel fitting designed to connect braided hoses to an ORFS (O-Ring Face Seal) male connection. This fitting uses a non-skive crimp design, which means there’s no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a tight, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering high strength and resistance to pressure. The ORFS male connection provides a secure, reliable, and leak-resistant seal, making this fitting ideal for fluid power systems in high-pressure applications.
