Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Swivel |
| Series | B-FO9M |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 4.319999999999999 |
| Width | 0.5 |
| Weight | 0.3 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 13/16-16 (-08) |
| Side 2 Type | ORFS |
Description

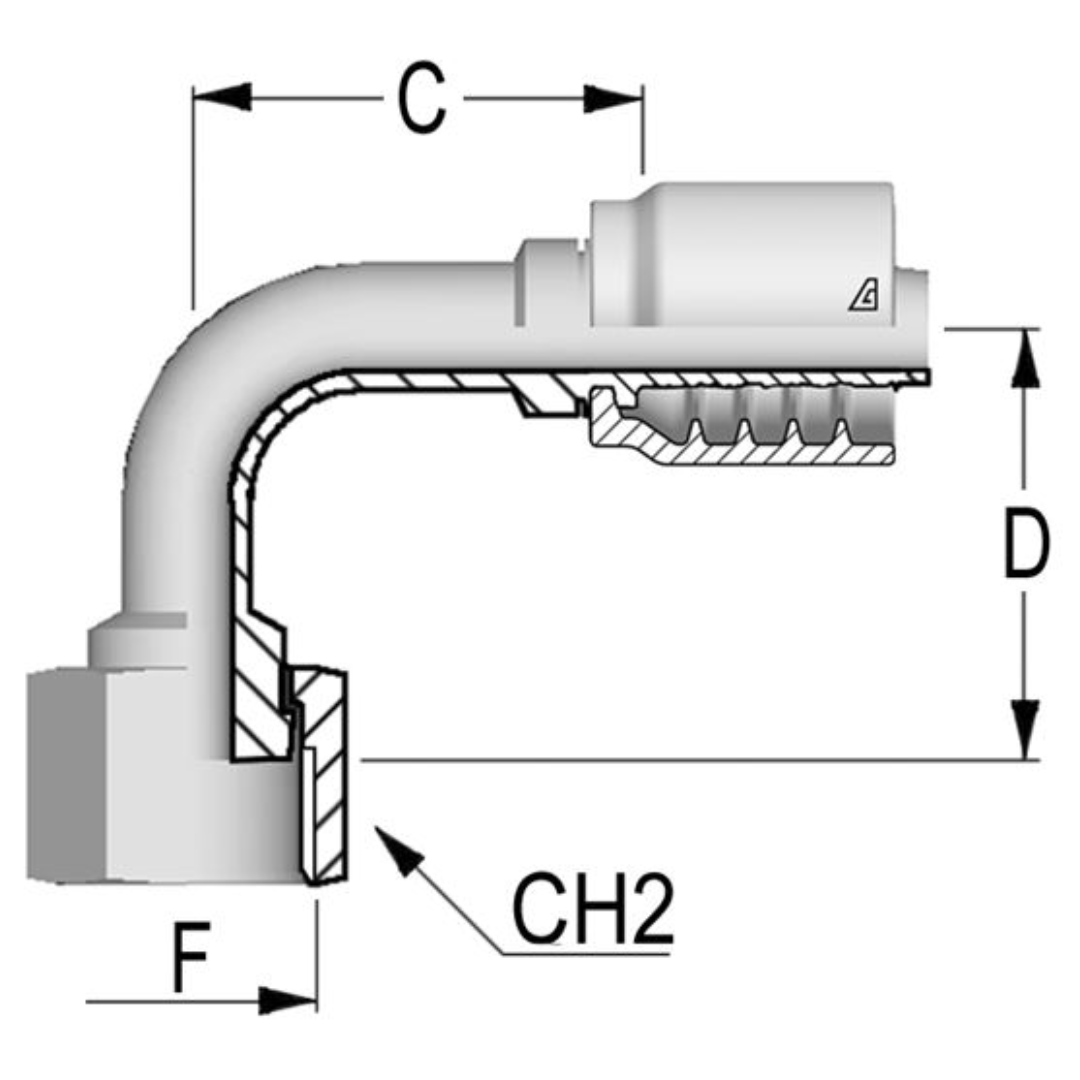

The Alfagomma One-Piece AlfaCrimp B-OF9M Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° ORFS (O-Ring Face Seal) female connection with a medium drop design. This fitting uses a non-skive crimp, which means you don’t have to remove or prepare any part of the hose before installation, making it quick and easy to use. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering added strength and resistance to high-pressure systems. The 90° ORFS female connection with a medium drop design allows for a secure and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications where a tight, dependable connection is required.
