Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MNPT |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.7399999999999998 |
| Width | 0.5 |
| Weight | 0.18 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 3/8-18 (-06) |
| Side 2 Type | NPTF |
Description

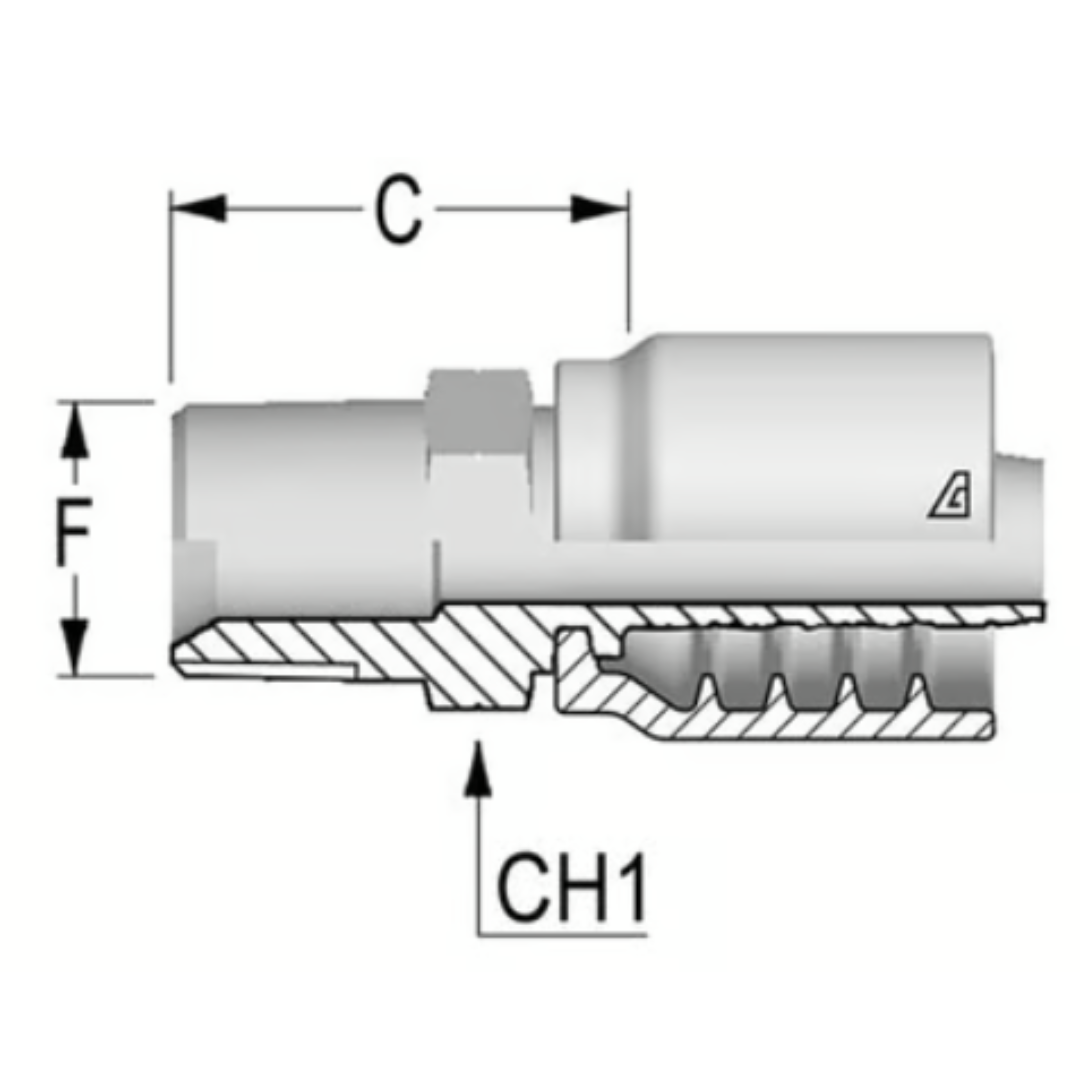

The Alfagomma One-Piece AlfaCrimp B-MNPT Fitting is a durable, straight, carbon steel fitting designed to repair or join braided hoses with a male NPTF (National Pipe Thread Fuel) connection featuring a 60° seat. This fitting uses a non-skive crimp design, which means there’s no need to remove any part of the hose before installation, saving time and effort. A crimp fitting works by tightly squeezing the hose onto the fitting, creating a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. This hose mender fitting ensures a reliable, secure connection for fluid power systems, making it ideal for hose repairs or custom hose assemblies.
