Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-FSAE |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 2.3 |
| Width | 0.5 |
| Weight | 0.23 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 5/8-18 (-06) |
| Side 2 Type | SAE 45 |
Description

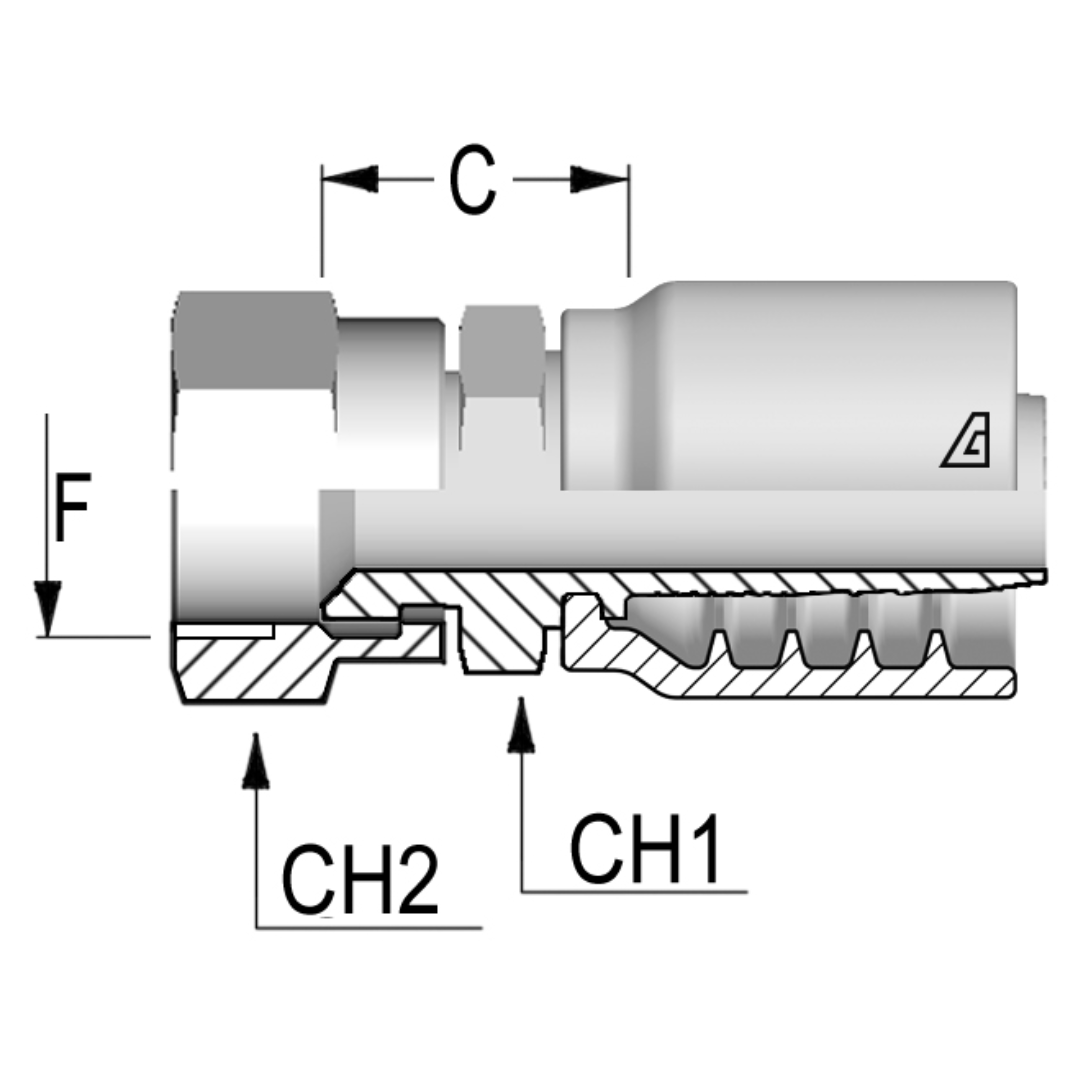

The Alfagomma One-Piece AlfaCrimp B-FSAE Fitting is a straight, carbon steel fitting designed to connect braided hoses to a 45° SAE (Society of Automotive Engineers) female swivel connection. This fitting features a non-skive crimp design, meaning there’s no need to prepare or remove any part of the hose before installation, making the process quicker and easier. A crimp fitting works by securely compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to pressure. The SAE female swivel 45° seat ensures a secure, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications.
