Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 90-Degree |
| Fitting Style | Rigid |
| Series | B-FBC9 |
| Country of Manufacture | Italy |
| Height | 0.5 |
| Length | 1.92 |
| Width | 0.5 |
| Weight | 0.16 |
| Side 1 Size | 3/8 (-06) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/8-19 (-06) |
| Side 2 Type | BSPP |
Description

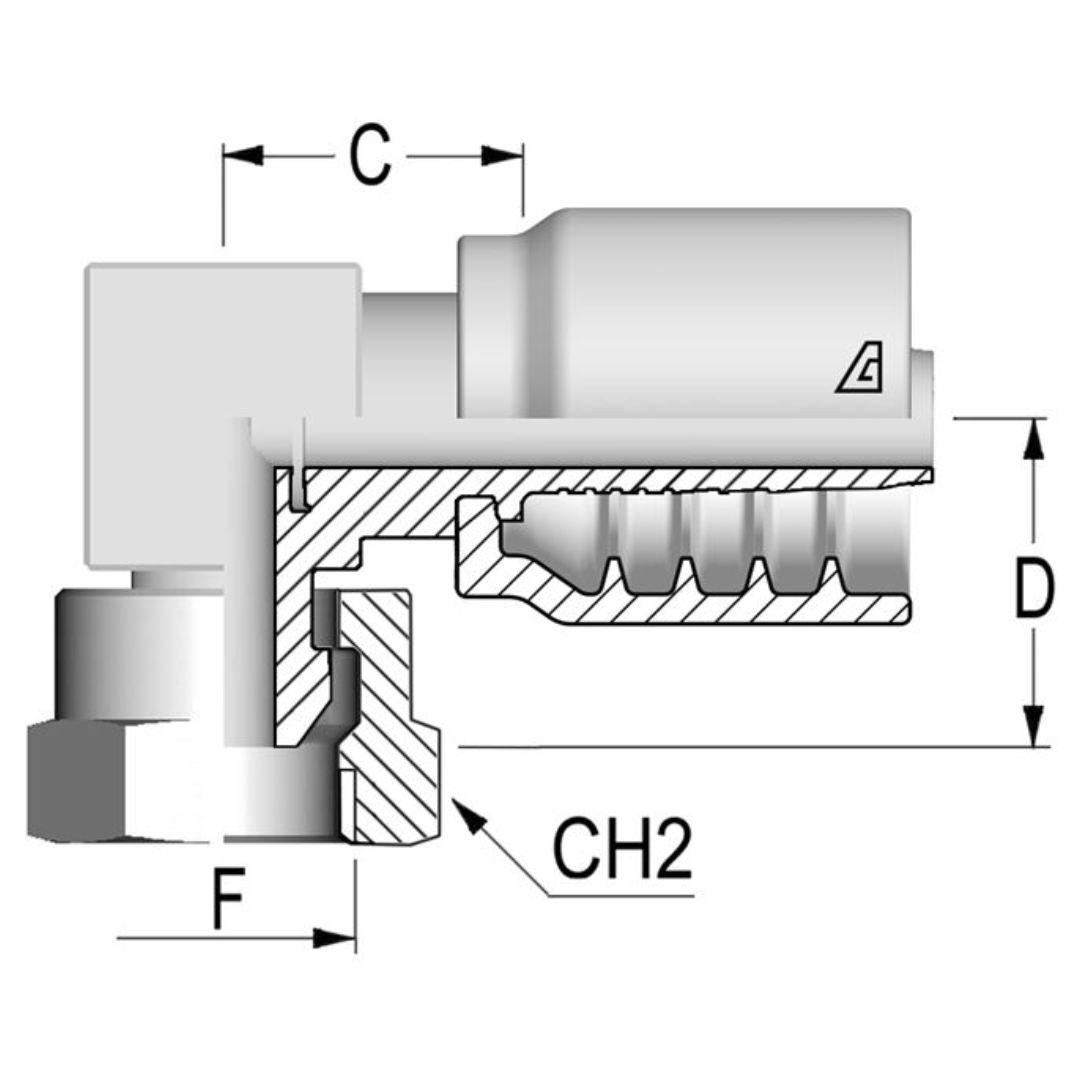

The Alfagomma One-Piece AlfaCrimp B-FBC9 Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° compact BSPP (British Standard Parallel Pipe) female 60° cone. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, saving time and making the process easier. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering high strength and resistance to pressure. The compact BSPP female 60° cone ensures a reliable, durable connection, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting seals.
