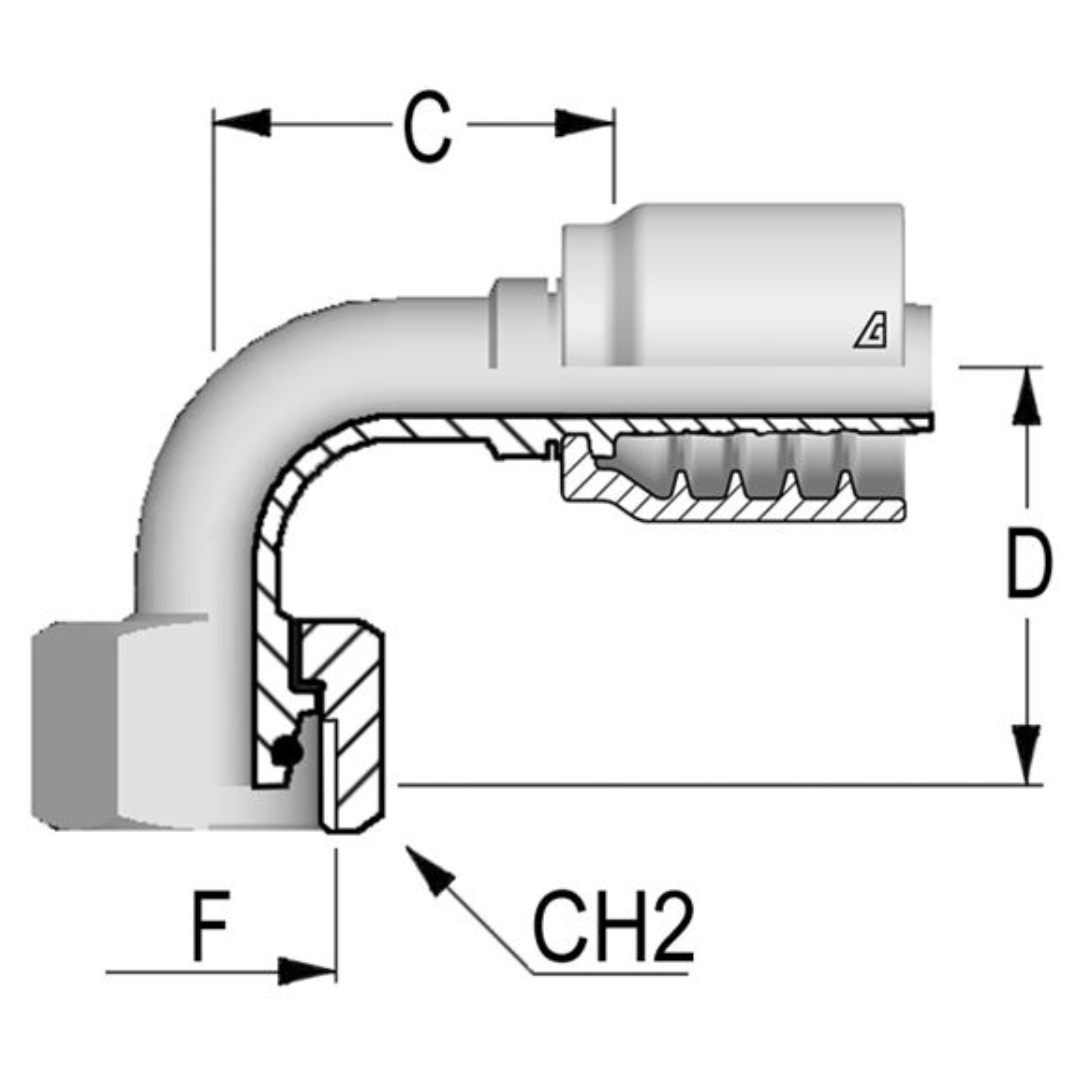

B-0520-FM9H : Alfagomma 90-Degree Steel Fitting, 5/16 (-05) Hose x M20x1.5 (-S12) Female Heavy Duty DIN Tube with O-Ring

The Alfagomma One-Piece AlfaCrimp B-FM9H Fitting is a 90-degree, carbon steel fitting designed to connect braided hoses to a 90° Metric Female 24° cone with an O-ring, following the Heavy DIN 3865 standard. This fitting uses a non-skive crimp design, meaning you don’t need to remove or prep any part of the hose before installation, saving time and making the process more efficient. A crimp fitting works by securely compressing the hose onto the fitting, creating a tight, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, offering increased strength and resistance to high pressure. The 90° Metric Female 24° cone with O-ring ensures a durable and reliable seal, making this fitting ideal for fluid power systems and high-pressure applications that require long-lasting, secure connections.
