Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MBPT |
| Country of Manufacture | Italy |
| Height | 0.35 |
| Length | 2.7399999999999998 |
| Width | 0.35 |
| Weight | 0.16 |
| Side 1 Size | 5/16 (-05) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 3/8-19 (-06) |
| Side 2 Type | BSPT |
Description

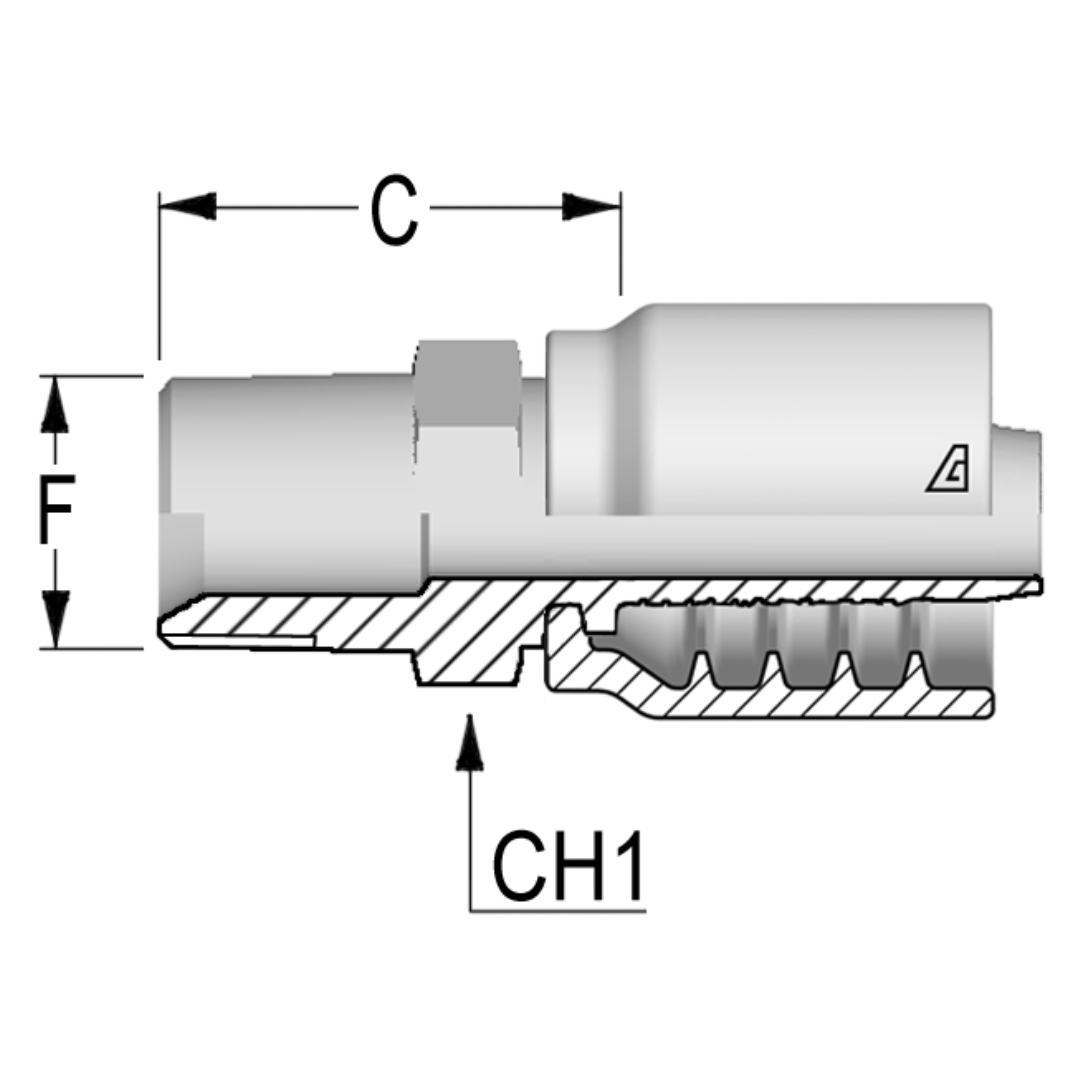

The Alfagomma One-Piece AlfaCrimp B-BSPT Fitting is a straight, carbon steel fitting designed to connect braided hoses to a BSPT (British Standard Pipe Tapered) or JIS (Japanese Industrial Standard) male tapered connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, saving time and effort. A crimp fitting works by tightly compressing the hose onto the fitting, creating a secure, leak-proof seal. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The BSPT/JIS male tapered connection ensures a strong, reliable seal, making this fitting ideal for fluid power systems and high-pressure applications where secure, long-lasting connections are essential.
