Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-FJDH |
| Country of Manufacture | Italy |
| Height | 0.35 |
| Length | 2 |
| Width | 0.35 |
| Weight | 0.16 |
| Side 1 Size | 5/16 (-05) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 9/16-18 (-06) |
| Side 2 Type | JIC |
Description

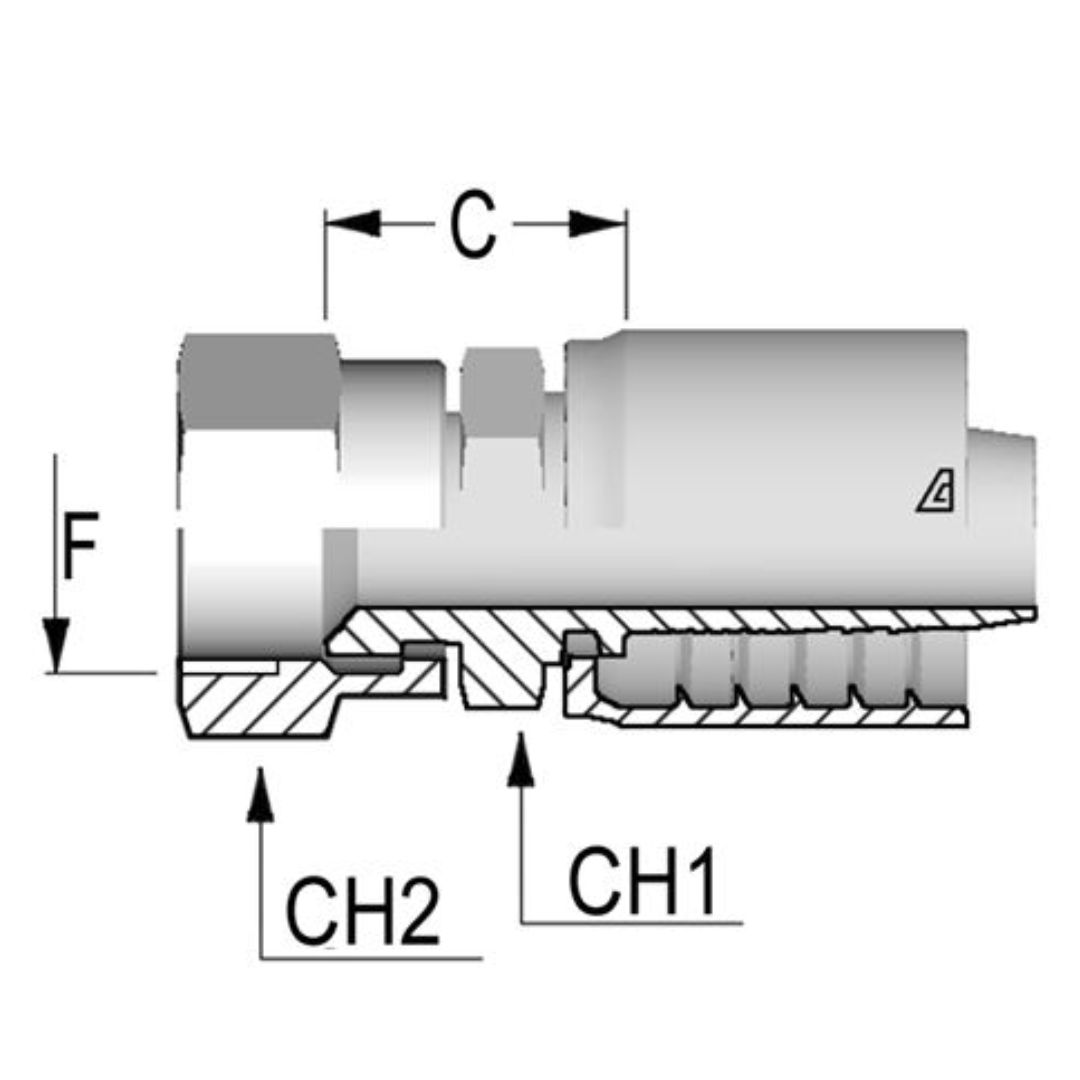

The Alfagomma One-Piece AlfaCrimp B-FJDH Fitting is a straight, carbon steel fitting designed to connect braided hoses to a female JIC (Joint Industrial Council) 37° seat with a dual hex design. This fitting uses a non-skive crimp design, meaning no part of the hose needs to be removed or prepared before installation, making the process quick and easy. A crimp fitting securely compresses the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with layers of steel wire, offering enhanced strength and resistance to high-pressure environments. The JIC female 37° seat and dual hex provide a secure, reliable connection, making this fitting ideal for fluid power systems, hose repairs, and custom hose assemblies in demanding applications.
