Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | 45-Degree |
| Fitting Style | Rigid |
| Series | B-FBO4 |
| Country of Manufacture | Italy |
| Height | 0.35 |
| Length | 4.4399999999999995 |
| Width | 0.35 |
| Weight | 0.24 |
| Side 1 Size | 5/16 (-05) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 3/8-19 (-06) |
| Side 2 Type | BSPP |
Description

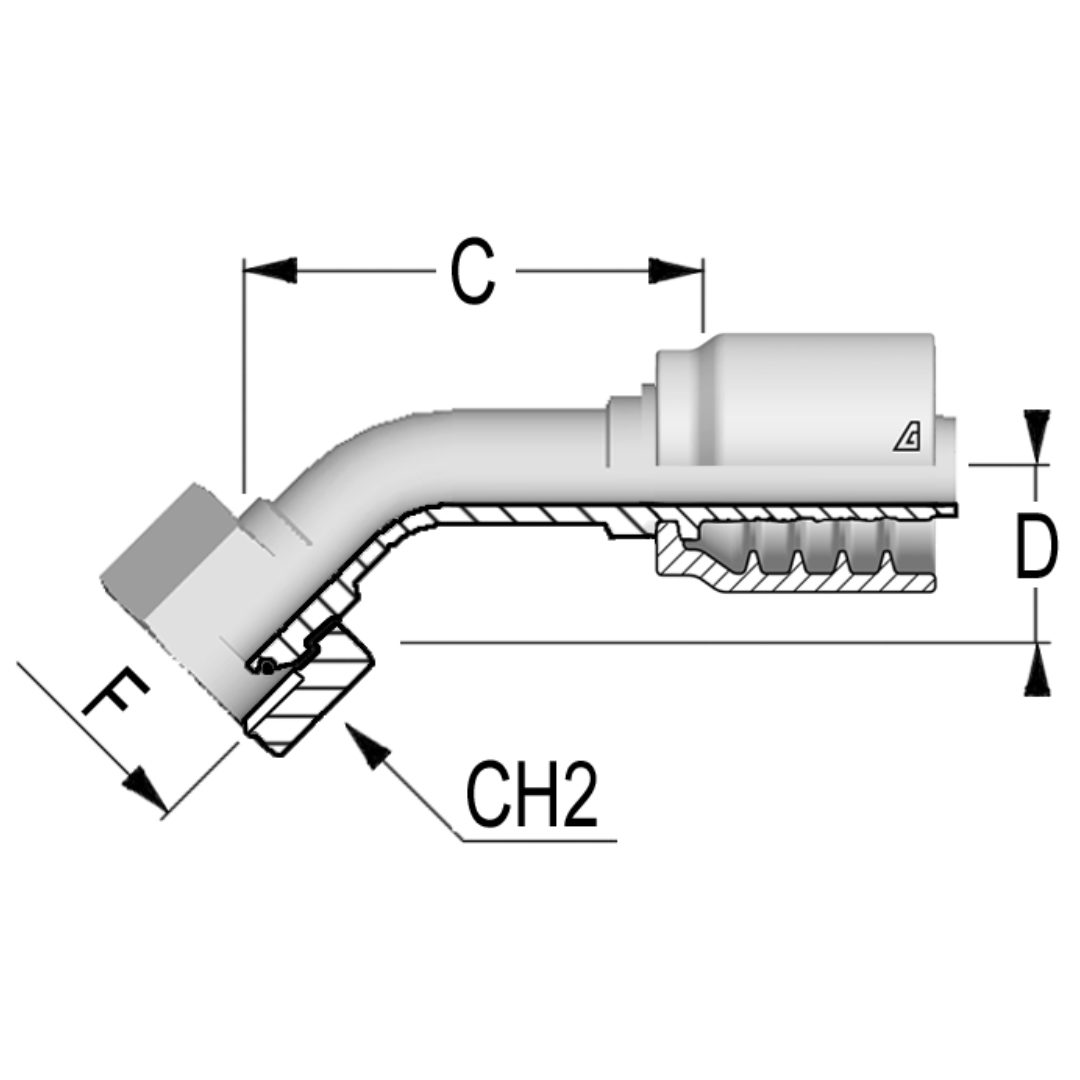

The Alfagomma One-Piece AlfaCrimp B-FBO4 Fitting is a 45-degree, carbon steel fitting designed to connect braided hoses to a 45° BSPP (British Standard Parallel Pipe) female 60° cone with an O-ring for a secure seal. This fitting uses a non-skive crimp design, meaning there's no need to remove or prepare any part of the hose before installation, which makes the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, creating a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The BSPP female 60° cone with O-ring ensures a reliable and durable connection, making this fitting ideal for fluid power systems and high-pressure applications that require a secure, long-lasting seal.
