Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Rigid |
| Series | B-MBPP |
| Country of Manufacture | Italy |
| Height | 0.25 |
| Length | 2.59 |
| Width | 0.25 |
| Weight | 0.14 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Male |
| Side 2 Size | 1/4-19 (-04) |
| Side 2 Type | BSPP |
Description

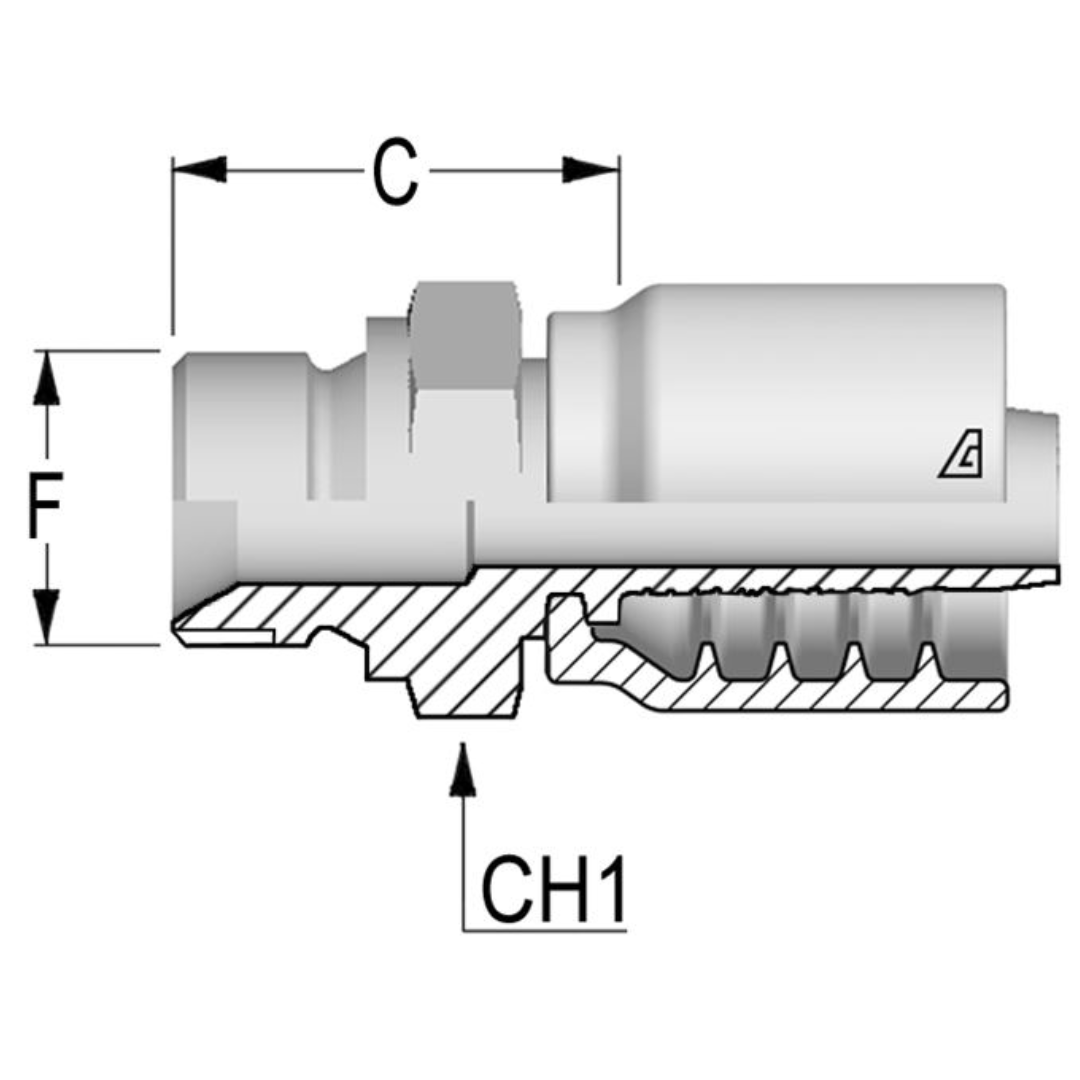

The Alfagomma One-Piece AlfaCrimp B-BSPP Fitting is a straight, carbon steel fitting designed to connect braided hoses to a BSPP (British Standard Parallel Pipe) male connection with a 60° flare. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making it faster and more convenient. A crimp fitting works by securely compressing the hose onto the fitting, creating a tight, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing added strength and resistance to pressure. The BSPP male parallel 60° flare ensures a secure, reliable connection, making this fitting ideal for fluid power systems and high-pressure applications where durability and performance are key.
