Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-FPMS |
| Country of Manufacture | Italy |
| Height | 0.25 |
| Length | 2.4 |
| Width | 0.25 |
| Weight | 0.17 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1/4-18 (-04) |
| Side 2 Type | NPSM |
Description

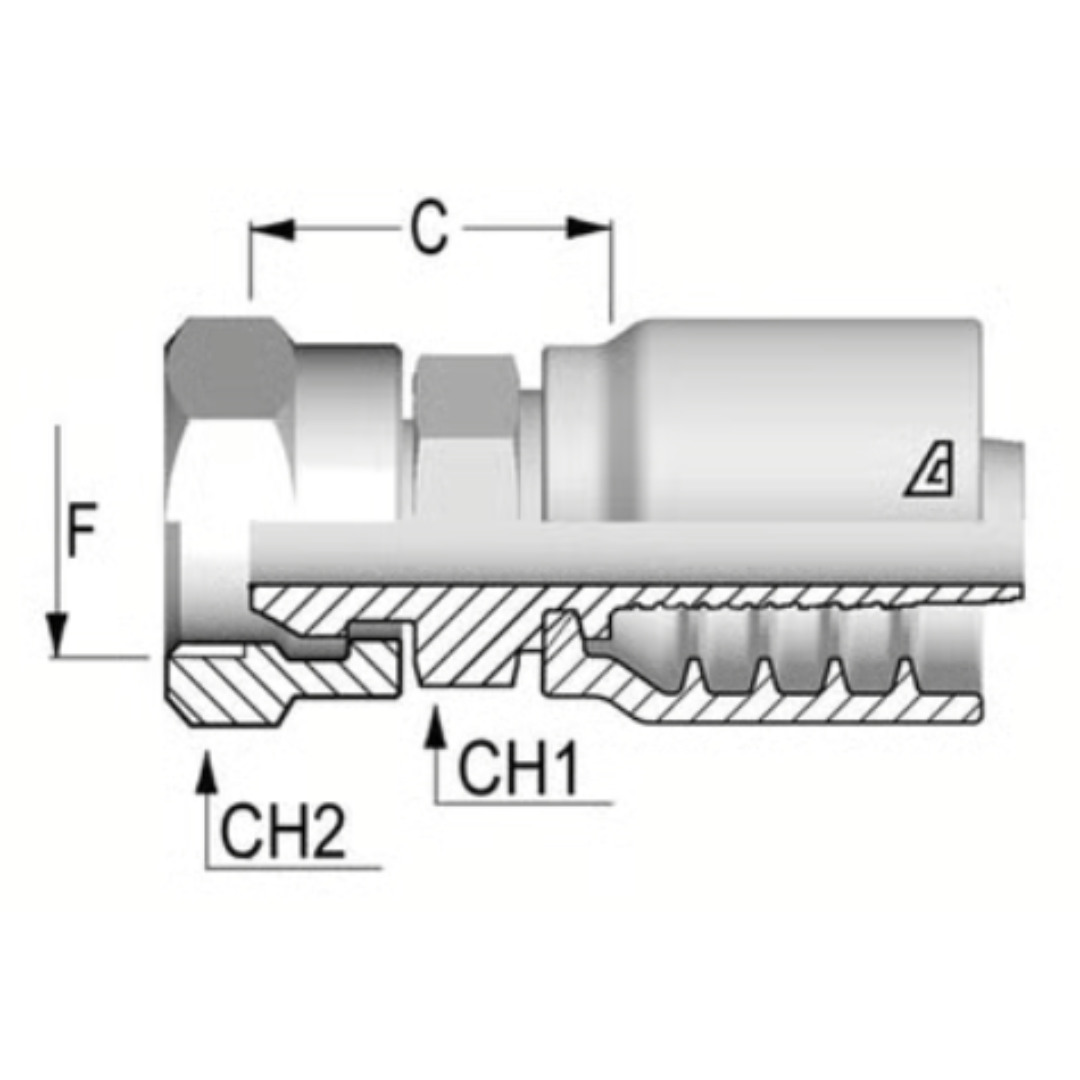

The Alfagomma One-Piece AlfaCrimp B-FPMS Fitting is a straight, carbon steel fitting designed to repair or join braided hoses, featuring a female NPSM (National Pipe Straight Mechanical) connection. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prepare any part of the hose before installation, making the process quicker and more efficient. A crimp fitting works by securely compressing the hose onto the fitting, ensuring a strong, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing enhanced strength and resistance to high pressures. The AlfaCrimp B-FPMS fitting ensures a reliable, durable connection for fluid power applications, hose repairs, and custom hose assemblies.
