Product Details
| Data Sheet | Click here to download |
|---|---|
| Usually Ships Within | 3-5 Days |
| Factory Location | Batavia, Illinois |
| Material | Steel |
| Shape | Straight |
| Fitting Style | Swivel |
| Series | B-FJIS |
| Country of Manufacture | Italy |
| Height | 0.25 |
| Length | 2.05 |
| Width | 0.25 |
| Weight | 0.16 |
| Side 1 Size | 1/4 (-04) |
| Side 1 Type | Hose |
| Side 2 Gender | Female |
| Side 2 Size | 1/4-19 (-04) |
| Side 2 Type | JIS |
Description

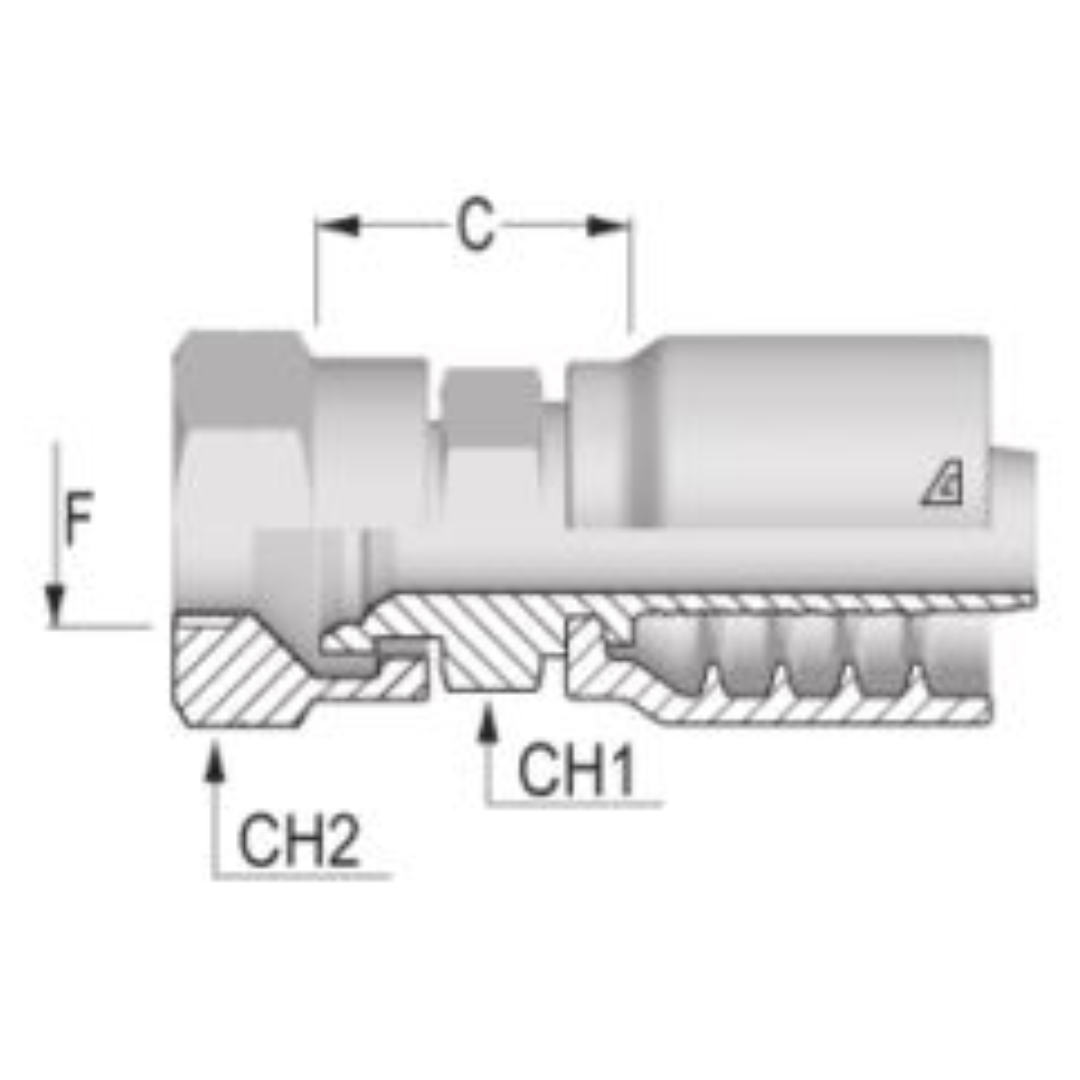

The Alfagomma One-Piece AlfaCrimp B-FJIS Fitting is a straight, carbon steel fitting designed to connect braided hoses to a JIS (Japanese Industrial Standard) female swivel connection with a 30° seat, following the B 8363 Type F specification. This fitting uses a non-skive crimp design, meaning there’s no need to remove or prep any part of the hose before installation, making the process faster and more efficient. A crimp fitting works by tightly compressing the hose onto the fitting, ensuring a secure, leak-proof connection. Braided hoses are flexible hydraulic hoses reinforced with multiple layers of steel wire, providing high strength and resistance to pressure. The JIS female swivel 30° seat ensures a reliable, durable seal, making this fitting ideal for fluid power systems and high-pressure applications that require secure, long-lasting connections.
