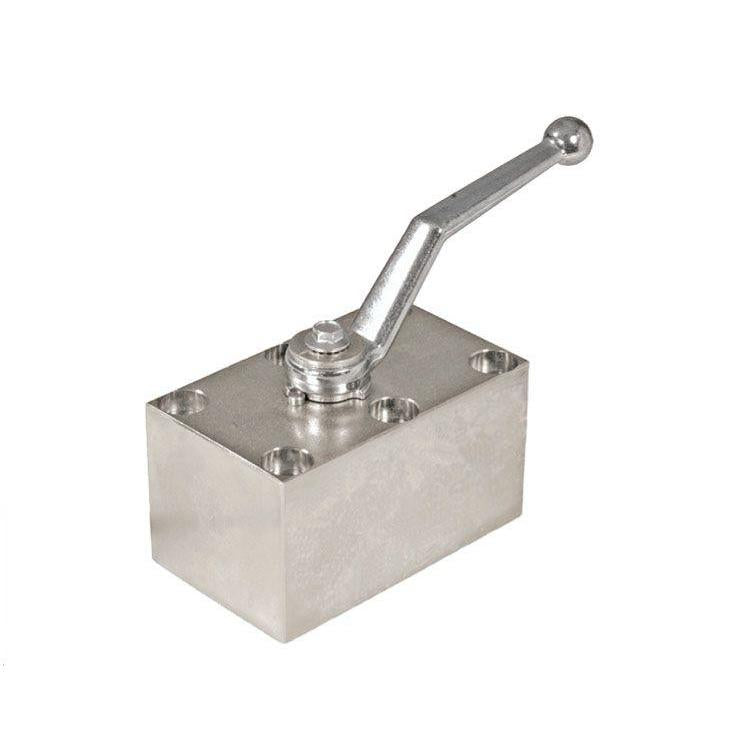

APK2#20-11DB : AFP 2-Way Manifold Mount Ball Valve, 5075psi rated, Steel, #20 SAE (1.25")
Roll over image to zoom in Click on image to zoom
APK2#20-11DB : AFP 2-Way Manifold Mount Ball Valve, 5075psi rated, Steel, #20 SAE (1.25")

APK2#20-11DB : AFP 2-Way Manifold Mount Ball Valve, 5075psi rated, Steel, #20 SAE (1.25")

Save $212.98
Anchor Fluid PowerSKU: APK2#20-11DB
5 Days
Price:
$1,109.99 $1,322.97

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Details

Data Sheet Download Datasheet
Usually Ships Within 5 Days
Factory Location Cincinnati, Ohio and Houston, Texas
Port Size #20 SAE (1.25")
Style Two-Way Manifold Mount Ball Valve
O Ring Seals Buna
Pressure Rating 5075
Body Material Carbon Steel
Series APK
Ball Seal POM
Ball Pattern On/Off
Ball Valve Pressure Range High Pressure (5000 to 9999psi)
Flow Style Two-Way
Country of Manufacture China
Height 4.88
Length 14.72
Width 3.94
Ball Valve Type Standard

Description

The Anchor Fluid Power APK Series ball valve is a two-way manifold mount carbon steel design with zinc chromate plating and is RoHS compliant.
