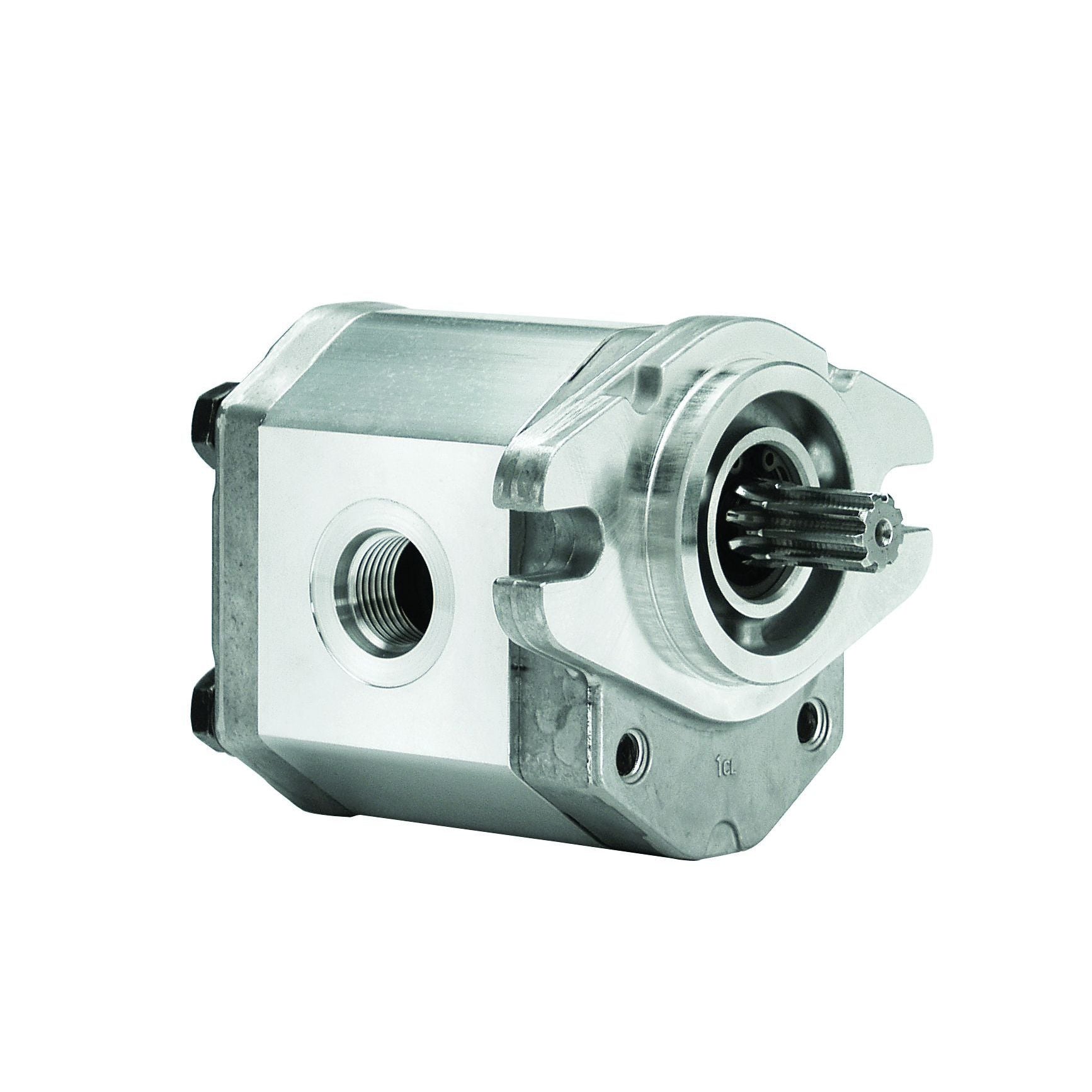

ALP3A-D-66-S1-FA : Marzocchi Gear Pump, CW, 44cc (2.684in3), 20.91 GPM, 3045psi, 2800 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13T 16/32DP, SAE B 2-Bolt Mount
Roll over image to zoom in Click on image to zoom
ALP3A-D-66-S1-FA : Marzocchi Gear Pump, CW, 44cc (2.684in3), 20.91 GPM, 3045psi, 2800 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13T 16/32DP, SAE B 2-Bolt Mount

ALP3A-D-66-S1-FA : Marzocchi Gear Pump, CW, 44cc (2.684in3), 20.91 GPM, 3045psi, 2800 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Splined Shaft 13T 16/32DP, SAE B 2-Bolt Mount

MarzocchiSKU: ALP3A-D-66-S1-FA
16-18 Weeks
Price:
$449.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 13T 16/32DP
Shaft Type Splined
Pressure Rating 3045
Rotation Clockwise
Displacement 44
Gpm At 1800 Rpm 20.91
Max Speed 2800RPM
Inlet Port #20 SAE (1.25")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Italy
Height 6.14
Length 6.85
Width 5.77

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
