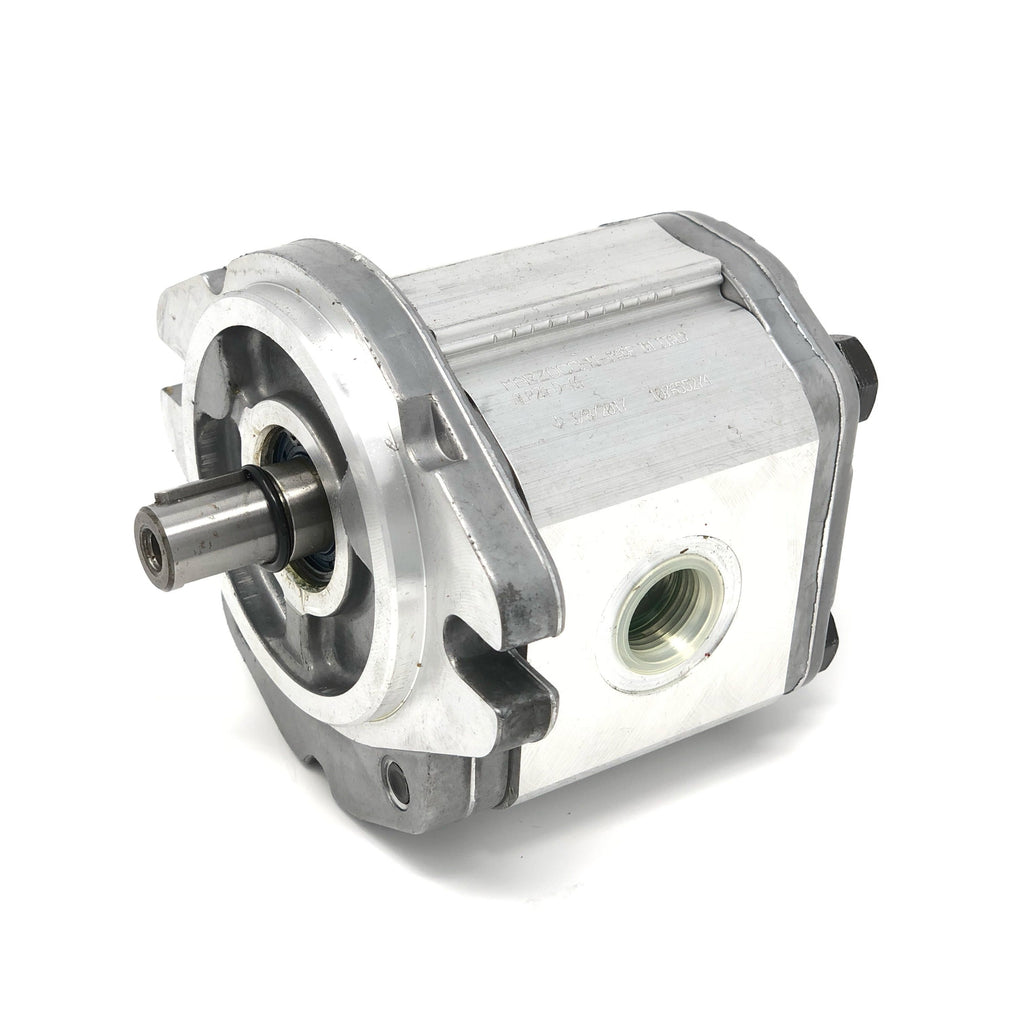

ALP3A-D-60-FA : Marzocchi Gear Pump, CW, 39cc (2.379in3), 18.54 GPM, 3190psi, 3000 RPM, #20 SAE (1.25") In, #12 SAE (3/4") Out, Keyed Shaft 7/8" Bore x 1/4" Key, SAE B 2-Bolt Mount

MarzocchiSKU: ALP3A-D-60-FA
16-18 Weeks

Price:
Sale price$449.99

Product Details

Data Sheet Download Datasheet
Usually Ships Within 16-18 Weeks
Factory Location Elgin, Illinois
Material Aluminum body, Aluminum Flange and Cover
Shaft Size 7/8" Bore x 1/4" Key
Shaft Type Keyed
Pressure Rating 3190
Rotation Clockwise
Displacement 39
Gpm At 1800 Rpm 18.54
Max Speed 3000RPM
Inlet Port #20 SAE (1.25")
Outlet Port #12 SAE (3/4")
Mount SAE B 2-Bolt
Country of Manufacture Italy
Height 6.14
Length 6.85
Width 5.65

Description

Marzocchi ALP gear pumps consist of a gear pair supported by two aluminum bushings, a body, a securing flange, and a cover. The pump body, flange, and cover are made of special high-resistant aluminum alloys for minimized deformation, even under high pressure. Gears are made of special steel which are ground and fine-finished, for an excellent surface profile. Proper tooth profile design and geometric proportions ensure low pulsation and noise levels during pump operation.
